Deublin电气滑环面临严峻的设计挑战
DEUBLIN electrical slip rings meet demanding design challenges
May 6, 2015 Jennifer Calhoon
为了满足更长、不间断使用寿命的要求,杜博林公司生产了一整套电气滑环系统。In response to demands for longer, uninterrupted service life, DEUBLIN Company manufactures a complete line of electrical slip ring systems.
滑环应用于许多工业领域,如风力涡轮机、工具机、塑料成型机、推进离心机、卷绕机、铣床、定向钻床、装卸机、拣放机、转台和机器人。
Slip rings are used in many industrial applications such as wind turbines, tooling machines, plastic molding machines, propulsion centrifuges, winding machines, milling machines, directional drilling machines, handling machines, pick-and-place machines, turntables, and robotics.
Deublin

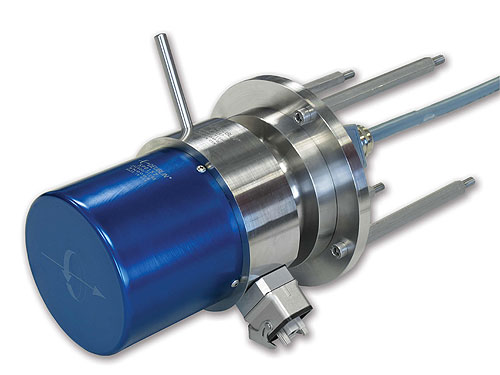

Deublin滑环采用经过数亿次循环测试和验证的特殊材料配置进行优化,这意味着多年的无故障运行具有无与伦比的性能,大大减少了停机时间和维护成本。DEUBLIN slip rings are optimized with special material configurations that are tested and proven for hundreds of millions of cycles, which translates into many years of trouble-free operation with unsurpassed performance, significantly reducing down-time and maintenance costs.
Deublin电气滑环采用灵活的工程设计,以支持独特的要求,并允许终端用户轻松更换现有的滑环品牌。Deublin根据客户应用的要求,根据各种EMI、工作温度、储存温度、加速度、机械振动和机械冲击要求设计滑环。Deublin旋转接头和滑环组合具有独特的即插即用配置,以减少安装和维护时间。
DEUBLIN electrical slip rings feature flexible engineering to support unique requirements and allow for easy replacement of existing slip ring brands by the end user. DEUBLIN designs slip rings to a variety of EMI, operating temperatures, storage temperatures, acceleration, mechanical vibration, and mechanical shock requirements as required by the customer application. DEUBLIN rotary union and slip ring combinations have a unique plug-and-play configuration to reduce installation and maintenance time.
Deublin的其他设计创新包括开发满足要求的滑环,如射频屏蔽、混合信号处理、高频阻抗匹配、降低温度产生和小型化。Other DEUBLIN design innovations include the development of slip rings that meet requirements such as RF shielding, mixed signal handling, high frequency impedance matching, reduced temperature generation, and miniaturization.
![](esr/deublin-slip-ring-1.jpg)
滑环是一种电气设备,允许将电力和电信号从静止的结构传输到旋转的结构。滑环也称为旋转电接头、集电环或电动转环,可用于任何机电系统,在传输功率和/或数据时需要无限制、间歇或连续旋转。通常,它是由石墨或金属接触刷破坏的,石墨或金属接触刷在旋转金属环的外径上摩擦。当滑环转动时,电流或信号通过固定电刷传导到进行连接的金属环。
A slip ring is an electrical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, collector or electric swivel, a slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. Typically, it is compromised of a graphite or metal contact brush which rubs on the outside diameter of a rotating metal ring. As the slip ring turns, the electrical current or signal is conducted through the stationary brush to the metal ring making the connection.
电滑环滑环应用于许多工业领域,如风力涡轮机、工具机、塑料成型机、推进离心机、卷绕机、铣床、定向钻床、装卸机、拣放机、转台和机器人。
