DEUBLIN Slip Rings杜博林电滑环
December 16, 2009 Design World Staff : 0 Comments
伊尔-杜布林公司为各种工业应用引入滑环。Deublin公司在新滑环生产线的开发中采用了与我们在旋转联盟设计中建立的相同的高质量标准,已有60多年的历史。Deublin的多功能滑环设计可轻松配置为电源连接和信号连接。滑环的信号部分设计用于与以太网、PROFINET、RS-232、RS-485、RS-422以及通用模拟或数字传感和24伏控制信号兼容。Deublin滑环非常适合各种苛刻的应用。这些滑环可用于多种用途,例如风力涡轮机、机器人、工业机械(例如纺织、装瓶和包装)、测试设备、商业显示器、起重机和起重机控制等等。
WAUKEGAN, IL—DEUBLIN Company introduces Slip Rings for a wide variety of industrial applications. Deublin Company has utilized the same high quality standards in the development of the new Slip Ring product line as we have established in our rotary union designs for over 60 years. Deublin’s versatile Slip Ring designs can be easily configured for both power connections and signal connections. The signal portion of the slip rings are designed for compatibility to Ethernet, Profinet, RS-232, RS-485, RS-422, CAN as well as generic analog or digital sensing and 24V control signals. Deublin Slip Rings are ideally suited for a variety of demanding applications. These slip rings can be used in a variety of uses such as wind turbines, robotics, industrial machinery (textile, bottling, and packaging for example), test equipment, commercial displays, crane and hoist controls just to name a few.
![](esr/deublin-slip-ring-1.jpg)
滑环是一种电气设备,允许将电力和电信号从静止的结构传输到旋转的结构。滑环可用于任何机电系统,在传输功率和/或数据时需要无限制、间歇或连续旋转。通常,滑环由石墨或贵金属刷组成,其接触旋转金属环的外径。

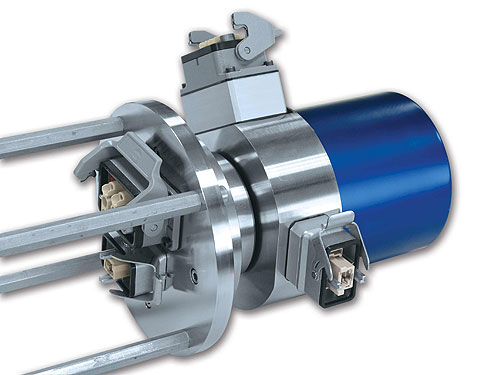

A Slip Ring is an electrical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A Slip Ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. Typically, a Slip Ring is comprised of a graphite or precious metal brush which contacts the outside diameter of a rotating metal ring.
![](esr/deublin-slip-ring-2.jpg)
当滑环转动时,电流或信号通过固定电刷传导到进行连接的金属环。如果需要一个以上的电路,则在旋转轴上堆叠额外的环/刷组件。As the Slip Ring turns, the electrical current or signal is conducted through the stationary brush to the metal ring making the connection. Additional ring/brush assemblies are stackedalong the rotating axis if more than one electrical circuit is needed.
