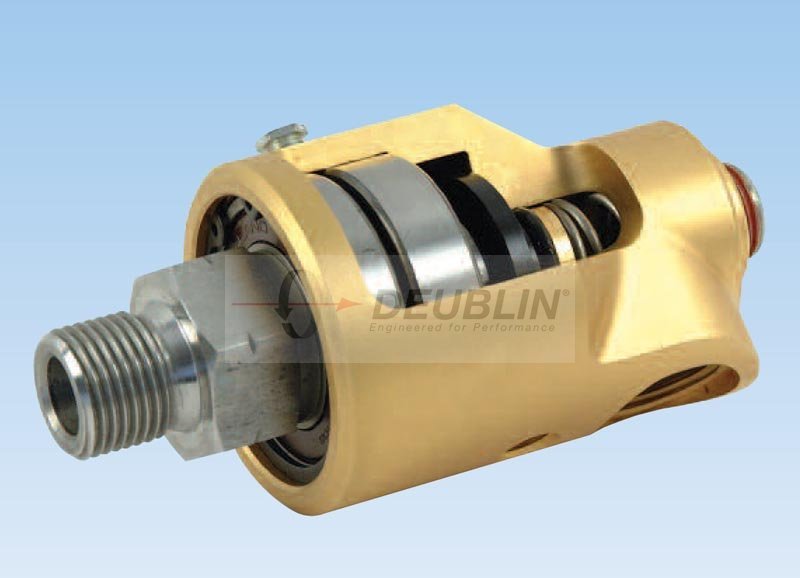

美国杜博林Deublin 57系列碳化硅密封水介质应用型旋转接头
DEUBLIN Rotating Unions 57 Series with Silicon Carbide Seals for Water Service, DN 10 - 50 (Patented)

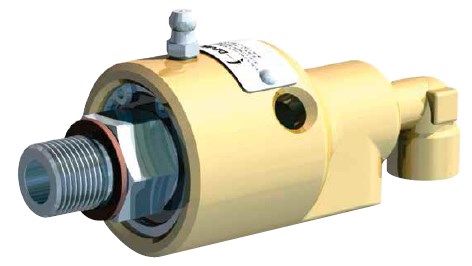

杜博林DEUBLIN 57 系列设计旋转接头是用于解决在高速管网压力下易磨损的问题。虽然其尺寸与通用型 55 系列的不相同，但其内部结构完全是进行全新设计，特点是采用了当今的超级硬密封材质。 57 系列同时具有耐磨损与超级硬密封的综合特点。 57 系序列是真正的可现场维修的接头，其独特的设计使之能够很方便地同时更换两个密封。由于 57 系列接头的耐磨性（ 2 年担保）及其相当低的维修成本，这也是解决磨损问题的最经济的方案。

Deublin 57系列碳化硅密封水介质应用型旋转接头资料下载
DEUBLIN Rotating Unions 57 Series with Silicon Carbide Seals for Water Service, DN 10 - 50 (Patented)

产品特点：

— 单通道与双通道设计
— 自带支撑旋转接头
— 径向壳体连接
— 平衡式机械密封
— 密封更换快速简单（转体密封，浮动密封）
— 键式转体密封滚珠轴承润滑延长使用寿命
— 可应用于恶劣水质（E. L.S.型）
— 3个排水口
— 锻造铜壳体
— 不锈钢转体（3/8″～1″）
— 特别可选项：螺纹排出口

水介质应用 :57 系列水介质应用型接头的特点是；在氟橡胶材料的 O 型密封环的基础上采用了碳化硅对石墨密封。实验表明，在同样的水质条件下，这种组合式密封比仅采用石墨对陶瓷的密封能延长 10 倍之多的使用寿命。 657 系列采用的是碳化钨对石墨的材料。

延长寿命型密封 :具有延长寿命型密封的 57 系列在抗磨损应用中堪称终结者。在氟橡胶材料 O 型密封环的基础上采用碳化硅对碳化硅的密封。这种密封组合比石墨对陶瓷的密封能高出 20 倍的抗磨损力。如果你现在有磨损方面的问题，请将延长寿命型密封的 57 系列接头与你现在正在使用的接头作以对比 , 就能发现这种“新一代”的接头的使用寿命会延长多久。采用延长寿命型密封的 657 型是采用碳化钨对碳化钨的密封。

接头的维修 :57 系列的设计使之能够快速容易的更换其浮动密封及转体密封。而与之不同的其他厂家的接头则其密封与转体是一整体， 57 系列的密封是位于转体端部的键式沉孔中。只需简单地取出磨损的密封，放入新的密封即可。因为不需要更换整个转体，因此可以现场快速进行维修。同时因为只需更换密封，所以大大地降低了维修成本。

- DEUBLIN Rotating Unions Operating Manual Model/Series: 54, 55 & 57

工作参数：

最大水压力	150 PSI	10 bar
最高水温度	200 ℉	93 ℃
最大 RPM NPT 螺纹型号 57-557	1500	1500//min
最大 RPM NPT 螺纹型号 657	750	750//min
最大 RPM ST 螺纹型号 57-257	3500	3500/min
最大 RPM ST 螺纹型号 357	3000	3000//min
最大 RPM ST 螺纹型号 527-557	2500	2500//min
最大 RPM ST 螺纹型号 657	750	750/min

最大水压力	150 PSI	10 bar
最高水温度	200 ℉	93 ℃
最大 RPM NPT 螺纹型号 57-557	1500	1500//min
最大 RPM NPT 螺纹型号 657	750	750//min
最大 RPM ST 螺纹型号 57-257	3500	3500/min
最大 RPM ST 螺纹型号 357	3000	3000//min
最大 RPM ST 螺纹型号 527-557	2500	2500//min
最大 RPM ST 螺纹型号 657	750	750/min

- 部分型号、尺寸（含55系列）:

B Port NPT	订货型号
55通用系列	55其他系列	57水应用	57其他系列	A Rotor Thread
3/8”	55-000-001	55-147-151	57-000-001	57-050-001	3/8”NPT RH
55-000-002	55-147-152	57-000-002	57-050-002	3/8”NPT LH
55-000-003	55-147-149	57-000-003	57-050-003	5/8”-18 UNF RH
55-000-004	55-147-150	57-000-004	57-050-004	5/8”-18 UNF LH
55-000-094	55-147-192	57-000-094	57-050-094	G3/8”(BSP)RH
55-000-095	55-147-193	57-000-095	57-050-095	G3/8”(BSP)LH
1/2”	155-000-001	55-208-113	157-000-001	157-050-001	1/2”NPT RH
155-000-002	55-208-114	157-000-002	157-050-001	1/2”NPT LH
155-000-021	55-208-185	157-000-021	157-050-021	3/4”-16UNF RH
155-000-022	55-208-229	157-000-022	157-050-022	3/4”-16UNF LH
155-000-051	55-208-252	157-000-051	157-050-051	G1/2”(BSP) RH
155-000-052	55-208-253	157-000-052	157-050-052	G1/2”(BSP) LH
3/4”	255-000-020	255-052-255	257-000-020	257-050-020	3/4”NPT RH
255-000-021	255-052-256	257-000-021	257-050-021	3/4”NPT LH
255-000-003	255-052-258	257-000-135+	257-050-135+	1”-14UNS RH
255-000-027	255-052-257	257-000-136+	257-050-136+	1”-14UNS LH
255-000-284	255-052-445	257-000-284	257-050-284	G3/4”(BSP)RH
255-000-285	255-052-446	257-000-285	257-050-285	G3/4”(BSP)RH
1”	355-000-002	355-064-186	357-000-002	357-050-002	1”NPT RH
355-000-003	355-064-187	357-000-003	357-050-003	1”NPT LH
355-000-019	355-064-328	357-000-019	357-050-019	11/2”-12 UNF RH
355-000-074	355-064-329	357-000-074	357-050-074	11/2”-12 UNF LH
355-000-222	355-064-378	357-000-222	357-050-222	G1”(BSP) RH
355-000-223	355-064-379	357-000-223	357-050-223	G1”(BSP) LH
11/4”	525-000-001	525-097-043	527-000-001	527-050-001	11/4” NPT RH
525-000-002	525-097-044	527-000-002	527-050-002	11/4” NPT LH
525-000-026	525-097-095	527-000-026	527-050-026	13/4” –12UN RH
525-000-027	525-097-096	527-000-027	527-050-027	13/4” –12UN LH
525-000-054	525-097-122	527-000-054	527-050-054	G11/4”(BSP) RH
525-000-055	525-097-123	527-000-055	527-050-055	G11/4”(BSP) LH
11/2”	555-000-001	555-033-154	557-000-001	557-050-001	11/2” NPT RH
555-000-002	555-033-160	557-000-002	557-050-002	11/2” NPT LH
555-000-395	555-033-399	557-000-395	557-050-395	2”-12UN RH
555-000-396	555-033-382	557-000-396	557-050-396	2”-12UN LH
555-000-198	555-033-288	557-000-198	57-050-198	G11/2”(BSP) RH
555-000-199	555-033-289	557-000-199	57-050-199	G11/2”(BSP) LH
2”	655-500-116	655-502-116	657-000-116	657-050-116	2”NPT RH
655-500-117	655-502-117	657-000-117	657-050-117	2”NPT LH
655-500-124	655-502-124	657-000-124	657-050-124	G2”(BSP) RH
655-500-125	655-502-125	657-000-125	657-050-125	G2”(BSP) LH

Deublin Unions

Part NumberDescriptionPart NumberDescription
157-016-738Union 157-440-125Union 1-1/2' BSP RH Rotor
157-097-125Union 157-440-125950Union Custom 57 Series
257-098-135Union 1'-14 UNF RH 157-508-201 SPECUnion Duo M20x1.5 RH
157-097CKit Repair 157-097 Series 157-516-342187Union Custom 57 Series
157-028-125Union 1/2' BSP RH 1579-000Union Deu-plex 1/2' NPT Port H
157-016CKit Repair 157-016 Series 1579-000CKit Repair 1579-000 Series
527-012-498Union 1579-035Union Deu-plex TC/C Seals Spec
357-051CKit Repair Suit 357-051 Series 1590-000Union Deu-plex 1/2' NPT Ports
527-012CKit Repair 527-012 Series 1690-000-105Union 1' BSP RH D/Passg W/o In
157-016-151Union 1/2' BSP RH 1690-000-184Union 1' NPT RH Double Passage
157-016B738Kit Rebuild Suit 157-016-738 U 17-025-023Union 5/8-18 UNF RH
157-074-125Union 1/2' BSP 17-025-041Union 3/8' NPT RH
157-074B125Kit Rebuild Suit 157-074-125 U 17-025-045Union 3/8' NPT RH Tapped Rotor
257-031-064Union 3/4' RH 17-025-046Union M16 X 2 RH
257-031B064Kit Rebuild 3/4' BSP RH 17-050CKit Repair
257-031CKit Repair 257-031 Series 17-051-039Union 1/4' NPT RH Vacuum
357-051-198Union 1' BSP RH Water Service 17-086-0235/8'-18 UNF RH
357-051B198Kit Rebuild Suit 357-051-198 17-086-039Union 3/8' BSP RH Brake Fluid
527-012B498Kit Rebuild Suit 527-012-498 U 17-086-041Union 3/8' NPT RH
6250-066-121Union 2-1/2' Water BSP RH 1790-001-112Union 1-1/4 BSP RH Dbl Passage
2620-041-252Union 2xPassg Oil/Oil 1/4 NPT 1790-001CKit Repair 1790-001 Series
6250-066-115Union 2-1/2' NPT RH 1890-063Union Deu-plex 1-1/2 BSP RH Ro
7100-498-1CUnion 6 Passage Multi-media 1890-063CKit Repair Suit 1890-063 Serie
355-000-222Union 1' BSP RH 1890-064Union Deu-plex 1-1/2 BSP RH Ro
6250-066CKit Repair Suit 6250-066 Serie 1890-116Union 1-1/2' NPT RH
1115-000-001Union 5/8'-18 UNF RH 21-001-101Union 3/4' NPT RH
555-000-198Union 1-1/2' BSP RH 21-001-109Union 1' UNS RH Air/Hydraulic
155-000-151Union 1/2' BSP RH 21-001-113Union 1/2' NPT RH
525-000-054Union 1-1/4' BSP RH 21-001-121Union M22 X 1.5 RH
657-000-124Union 2' BSP RH 21-063-1223/4 BSP RH
255-000-284Union 3/4' BSP RH 2117-005-103Union 1-14 UNS RH
1109-040-188Union M16 X 1.5 LH 2117-005CKit Repair Suit 2117-005 Serie
1129-718-480Union Less Brg Std Housing KSS 2200-000-003Union 1' 14 UNS RH
55-000-001Union 3/8' NPT RH 2200-000-027Union 1' 14 UNS LH
357-000-222Union 1' BSP RH Water Service 2200-000-096Union 1/2' NPT RH
2425-001-177Union Duo 3/4' BSP Less Siphon 2200-000-102Union 3/4' BSP RH
9200-001-121Union Quick Connect Rotor 2200-000-103Union 3/4' BSP LH
257-000-284Union 3/4' BSP RH Water Servic 2424-001-177180Union Duo 3/4'
BSP Rotor With
9150-001-117Union Quick Connect Steam Serv 2425-001-177180Union Duo 3/4'
BSP Rotor With
655-500-116Union 2' NPT RH 250-094-002Union 1-14 UNS RH Rotor
257-000-285Union 3/4' BSP LH Water Servic 250-094-012Union M22 X 1.5 RH
527-000-001Union 1-1/4' NPT RH 250-094-013Union M22 X 1.5 LH
555-000KKit Repair 555-000 Series 250-094-017Union 1-14 UNS (PT) LH
357-000-223Union 1' BSP LH Water Service 250-094-021Union 3/4' NPT LH
157-000-151Union 1/2' BSP RH Water Servic 250-094-027Union 1-14 UNS LH
55-000-094Union 3/8' BSP RH 250-094-285Union 3/4' BSP LH
357-050CKit Repair 357-050 Series 250-979-017Union 1-14 UNS LH
1115-000-205Union 3/8' BSP RH 2520-000Union Deu-plex 1/4' NPT Ports
857-000-101Union 3 Inch NPT RH 2520-033Union Deu-plex 1/4' NPT Pts A/
1115-565-002 SPECUnion SM CG/SIC 3/8' NPT RH Ro 2520-033BKit Rebuild Suit
2520-033 Unio
2117-001-103Union 1-14 UNS RH 2520-400Union Deu-plex CG/C Seals. Spe
902-141-192Union M16 X 1.5 LH 2520-400BKit Rebuild Suit 2520-400 Unio
2117-001-105Union 3/4' BSP RH 2520-401Union Deu-plex Special
155-000-152Union 1/2' BSP LH 254-051-112Union 3/4' NPT RH S/Steel
755-732-330139Union CG/C 2-1/2' BSP RH 254-051B112Kit Rebuild Suit
254-051-112 U
755-732-411139Union CG/C 2-1/2' BSP LH 255-000-003Union 1'-14 UNS RH
250-094-020Union 3/4' NPT RH 255-000-015Union M35 X 1.5 LH
655-500KKit Repair Suit 655-500 Series 255-000-021Union 3/4' NPT LH
155-000KKit Repair 155-000 Series 255-000-027Union 1'-14 UNS LH
157-000CKit Repair 157-000 Series 255-000B285Kit Rebuild Suit 255-000-285
U
755-700-415Union 2-1/2' NPT LH 255-012-016Union 1'-14 UNS RH PT RTR CG/C
355-000-019Union 1-1/2' - 12 UNF RH 255-019-487Union TC/C M22 X 1.5 RH Pt
Rot
1690-000-168Union 1' BSP RH D/Passg With I 255-019B487Kit Rebuild Suit
255-019-487 U
525-000-055Union 1-1/4' BSP LH 255-026-020Union 3/4' NPT RH
555-000B765 Kit Rebuild Suit 555-000-765 U 255-026B020Kit Rebuild Suit
255-026-020 U
9200-029-117Union 2' BSP RH Steam Service 255-026B284Kit Rebuild Suit
255-026-284 U
355-000-002Union 1' NPT RH 255-052-255Union 3/4' NPT RH ELS Seals
557-000-198Union 1-1/2' BSP RH Water Serv 255-052-446Union 3/4' BSP LH ELS
Seals
1116-090-059Union 5/8'-18 UNF LH 255-052B445Kit Rebuild Suit 255-052-445 U
527-000-054Union 1-1/4' BSP RH Water Serv 255-075Elbow Duoflow 1/2' Fixed
Suppl
55-000-002Union 3/8' NPT LH 255-156-020Union 3/4' NPT RH
57-000-094Union 3/8' BSP RH 255-156-021Union 3/4' NPT LH
250-094-284Union 3/4' BSP RH 255-156-284Union 3/4' BSP RH Rotor CG/C S
355-000KKit Repair Suit 355-000 Series 255-229-015Union M35 X 1.5 LH
6200-002-137Union 2' BSP RH Duoflow 255-296-258Union TC/C 1'-14 UNS RH
857-002CKit Repair To Suit Union 857-0 255-296B258Kit Rebuild Suit
255-296-258 U
1109-011-165Union 5/8'-18UNF LH 255-334B996Kit Rebuild 255 Series
902-120-188Union M16 X 1.5 LH 90 Degree. 255-371-996206Union Duoflow
Flanged Mount Ro
555-000-201Union M50 X 1.5 LH 257-000-014Union M35 X 1.5 RH
468-100Union 3 Passage Water Union 257-000-015Union M35 X 1.5 LH
255-000-285Union 3/4' BSP LH 257-000-021Union 3/4' NPH LH
1690-000-115Union 1' NPT RH D/Passg With I 257-000-023Union M25 X 1.5 RH
1005-000-049Union 1/4' BSP RH Shaft Mount 257-000-025Union M25 X 1.5 LH
857-001-118Union 3' BSP RH T/II Duoflow F 257-000-027Union 1'-14 UNS LH
557-050-198Union 1-1/2' BSP RH ELS 257-000-135Union 1'-14 UNS RH
355-000-223Union 1' BSP LH 257-000-136Union 1'-14 UNS LH
1102-070-029Union 5/8'-18 UNF RH 257-000-263Union 1' X UNS RH
257-050-284Union 3/4' BSP RH 257-000-264Union 1' X UNS LH
57-000-002Union 3/8' NPT LH 257-000-284368Union 3/4' BSP RH
1890-100Union Deu-plex 1-1/2 NPT RH Ro 257-000B003Kit Rebuild Suit
257-000-003 U
555-033-160 SPECIUnion 1-1/2' NPT LH ELS Seals 257-045-284Union 3/4' BSP
RH Rotor
357-000CKit Repair 357-000 Series 257-045-285Union 3/4' BSP LH Rotor
555-000-199Union 1-1/2' BSP LH 257-050-285Union 3/4' BSP LH
1005-165-061Union Viton O-Ring 257-050CKit Repair 257-050 Series
755-700-413Union 2-1/2' NPT RH 257-076CKit Repair 257-076 Series
157-000-022Union 3/4'-16 UNF LH 257-130-284Union 3/4' BSP RH Rotor 3/4' B
1500-000Union Deu-plex 3/8' NPT Ports 264-100Union Less Flange
255-000-020Union 3/4' NPT RH 350-084Elbow Duoflow 1/4' NPT Fixed S
9150-001B117Kit Rebuild Suit 9150-001-117 350-163Elbow Duoflow 0.625' Tube
1109-410-248Union M16 X 1.5 350-221-222Union 1' BSP RH
55-000KKit Repair 55-000 Series 350-255Elbow Duoflow 3/8' BSP Fixed S
55-000-003Union 5/8' UNF RH 355-000-003Union 1' NPT LH
655-500-124Union 2' BSP RH 355-000-074Union 1-1/2' - 12 UNF LH
257-000-020Union 3/4' NPT RH 355-000-235Union M35 X 1.5 RH
1205-000-151Union 1/2' BSP RH 355-000-236Union M35 X 1.5 LH
2520-170BKit Rebuild Suit 2520-170 Unio 355-000B019Kit Rebuild Suit
355-000-019
655-502B116Kit Rebuild Suit 655-502-116 U 355-000B074Kit Rebuild Suit
355-000-074 U
755-700CKit Repair Suit 755-700 Series 355-012-378Union 1' BSP RH TC/C
555-000-001Union 1-1/2' NPT RH 355-012-379UNION 1' BSP LH TC/C
257-000CKit Repair Suit 257-000 Series 355-021-003Union CG/C 1.0' NPT LH
17-025-039Union 3/8' BSP RH Air/Hydrauli 355-021-016Union 1 1/2-12 UNF
Pilot RH
157-050-021012Union SIC/SIC 3/4-16 UNF RH EL 355-021-223Union 1' BSP LH
555-000B001Kit Rebuild Suit 555-000-001 U 355-021-235Union M35 X 1.5 RH
255-052-445Union 3/4' BSP RH ELS Seals 355-021B002Kit Rebuild Suit
355-021-002 U
55-147-193Union TC/C 3/8' BSP LH 355-021B019Kit Rebuild Suit 1-1/2' 12 UNF
57-000-095Union 3/8' BSP LH 355-021KKit Repair 355-021 Series
55-000-095Union 3/8' BSP LH 355-038B222Kit Rebuild Suit 355-038-222 U
1205-000-021Union 3/4' BSP RH 355-038B223Kit Rebuild Suit 355-038-223 U
557-000CKit Repair 557-000 Series 355-062-222Union 1' BSP RH CG/C
1590-000CKit Repair 1590-000 Series 355-064-186Union TC/C 1' NPT RH
9200-029B117Kit Rebuild Suit 9200-029-117 355-064-378Union TC/C 1' BSP RH
1102-070-103Union 1/4' BSP RH 355-204B222Kit Rebuild Suit 355-204-222 U
1690-000CKit Repair 1690-000 Series 355-215-378Union 1' BSP RH 1' BSP B
Port
655-502-116Union 2' NPT RH. ELS 355-308B222Kit Rebuild
54-051-112Union 3/8' NPT RH SS ELS 355-317-317Union 1' BSP RH
357-050-019Union 1-1/2' X 12 UNF RH ELS 355-331-074Union CG/C 1-1/2-12 UNF
RH
255-000KKit Repair Suit 255-000 Series 355-331B019Kit Rebuild Suit
355-331-019 U
2117-001-109Union 3/4' NPT RH 355-331B074Kit Rebuild Suit 355-331-074 U
557-000-199Union 1-1/2' BSP LH 355-347Elbow Duoflow Rotating Supply
525-637-054Union CG/C 1-1/4' BSP RH High 357-000-002Union 1' NPT RH
9100-001-103Union 1' NPT RH 357-000-003Union 1' NPT LH
1115-000-200Union M16 X 2 RH 357-000-019Union 1-1/2' X 12 UNF RH
357-000-235Union M35 X 1.5 RH 357-000-074Union 1-1/2' X 12 UNF LH
1129-036-301Union Pop Off M16 X 1.5 LH W/1 357-000-198Union 1' BSP RH
857-001CKit Repair 857-001 Series 357-000-236Union M35 X 1.5 LH
1790-001-113Union 1-1/4' NPT RH Dble Passa 357-000B002Kit Rebuild Suit
357-000-002 U
1790-001-114Union 1-1/4' BSP RH Dble Passa 357-000B222Kit Rebuild Suit
357-000-222 U
9150-001-104Union 1-1/2' NPT LH Steam Serv 357-000B223Kit Rebuild Suit
357-000-223 U
1890-060Union Deu-Plex 1-1/2' BSP RH 2 357-130-222Union 1' BSP Special
1005-163-037Union M10x1 RH Special For Air 450-144Elbow Duoflow 1.005'
Rotat. Su
21-001-122Union 3/4' BSP RH 452-000-001Union 1-1/2 NPT RH Rotor Air S
9100-020-220Union 1' NPT RH Hot Oil Servic 452-000-002Union 1-1/2' NPT LH
9100-020-221Union 1' NPT LH Hot Oil Servic 452-000-029Union 1-3/4' - 12 UN
RH
355-021-222Union 1' BSP RH 452-000-198Union 1-1/2' BSP RH
1005-020-049Union 1/4' BSP RH 452-000-199Union 1-1/2' BSP LH
155-139-151Union CG/C 1/2' BSP RH 452-000B198Kit Rebuild Suit 452-000-198
U
555-000B199Kit Rebuild Suit 555-000-199 U 452-000B199Kit Rebuild Suit
452-000-199 U
902-225-101Union Rotating 12mm Pilot 452-001-198Union With K Port 1-1/2'
BSP R
1139-020-116Union Bearingless Popoff M16x1 455-030-399Union TC/C 2'-12 UNC
RH
157-000B022Kit Rebuild Suit 157-000-022 U 455-030B399Kit Rebuild Suit
455-030-399 U
902-121-188Union M16X1.5 LH Straight Thru 455-069-538Union TC/TC 2'-12 UNC
RH
527-050-054Union ELS 1-1/4' BSP RH 464-200Union 3 Passage Special
1116-048-463Union M16 X 1.5 LH 468-100CKit Repair Suit 468-100 Series
157-050-151Union 1/2' BSP RH SIC/SIC ELS 500-023-395Union 2-12 UN RH
1005-095-045Union M10 X 1 RH With 500-023-396Union 2-12 UN LH
1500-000CKit Repair 1500-000 Series 500-023B395Kit Rebuild Suit
500-023-395 U
527-000-055Union 1-1/4' BSP LH 500-023B396Kit Rebuild Suit 500-023-396 U
2117-001CKit Repair Suit 2117-001 Serie 500-039-395Union 2'-12 UN RH
555-000-002Union 1-1/2' NPT LH 525-000-001Union 1-1/4' NPT RH
1005-020-038Union 1/8' NPT RH 525-000-002Union 1-1/4' NPT LH
1101-338-259Union M16 X 1.5 LH 525-000-026Union 1 3/4'-12 UN RH Special
250-094-016Union 1-14 UNS (PT) RH 525-000B001Kit Rebuild Suit 525-000-001
U
17-058-056Union Car Wash 3/8' NPT RH 525-000B054Kit Rebuild Suit
525-000-054 U
1116-048-059Union Sic/Sic 5/8'-18 UNF LH 525-042-122Union 1-1/4 BSP RH
Monoflow
1116-090-143Union M16 X 1.5 LH 525-079Elbow Duoflow 1/2' BSP Fixed S
557-000-001Union 1-1/2' NPT RH 525-086-054Union 1-1/4' BSP RH Special
557-000-002Union 1-1/2' NPT LH 525-086-055Union CG/C 1-1/4' BSP LH
1115-130-002Union SM 3/8' NPT RH 525-086B054Kit Rebuild Suit 525-086-054
U
357-050-222Union 1' BSP RH 525-086B055Kit Rebuild Suit 525-086-055 U
1117-002-116Union M16 X 1.5 LH 525-097-122Union 1-1/4' BSP RH ELS
17-025-012Union 5/8'-UNF RH Air/Hydrauli 525-097-123Union 1-1/4' BSP LH
ELS
1890-116CKit Repair 1890-116 Series 525-104Elbow Duoflow 3/4' Fixed Suppl
155-000-001Union 1/2' NPT RH 525-237Elbow Duoflow
357-050-223Union 1' BSP LH 525-301-054Union 1-1/4' BSP RH B-Port 1-1
6075-001CKit Repair Suit 6075-001 Serie 525-301-438Union 1-1/4' BSP RH
B-Port 1-1
1005-020-019Union 3/8'-24 UNF RH 525-301B054Kit Rebuild Suit 525-301-054 U
157-000-152Union 1/2' BSP LH Water Servic 525-583B712Kit Rebuild Suit
525-583-712 U
525-000KKit Repair Suit 525-000 Series 525-608-054Union 1-1/4' BSP RH
9150-001-103Union 1-1/2' NPT RH Steam Serv 527-000-002Union 1-1/4' NPT LH
9150-406 9125+915Elbow Duoflow 1/2' BSP Fixed S 527-000-026Union 1-3/4'-12
UNF RH
2117-005-109251Union 3/4' NPT RH 527-000-027Union 1-3/4'-12 UNF LH
257-050-012Union M22 X 1.5' RH 527-000B054Kit Rebuild Suit 527-000-054 U
525-189-031Union 1-3/4' 12 UN RH PT Rotor 527-000CKit Repair Suit 527-000
Series
1379-160CKit Repair 1379-160 Series 527-050-001Union 1-1/4' NPT RH ELS
1205-000-001Union 1-14 UNS RH 527-050B001Kit Rebuild Suit 527-050-001 U
1116-090-463Union M16 X 1.5 LH 54-050-178Union 3/8' BSP RH SS
555-468Elbow Duoflow 25.9 Rotating Su 55-000-004Union 5/8' - 18 UNF LH
555-013Elbow Duoflow Fixed Supply 3/4 55-000B001Kit Rebuild Suit
55-000-001 Un
9150-402 9125+915Elbow Duoflow 1/2' Rotating Sy 55-000B094Kit Rebuild Suit
55-000-094 Un
355-000B002Kit Rebuild Suit 355-000-002 U 55-000B095Kit Rebuild Suit
55-000-095 Un
555-000B198Kit Rebuild Suit 555-000-198 U 55-041-094Union 3/8' BSP RH
1102-070-078Union 5/8' UNF RH 55-041-095Union 3/8' BSP LH SM
D25-004-214Union 1' NPT RH Rotor 55-041B094Kit Rebuild Suit 55-041-094 Un
255-368Elbow Duoflow 1/4' BSP Fixed S 55-041B095Kit Rebuild Suit
55-041-095 Un
355-000B222Kit Rebuild Suit 355-000-222 U 55-120Elbow Duoflow M6X1 Fixed
Suppl
355-064B378Kit Rebuild Suit 355-064-378 U 55-147-152Union 3/8' NPT LH TC/C
Seals
9150-001B103Kit Rebuild Suit 9150-001-103 55-147-192Union TC/C 3/8' BSP LH
6100-017CKit Repair Suit 6100-017 Serie 55-147B193Kit Rebuild Suit
55-147-193 Un
555-000B002Kit Rebuild Suit 555-000-002 U 55-655B094Kit Rebuild Suit
55-655-094 Un
355-021-002Union 1' NPT RH 555-000-200Union M50 X 1.5 RH
355-021-019Union 1-1/2'-12 UNF RH 555-000-395Union 2'-12 UN RH
1115-000-017Union 5/8'-18 UNF LH 555-000-533Union Quick Connect Rotor
155-012Elbow Duoflow 1/8' NPT Fixed S 555-000-765Union FLG 3.93 OD
2117-005-105Union 3/4' BSP RH 555-016-311Union M50 X 1.5 RH
1005-113-332Union 1/8' NPT Female Rotor 555-033-154Union 1-1/2' NPT RH ELS
Seals
1005-000-001Union 1/8' Tap 90 Shaft Mount 555-033-288Union 1-1/2' BSP RH
527-000B001Kit Rebuild Suit 527-000-001 U 555-033-289Union 1-1/2' BSP LH
57-000-001Union 3/8' NPT RH 555-033B154Kit Rebuild Suit 555-033-154 U
255-000B284Kit Rebuild Suit 255-000-284 U 555-033B288Kit Rebuild Suit
555-033-288 U
6100-001CKit Repair Suit 6100-001C Seri 555-033B289Kit Rebuild Suit
555-033-289
257-000-003Union 1-1/4' UNS RH Rotor CG/S 555-037-198Union 1-1/2' BSP RH
Union
1890-100CKit Repair 1890-100 Series 555-037-199Union 1-1/2' BSP LH
1005-113-063Union 1/8' NPT RH Rotor 555-037B198Kit Rebuild Suit
555-037-198 U
255-056-284Union CG/C 3/4' BSP RH Rotor 555-037B199Kit Rebuild Suit
555-037-199 U
255-000-012Union M22 X 1.5 RH PT Rotor 555-058B198Kit Rebuild
350-083Elbow Duoflow 3/8' NPT Fixed S 555-385B198Kit Rebuild Suit
555-000-198 U
1205-000-002Union 1-1/4' UNS LH 555-459B911Kit Rebuild Suit 555-459-911 U
55-000B002Kit Rebuild Suit 55-000-002 Un 555-459B912Kit Rebuild Suit
555-459-912 U
1890-060CKit Repair 1890-060 Series 557-000-200Union M50 X 1.5 RH
57-000CKit Repair Suit 57-000 Series 557-000-201Union M50 X 1.5 LH
155-000-002Union 1/2' NPT LH 557-000-395Union 2'-12 UN RH
2200-000CKit Repair To Suit Union 2200- 557-000-396Union 2'-12 UN LH
21-001CKit Repair Suit 21-001 Series 557-045-198Union 1-1/2' BSP RH
155-950Elbow 10mm X 313mm 557-045-199Union 1-1/2' BSP LH
1115-000-002Union 3/8 NPT RH 557-050-199Union 1-1/2' BSP LH ELS
255-043Elbow Duoflow 1/4' NPT Fixed S 557-050B198Kit Rebuild Suit
557-050-198 U
155-000-021Union 3/4' UNF RH 557-050B199Kit Rebuild Suit 557-050-199 U
55-637-094Union 3/8' BSP RH 557-050CKit Repair Suit 557-050 Series
250-094KKit Repair 250-094 Series 57-000-003Union 5/8' - 18 UNF RH
55-030Elbow Duoflow 1/4' Fixed Suppl 57-000-004Union 5/8' - 18 UNF LH
155-061Elbow Duoflow 3/8' Rotating Su 57-050-001Union 3/8' NPT RH ELS
525-007Elbow Duoflow 1/2' NPT Fixed S 57-050-003Union 5/8' - 18 UNF RH ELS
17-025CKit Repair 17-025C Series 57-050-094Union 3/8' BSP RH ELS
9100-400Elbow Duoflow 1/4' NPT Fixed S 57-050CKit Repair Suit 57-050
Series
555-221Elbow Duoflow 3/4' Fixed Suppl 6037-001-101Union 5/8' - 18 UNF RH
AP10-010-210Union 3/8' BSP RH AP Series 6037-001-102Union 5/8' - 18 UNF LH
AP10-011-214Union 3/8' NPT RH AP Series 6037-001-116Union 3/8' NPT RH
AP12-010-210Union 1/2' BSP RH AP Series 6037-001-117Union 3/8' NPT LH
AP8-010-210Union 1/4' BSP. RH AP Series 6037-001-125Union 3/8' BSP RH
C15D-004-02-3AUnion HPS Steam Service 6037-001CKit Repair Suit 6037-001
Serie
C15D-004CKit Repair HPS Union 6037-021-125Union 3/8'-19 BSP RH
D10-004-214Union 3/8' NPT RH. D Series 6075-001-132Union 3/4' BSP RH
D12-003-210Union 1/2' BSP RH Rotor 6075-001-133Union 3/4' BSP LH
D12-004-214Union 1/2' NPT RH Rotor 6075-001-134Union 1/2' NPT RH
D20-003-210Union 3/4' BSP RH D Series 6075-001-135Union 1/2' NPT LH
D25-003-210Union 1' BSP RH D Series 6075-029-136Union 1/2' BSP RH
D32-003-210Union 1-1/4' BSP RH D Series 6075-029CKit Repair Suit 6075-029
Serie
D32-004-214Union 1' NPT RH. D Series 6075-031CKit Repair Suit 6075-031
Serie
N10-020-210Union. 3/8' BSP RH 6100-001-101Union 1' NPT RH
N10-020-214Union 3/8' NPT RH Steam Servic 6100-001-102Union 1' NPT LH
N10-020B214Kit Rebuild Suit N10-020B214 6100-001-121Union 1' BSP RH CG/C
N12-020-210Union 1/2' BSP RH Monoflow Ste 6100-001-122Union 1' BSP LH
N12-023-211701Union 1/2' BSP LH Duoflow Hot 6100-001-123Union 1-1/2' - 12
UNF RH
N12-023B211Kit Rebuild 1/2' BSP LH Hot Oi 6100-017-101Union 1' NPT RH TC/C
Seals
1005-000-019Union 3/8'-24 UNS RH Shaft Mou 6100-017-123Union 1-1/2' - 12
UNF
1005-000-037Union M10 RH Shaft Mount 6200-001-123Union Water 2' NPT RH
Monoflow
1005-000-038Union 1/8' NPT RH Shaft Mount 6200-001CKit Repair Suit
6200-001 Serie
1005-000B001Kit Rebuild Suit 1005-000-001 6200-002-115Union Duoflow 9'
Flange Rotor
1005-020-037Union M10 X 1 RH 6200-002-139Union 2' BSP LH Duoflow
1005-020-039Union 3/8'-24 UNF LH 6200-002CKit Repair Suit 6200-002 Serie
1005-020-061Union 5/8'-18 UNF RH 6250-001CKit Repair Suit 6250-001 Serie
1005-020B019Kit Rebuild Suit 1005-020-019 6250-002-300Union Duo 9' Flange
1005-020B049Kit Rebuild Suit 1005-020-049 6250-002CKit Repair Suit
6250-002 Serie
1005-057-019Union 3/8' UNS RH Hi Press Sea 6250-018-121Union 2-1/2' BSP RH
1005-057-049Union 1/4' BSP RH Hi Press Sea 6250-030-121Union Duoflow
2-1/2' BSP RH EL
1005-057-157158 SUnion Hi Press Seal 9/16 SAE R 6250-030CKit Repair Suit
6250-030 Serie
1005-113-110Union 5/16'-24 UNF RH 6250-111Cap End Suit 6250-030-121 'spe
1005-130-038Union 1/8' NPT RH Rotor 6300-001CKit Repair Suit 6300-001
Serie
1005-163B037Kit Rebuild M10x1 RH 6300-002CKit Repair Suit 6300-002 Serie
1005-220-038Union 1/8' NPT RH Rotor 6300-040-103Union ELS Duo Fixed Siphon
Fla
1101-235-236Union 5/8'-18 UNF LH .625 SIC/ 6300-040CKit Repair Suit
6300-040 Serie
1101-235-238Union 5/8'-18 UNF LH .655 6300-125Elbow Duoflow Fixed Pipe
Type
1101-235-259Union M16 X 1.5 LH 16mm SIC/SI 6400-031CKit Repair Suit
6400-031 Serie
1101-235-343Union M16 X 1.5 LH 18mm Pilot 6400-048CKit Repair Suit
6400-048 Serie
1101-235B238Kit Rebuild Suit 1101-235-238 655-000KKit Repair Suit 655-000
Series
1102-025-001004 9Union CG/TS 1/4' NPT B Port 1/ 655-500-117Union 2' NPT LH
1102-025-005Union 1/4' NPT Tap In Shaft 655-500-125Union 2' BSP LH
1102-025B001Kit Rebuild Suit 1102-025-0010 655-515-124Union 2' BSP RH Air
Service Sp
1102-070-079Union 5/8' - 18 UNF LH 657-000-116Union 2' NPT RH
1102-070-081Union 1/4' NPT RH 657-000-117Union 2' NPT LH
1102-070-082Union 1/4' NPT LH 657-000-125Union 2' BSP LH
1102-070-104Union 1/4' BSP LH 657-000CKit Repair Suit 657-000 Series
1102-070-166Union 35mm FLG (29F) 657-050-124Union 2' BSP RH Rotor
1102-070B029Kit Rebuild Suit 1102-070-029 657-050B124Kit Rebuild ELS 2'
BSP RH
1102-070B078Kit Rebuild Suit 1102-070-078 755-117Elbow Duoflow 2 X 1-1/4'
NPT 9
1102-070B079Kit Rebuild Suit 1102-070-079 755-700-330Union 2-1/2' BSP RH
1102-070B082Kit Rebuild Suit 1102-070-082 755-700-411Union 2-1/2' BSP LH
1108-001-102Union 5/8'-18 UNF LH PLT 755-700-413117Union 2-1/2' NPT RH
Duoflow
1109-010-165Union 5/8'-18 UNF LH 755-701-330117Union TC/C 2.5' BSP RH
Rotor
1109-010-188Union M16 X 1.5 LH 755-701B330Kit Rebuild 2-1/2' BSP RH Roto
1109-021-188Union M16 X 1.5 LH Coolant Ser 755-701CKit Repair Suit 755-701
Series
1109-021-192Union M16 X 1.5 LH 755-702B413Kit Rebuild
1109-023-212Union M16 X 1.5 LH 755-707-411Union 2 1/2' BSP LH Rotor
1109-024-212Union M16 X 1.5' LH 755-707B411Kit Rebuild Suit 755-707-411 U
1109-040-388Union 3/8' 90 Degree End Cap 755-713B495Kit Rebuild Suit 755
Series Un
1109-041-192Union M16 X 1.5 LH 755-731-330139Union Rotating 2-1/2' BSP RH
1109-043-412Union M16 X 1.5 LH 755-732B411Kit Rebuild Suit 755 Series Un
1109-044-220Union M16 X 1.5 LH 755-747CKit Repair
1109-640-644Union Pop-Off Coolant Service 755-788CKit Repair
1115-000B001Kit Rebuild Suit 1115-000-001 857-000CKit Repair 857-000
Series
1115-000B017Kit Rebuild Suit 1115-000-017 857-001-119Union 3' BSP LH T/II
Duoflow F
1115-009-386Union CG/SIC 5/8-18 UNF LH Rot 857-020CKit Repair 857-020
Series
1115-130-017Union SM 5/8'-18 UNF LH Rotor 902-111-165Union 5/8'-18 UNF LH
.655 PLT
1115-179-345Union 5/8'-18 UNF RH 902-111-192Union M16 X 1.5 LH
1116-020-248Union 3/8' NPH RH 902-120-101Union. Coolant
1116-048-043Union Sic/Sic 5/8'-18 UNF RH 902-131-217Union 12mm Male Pilot
1116-048-051Union 5/8' UNF LH 902-225-104Union Coolant
1116-048-064Union 5/8'-18 UNF RH 9075-001-106Union 3/4' NPT RH
1116-048-143Union M16 X 1.5 LH PLT 9075-001-107Union 3/4' NPT LH
1116-048B051Kit Rebuild Suit 1116-048-051 9075-001B106Kit Rebuild Suit
9075-001-106
1116-048B059Kit Rebuild Suit 1116-048-059 9075-014-126Union 3/4' BSP RH
1116-048B064Kit Rebuild Suit 1116-048-064 9075-014B126 Kit Rebuild Suit
9075-014-126
1116-090-043Union 5/8'-18 UNF RH 9075-020-124Union 3/4' NPT RH Hot Oil
Serv
1116-090-051Union 3/8 NPT 5/8-18NF LH 9075-020-125Union 3/4' NPH LH Hot
Oil Serv
1116-090-064Union 5/8'-18 UNF RH 9075-020B124Kit Rebuild Suit
9075-020-124
1116-090-249Union 5/8' 18 UNF RH 9075-020B125Kit Rebuild Suit 9075-020-125
1116-090B059Kit Rebuild Suit 1116-090-059 9075-029-110Union 3/4' BSP RH
Steam Servic
1116-090B249Kit Rebuild Suit 1116-090-249 9075-029-110409Union 3/4' BSP RH
Duoflow With
1116-319-248Union 3/8' NPT RH SM 9075-029-111Union 3/4' BSP LH Steam
Servic
1116-555-463Union M16 X 1.5 SA-090 9075-030-126Union 3/4' BSP RH Hot Oil
Serv
1116-600-059Union 5/8' 18 UNF Straight LH 9100-001-103135Union 1' NPT RH
Special
1116-600-463Union Coolant M16 X 1.5 LH 9100-001-109Union 1' NPT LH Steam
Service
1116-610-463Union Sic/Sic M16 X 1.5 LH 9100-001B103Kit Rebuild Suit
9100-001-103
1116-672-043Union 5/8'-18 UNF RH 9100-001B109Kit Rebuild Suit 9100-001-109
1129-033-301Union M16 X 1.5 9100-020B220Kit Rebuild Suit 9100-020-220
1139-032-301Union Bearingless Deublin 9100-020B221Kit Rebuild Suit
9100-020-221
1205-000-003Union 1/2' NPT RH 9100-027-112Union 1' BSP LH Steam Service
1205-000-004Union 1/2' NPT LH 9100-027-112408 Union 1' BSP LH Steam Duo
Fixe
1205-000-013Union 1/2' BSP LH 9100-027-113Union 1' BSP RH Steam Service
1205-000-019Union 3/4' NPT RH 9100-027B112Kit Rebuild Suit 9100-027-112
1205-000-025Union 3/4'-16 UNF LH 9100-027B113Kit Rebuild Suit 9100-027-113
1205-000-039Union 3/4'-16 UNF RH 9100-045-211Union 1' BSP RH Hot Oil
Servic
1205-000-586Union 1/2' BSP RH 9100-045-212Union 1' BSP LH Hot Oil
1205-000B025Kit Rebuild Suit 1205-000-025 9100-045B211Kit Rebuild Suit
9100-045-211
1205-011-012Union 1/2' BSP RH Rotor 1/2' B 9100-045B212Kit Rebuild Suit
9100-045-212
1205-065-001Union 1-14 UNS RH 9100-403Elbow Duoflow Rotating Siphon
1205-065-021Union 3/4' BSP RH 9100-409Elbow Duoflow Fixed Syphon 1/4
1300-082-014Union 5/8' UNF RH 9125-001-109Union 1-1/4' NPT RH Steam Serv
1300-082-104Union 3/8' BSP RH 9125-001-110400Union 1-1/4' NPT LH Duoflow
Wi
1300-084-002Union 3/8' NPT RH 9125-001B109Kit Rebuild Suit 9125-001-109
1300-084-023Union 5/8'-18 UNF RH Rotor 9125-001B110Kit Rebuild Suit
9125-001-110
1300-084CKit Repair 1300-084 Series 9125-015-118Union 1-1/4' BSP RH Steam
Serv
1379-160Union 4 Passage 3/8 Inch BSP 9125-015-119Union 1-1/4' BSP LH Steam
Serv
1379-460Union 4 Passage 3/8 Inch NPT 9125-015B118Kit Rebuild Suit
9125-015-118
1379-495Union 4 Passage Water 3/8' NPT 9125-020-139Union 1-1/4' NPT RH Hot
Oil Se
1379-520Union 4 Passage Water 3/8' BSP 9125-020-140Union 1-1/4' NPT LH Hot
Oil Se
14075-004-447Union 3/4' BSP RH 9125-020B139Kit Rebuild Suit 9125-020-139
1500-194Union Deu-plex With Oil Wick 9125-020B140Kit Rebuild Suit
9125-020-140
1500-250Union Deu-plex Air Service Met 9125-030-137Union 1-1/4' BSP RH Hot
Oil Se
1500-367Union Deu-plex 1/2' NPT Ports 9125-030B137Kit Rebuild Suit
9125-030-137
154-015B178Kit Rebuild Suit 154-015-178 U 9150-001-104400Union 1-1/2' NPT
LH Duoflow
155-000-022Union 3/4'-16 UNF LH 9150-018-113Union 1-1/2' BSP RH Steam Serv
155-000-119Union 1/2' BSPT RH Special Rot 9150-018-114Union 1-1/2' BSP LH
Steam Serv
155-000B022Kit Rebuild Suit 155-000-022 U 9150-018B113Kit Rebuild Suit
9150-018-113
155-000B151Kit Rebuild Suit 155-000-151 U 9150-020-195Union 1-1/2' NPT RH.
Hot Oil S
155-139B151Kit Rebuild Suit 155-139-151 U 9150-020B195Kit Rebuild Suit
9150-020-195
155-199Elbow Duoflow 1/8' BSP Fixed S 9150-020B196Kit Rebuild Suit
9150-020-196
155-208-252Union 1/2' BSP RH ELS Seals 9150-124 9125+915Elbow Duoflow 3/4'
NPT Syphon
155-208B113Kit Rebuild Suit 155-208-113 U 9150-401 9125+915Elbow Duoflow
3/4' NPT Fixed S
155-208B252Kit Rebuild Suit 155-208-252 U 9200-001-102Union 2' NPT RH
155-208B253Kit Rebuild Suit 155-208-253 U 9200-001-102401Union 2' NPT RH
Duo
155-339-151Union L/T 1/2' BSP RH 9200-001-111Union 2' NPT LH
155-471Elbow Duoflow 9.9mm Rotating S 9200-001-121403Union Quick Connect
Duoflow Ro
155-604-151Union 1/2' BSP RH 9200-001B102Kit Rebuild Suit 9200-001-102
155-604B151Kit Rebuild Suit 155-604-151 U 9200-001B121Kit Rebuild Suit
9200-001-121
155-604KKit Repair 9200-020-122Union 2' Quick Connect. Hot Oi
155-907B021Kit Rebuild Suit 155-907-021 U 9200-029-118Union 2' BSP LH
157-000-001Union 1/2' NPT RH 9200-029B118Kit Rebuild Suit 9200-029-118
157-000-002Union 1/2' NPT LH 9200-030-119Union 2' BSP RH
157-006-021Union 3/4'-16 UNF RH 9200-030B120Kit Rebuild 2' BSP LH
157-006-022Union 3/4'-16 UNF LH 9200-138Wedge Set Split
157-006B021Kit Rebuild Suit 157-006-021 U 9200-433Elbow 9150 & 9200 Series
Fixed
157-045-119Union 1/2' PT RH 927-150-151Union High Pressure Water 3/4'
157-050-001Union 1/2' NPT RH SIC/SIC 927-150B151Kit Rebuild Suit
927-150-151 U
157-050-021061Union SIC/SIC 3/4-16 UNF RH 943-700Union Bearingless CG/SIC
157-050-022Union 3/4'-16UNF LH ELS SEALS

Deublin Rotary Unions & Swivel Joints & Slip Rings
Authorized China Distributor

信德迈科技(北京)有限公司 CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010 - 8428 2935，8428 9077 ，8428 3983
手机：13910122694
网站：Http://www.cnmec.net

VIEW ONLINE CATALOG >>
REQUEST A CUSTOM PANEL QUOTE >>

QQ: 209136943
Email: sales@cnmec.biz
传真：010-8428 8762
美国DMK Engineering Solutions公司

京ICP备08000876号-2
京公网安备11010502019743
