美国Deublin应用于风能领域的高压液压旋转接头。风电领域 DEUBLIN 旋接器。 在风力发电领域,我们的液压旋转接头和变桨滑环起着调整桨叶转动角度的关键作用,使其迎风率即使在苛刻环境下也永远最大化。“竭尽全力制造旋接器市场中的最佳产品”,坚持这一原则,并持续不断地创新,使DEUBLIN 杜布林公司从1945年的一家美国小作坊发展成为当今世界上最大的旋接器制造商。在广泛的工业领域,无论介质是水、蒸汽、液压油、热油、冷却液、润滑剂或其他特殊介质,当这些介质被运送或穿过旋转的机器部件如滚筒、轴或锭子等时,都需要用到旋接器。 进入中国十多年来,杜博林deublin旋转接头和金风科技、Vestas维斯塔斯、Gamesa歌美飒风电(天津)有限公司、中国明阳风电集团有限公司、国电联合动力技术有限公司、浙江运达风电股份有限公司、湘电风能、东方电气、上海电气、中船重工(重庆)海装风电设备有限公司、保定惠德风电 、浙江韵达风电、华谊风电、湖北国策风电、西门子海上风电、北重集团风电等厂家供货配套并建立了长期的战略合作关系。



Deublin High-pressure hydraulic rotating unions for wind turbines_PDF

Deublin wind power

Renewable or environmentally sustainable technologies require rotating unions for a variety of applications including wind and solar energy. Wind energy use Deublin high-pressure rotating unions for wind turbine hydraulic slip ring pitch control rated for millions of cycles and years of trouble-free operation. Solar technologies harness radiant light and heat from the sun for applications that include solar heating, solar photovoltaics, solar thermal electricity and solar architecture.

Pitch Control for Wind Energy Turbines

Deublin high-pressure unions for wind turbine hydraulic slip ring pitch control unions, are available in 2-4 passage configurations, with central passages for cable connections to integrated and optimized Deublin electrical slip rings.

Solar Energy

Deublin rotating unions are used in multiple applications including heating and cooling of films used with photovoltaic panels to absorb solar energy, and to transmit hot water or other fluids from photovoltaic panels to a header panel for different uses.

Deublin's Electrical Slip Ring Products Video



Deublin应用于风力发电领域的高压、液压旋转接头系列:

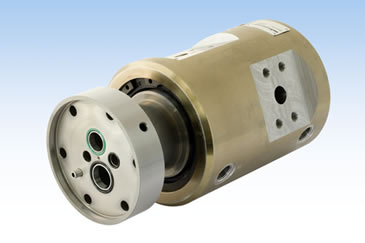

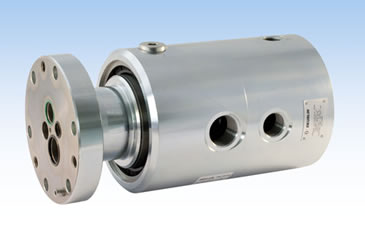

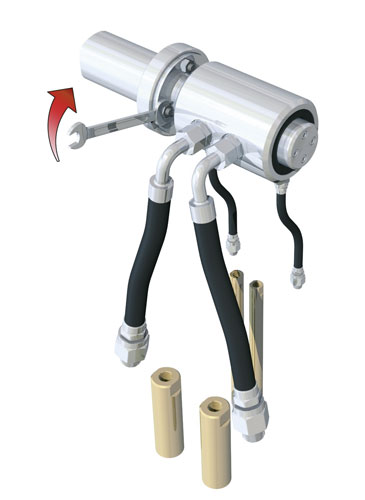

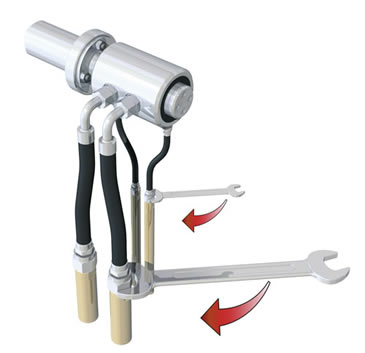

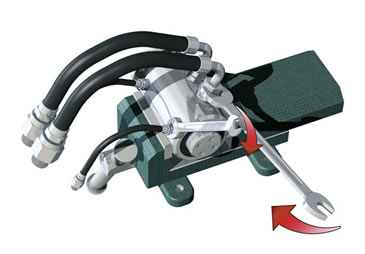

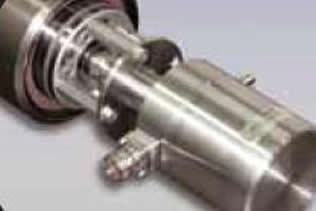

风力发电机用旋接器  DN 15-40,1-4通道



7100-733

○单通道设计
○自支撑旋接器
○螺纹连接

○静力学密封设计
○耐磨轴承
○压力可控泄油管道

○双重密封轴
○不锈钢壳体
○硬化钢转子



7100-376 / 7100-730 / 7100-741

○双通道设计
○法兰连接
○同轴介质通道



7100-700

○双通道设计
○法兰连接
○并行介质通道

○中心电缆通道
○导电滑环连接



特殊设计

○三通道设计
  ○偏心电缆通道
○转子中设排放通路

○SAE壳体连接



   7100-736 / 7100-1001

○四通道设计
○法兰连接
○并行介质通道

○中心电缆通道
○导电滑环连接



7100-1005

○四通道设计
○法兰连接
○并行介质通道

○中心电缆通道
○导电滑环连接
○整体壳体



下列几种型号为风能应用中的一些特殊液压旋接器:



7100-971 旋转接头
899-200-201旋转接头
899-221-201 旋转接头

899-220-201旋转接头

7100-1018 旋转接头
899-210-201 旋转接头
SP0037旋转接头


DN15-40,1-4通道
7100-733

单通道设计
自支撑旋接器
螺纹连接
静力学密封设计
耐磨轴承
压力可控泄油管道
双重密封轴
不锈钢壳体
硬化钢转子

7100-376,7100-730,7100-741

双通道设计
法兰连接
同轴介质通道



7100-700

双通道设计
法兰连接
并行介质通道
中心电缆通道
导电滑环连接

特殊设计
三通道设计
偏心电缆通道
转子中设排放通路
SAE壳体连接



7100-736,7100-1001

4通道设计
法兰连接
并行介质通道
中心电缆通道
导电滑环连接

7100-1005

4通道设计
法兰连接
并行介质通道
中心电缆通道
导电滑环连接
整体壳体

下列几种型号为deublin风能应用中的一些特殊液压旋接器
7100-970, 899-200-201, 899-221-201, 7100-1018, 899-210-201, SP0037

7100系列旋接器 DN8

1-4通道设计
自支撑旋接器
静力学密封设计
滚珠轴承支撑
回流量与压力相关
轴端设有第二道密封
铝壳体
钢转子,带涂层
适用于高转速的特殊设计

工作参数:

最大液压: 2900 psi 200 bar
最小液压: 4 0psi,3 bar
最大转速: 3000 RPM, 3000min
最高温度: 60度,大于60度请咨询我公司
要求油质清洁度:class 17/15/12, ISO 4406
deublin 7100-737, 7100-739, 7100-740, 7100-900

7100系列旋接器 DN8-20双通道


双通道设计
自支撑旋接器
静力学密封设计
耐磨轴承
压力可控泄油管道
双重密封轴
不锈钢壳体
强化钢转子

工作参数:

最大液压: 3630 psi , 250bar
最小液压: 4 0psi, 3 bar
最大转速: 500 RPM, 500min
最高温度: 60度,大于60度请咨询我公司
要求油质清洁度:class 17/15/12, ISO 4406
deublin 7100-773, 7100-852, 7100-777, 7100-853, 7100-711,7100-854, 7100-713, 7100-855

20504系列旋接器
DN8 双通道

双通道设计
自支撑旋接器
P1压力通道
高耐磨平衡式机械密封组合
碳化硅/碳化硅 适用于高压通道P1
P2为静止时的回流通道
石墨复合聚四氟乙烯密封
泄放通道设计,防止P1 P2通道之间内部泄露
径向连接 铝制外壳
不锈钢转子 强化处理
主要应用于 卷取机

工作参数:

最大液压: 3050 psi , 210bar
最大转速: 250 RPM, 250min
最高温度: 60度,大于60度请咨询我公司
要求油质清洁度:class 17/15/12, ISO 4406
deublin 20504-900, 20504-950



Deublin杜博林导电滑环
Deublin Rotating Electrical Slip Rings

Deublin offers Electrical Slip Rings utilizing proven technology for long lasting, high quality rotary transmission of electrical signal and power. Deublin slip rings are designed for a variety of applications including semi-conductor production, wind turbines, industrial automation and directional drilling.



Deublin slip rings are designed with consideration for all user experiences from ease of installation, ease of maintenance and optimal product life. Our Engineering approach starts with a complete understanding of the application, both performance and environmental specifications. Deublin then combines this understanding with our decades of rotational design experience and exceptional product quality to deliver a world class product and customer experience.

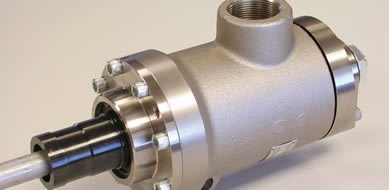

Off-shore wind turbine union, slip ring
and encoder. A complete DEUBLIN
solution providing hydraulics, electrical
power, EtherCAT and position.
DEUBLIN Rotating Electrical Slip Rings
Industrial control slip ring for mounting
around a 165mm shaft
DEUBLIN’S custom graphite
power brush holder

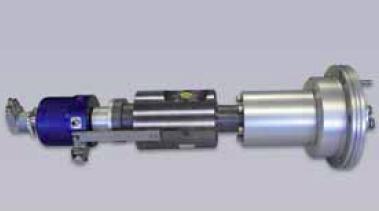

Slip ring and union combination in one
integrated assembly
Rugged 1 channel slip ring with thru bore
for construction industry
Slip ring without cover, using wires on gold-plated rings

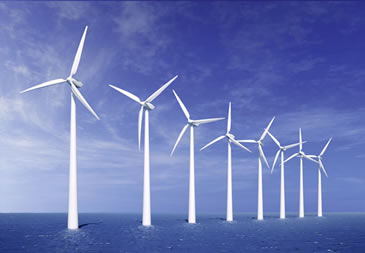

On-Shore and Off-Shore Wind Energy Farms

- Power supply up to 250 A
- Transmission of Ethernet and Profibus signals
- Resistant to shock and vibration
- Protection class IP 54 - IP 66

DEUBLIN Electrical Slip Rings标准产品:
Easy to order
Modular design to fit specific needs
Quick lead time
Deublin quality and warranty
Adaptable mounting options


DEUBLIN slip rings undergoing life cycle tests



DEUBLIN Electrical Slip Rings Capabilities
性能参数


Voltage电压:
Up to 1000 Volts AC (single or three phase) or DC.
Current电流:
Up to 250 Amperes AC or DC.
Signal types:
信号类型
Analog signals such as sensors, thermocouples, audio, video, etc. Digital signals such as Ethernet, PROFIBUS, CANbus, RS-232, RS-422, RS-485 and other logic control.
EMI shielding:
屏蔽
Shielding of analog, digital, RF and Microwave signals to prevent crosstalk with other signals
and/or AC/DC power.
Slip ring brush technology:
滑环电刷技术
Monofilament or multi-fiber precious metal (Palladium, Silver or Gold). Carbon based (Graphite,
Copper/Graphite, Silver/Graphite). Actual brush material and technology is selected based on
power or signal requirements.
Electrical Connection:
电气连接
Cables/leads (length as specified by the customer), circular industrial or military connectors,
modular industrial connectors, RJ45, screw or spring terminal blocks, etc.
Mounting:
安装
Flanged rotor mount, threaded rotor mount, or hollow rotor mount. Through bore slip ring (hollow rotor mount) is optional to allow line(s) for other media to be routed through the center of the slip ring.
Rotational speed:
转速
Up to 10,000 rpm.
Operating life:
工作寿命
Up to 200,000,000 cycles (rotations).
Ingress protection rating:
防护等级
Up to IP66 or NEMA 12


定制产品:

Custom made
Leverage standard components
Competitive pricing
Rapid response
User friendly design
Integrated Rotary Joints

Traditional fluid media + electrical power & signal
Vast proven product database for traditional fluid media
Variety of transmission technologies from conventional sliding contacts to contactless for high data throughput
From an integrated, bundled unit to modular plug and play design

美国杜博林导电滑环市场应用DEUBLIN slip rings Applications Slip Ring Industries:Wind Turbines风力发电机组、Construction Equipment建筑设备、Semiconductor半导体行业、Industrial工业、Plastic Molding Machine注塑机 塑料成型机、Food Processing食品加工、Tooling Machines机床、Wind Energy风能、Winding Machines绕线机、Centrifuges离心机、Semi Conductor Production半导体生产线、Directional Drilling Machines水平定向钻机、Handling Machines装卸机械、Robotics机器人、Pick &Place Machines拾取和放置机械 and Turnables转盘。

Electrical Slip Ring Brochure PDF
导电滑环技术资料

- Electrical Slip Ring RFQ PDF

- Electrical Slip Rings for Wind Turbine Applications PDF

- Machine Design publishes Slip Ring FAQ Article featuring Deublin product photo PDF

- DEUBLIN Slip Rings

- DEUBLIN electrical slip rings meet demanding design challenges
