DEUBLIN 9000系列蒸汽与热油应用接头 9000 Series Steam and Hot Oil Union
DEUBLIN Rotating Union 9000 Series for Steam or Hot Oil Service,DN 20 - 50

Deublin 9000 Series Steam and Hot Oil Union

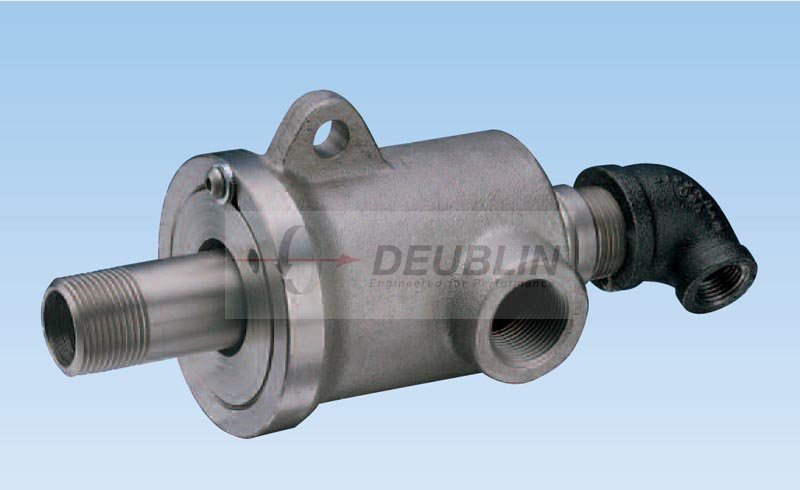

DEUBLIN 9000系列蒸汽与热油应用接头产品特点特点:有单通道与双通道设计,自带支撑旋转接头,球面碳石墨密封。密封磨损划痕指示可实现预防性维护,壳体带有2个防转凸缘。镀镍铸铁壳体,钢转体、镀镍的转体用于蒸汽应用。可用备选产品:新型HT系列。请联系我们公司咨询。最高饱和蒸汽压力10bar。最高温度185度。最高热油压力7bar,最高转速400 rpm/m。最高热油温度230度。大于230度,请联系咨询我们公司。对订货型号9200-014,最高温度200度。禁止在同时达到最高压力和最高速度的条件下运行。

特点:

- 单通道与双通道设计monoflow and duoflow design
- 自带支撑旋转接头self-supported rotating union
- 球面碳石墨密封spherical Carbon Graphite seal

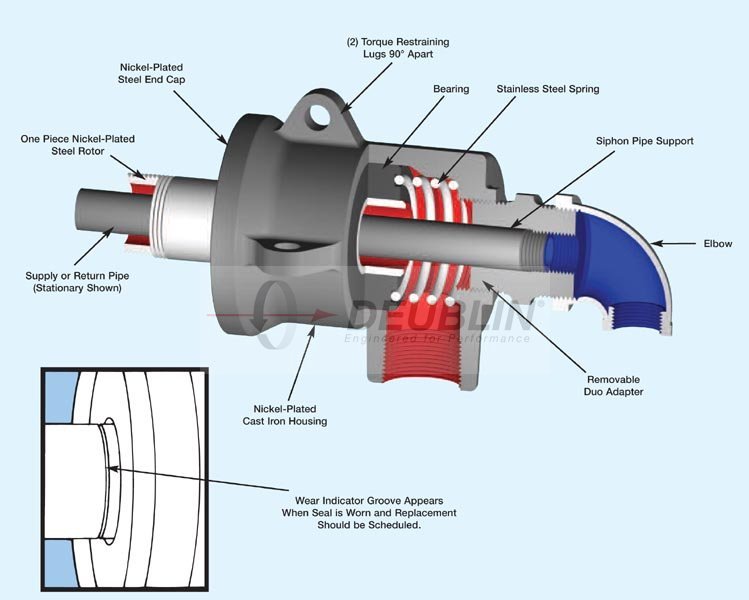

- 密封磨损划痕指示可实现预防性维护seal wear indicator allows preventive maintenance
- 壳体带有2个防转凸缘2 torque lugs on the housing
- 镀镍铸铁壳体nickel-plated cast iron housing
- 钢转体、镀镍的转体用语蒸汽应用steel rotor, nickel-plated for steam service



DEUBLIN Rotating Union 9000 Series for Steam or Hot Oil Service,DN 20 - 50
DEUBLIN 9000系列蒸汽与热油应用接头




Maximum Saturated Steam Pressure
Model 9075, 9100, 9125, 9150, 9200
150 psi
Maximum Hot Oil Pressure
Model 9075, 9100, 9125, 9150, 9200
100 psi
Maximum Speed NPT Threads
Model 9075, 9100, 9125, 9150, 9200
400 rpm
Maximum Speed Straight Threads
Model 9075, 9100, 9125, 9150, 9200
400 rpm
Maximum Temperature
Steam

365°F

>365°F consult Deublin

Maximum Temperature
Hot Oil

450°F

>450°F consult Deublin


订货型号:

3/4" NPT: 9075-001-106、9075-020-124、9075-001-107、9075-020-125、9075-001-117、9075-020-128

G3/4"(BSP) 9075-029-110、9075-030-126、9075-029-111、9075-030-127

1"NPT: 9100-001-103、9100-020-220、9100-001-109、9100-020-221、9100-001-121、9100-020-213、

G1"(BSP): 9100-027-113、9100-045-211、9100-027-112、9100-045-212

1 1/4"NPT: 9125-001-109、9125-020-139、9125-001-110、9125-020-140、9125-001-126、9125-020-141

G1 1/4"(BSP): 9125-015-118、9125-030-137、9125-015-119、9125-030-138

1 1/2"NPT: 9150-001-103、9150-020-195、9150-001-104、9150-020-196、9150-001-117、9150-020-199、

G1 1/2"(BSP): 9150-018-113、9150-031-197、9150-018-114、9150-031-198

2"NPT: 9200-001-102、9200-020-112、9200-001-111、9200-020-113、9200-001-121、9200-020-122

G2"(BSP): 9200-029-117、9200-030-119、9200-029-118、9200-030-120

Hose
Connection
Port
Ordering Number
Standard E.L.S. Rotor Thread
3/4" NPT 9075-001-106   3/4" NPT RH
9075-001-107   3/4" NPT LH
9075-001-117   QUICK CONNECT
9075-020-124   3/4" NPT RH
9075-020-125   3/4" NPT LH
9075-020-128   QUICK CONNECT
G 3/4" (BSP) 9075-029-110   G 3/4" (BSP) RH
9075-029-111   G 3/4" (BSP) LH
9075-030-126   G 3/4" (BSP) RH
9075-030-127   G 3/4" (BSP) LH
1" NPT 9100-001-103   1" NPT RH
9100-001-109   1" NPT LH
9100-001-121   QUICK CONNECT
9100-001-121   QUICK CONNECT
9100-020-213   QUICK CONNECT
9100-020-213   QUICK CONNECT
9100-020-220   1" NPT RH
9100-020-221   1" NPT LH
G 1" (BSP) 9100-027-112   G 1" (BSP) LH
9100-027-113   G 1" (BSP) RH
9100-045-211   G 1" (BSP) RH
9100-045-212   G 1" (BSP) LH
1 1/4" NPT 9125-001-109   1 1/4" NPT RH
9125-001-110   1 1/4" NPT LH
9125-001-126   QUICK CONNECT
9125-020-139   1 1/4" NPT RH
9125-020-140   1 1/4" NPT LH
9125-020-141   QUICK CONNECT
G 1 1/4" (BSP) 9125-015-118   G 1 1/4" (BSP) RH
9125-015-119   G 1 1/4" (BSP) LH
9125-030-137   G 1 1/4" (BSP) RH
9125-030-138   G 1 1/4" (BSP) LH
1 1/2" NPT 9150-001-103   1 1/2" NPT RH
9150-001-104   1 1/2" NPT LH
9150-001-117   QUICK CONNECT
9150-001-117   QUICK CONNECT
9150-020-195   1 1/2" NPT RH
9150-020-196   1 1/2" NPT LH
9150-020-199   QUICK CONNECT
9150-020-199   QUICK CONNECT
G 1 1/2" (BSP) 9150-018-113   G 1 1/2" (BSP) RH
9150-018-114   G 1 1/2" (BSP) LH
9150-031-197   G 1 1/2" (BSP) RH
9150-031-198   G 1 1/2" (BSP) LH
2" NPT 9200-001-102   2" NPT RH
9200-001-111   2" NPT LH
9200-001-121   QUICK CONNECT
9200-001-121   QUICK CONNECT
9200-020-112   2" NPT RH
9200-020-113   2" NPT LH
9200-020-122   QUICK CONNECT
9200-020-122   QUICK CONNECT
G 2" (BSP) 9200-029-117   G 2" (BSP) RH
9200-029-118   G 2" (BSP) LH
9200-030-119   G 2" (BSP) RH
9200-030-120   G 2" (BSP) LH
3/4" NPT Download Catalog   3/4" NPT LH
Download Catalog   3/4" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   3/4" NPT LH
Download Catalog   3/4" NPT RH
Download Catalog   QUICK CONNECT
G 3/4" (BSP) Download Catalog   G 3/4" (BSP) LH
Download Catalog   G 3/4" (BSP) RH
Download Catalog   G 3/4" (BSP) LH
Download Catalog   G 3/4" (BSP) RH
1" NPT Download Catalog   1" NPT LH
Download Catalog   1" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   QUICK CONNECT
Download Catalog   1" NPT LH
Download Catalog   1" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   QUICK CONNECT
G 1" (BSP) Download Catalog   G 1" (BSP) LH
Download Catalog   G 1" (BSP) RH
Download Catalog   G 1" (BSP) LH
Download Catalog   G 1" (BSP) RH
1 1/4" NPT Download Catalog   1 1/4" NPT LH
Download Catalog   1 1/4" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   1 1/4" NPT LH
Download Catalog   1 1/4" NPT RH
Download Catalog   QUICK CONNECT
G 1 1/4" (BSP) Download Catalog   G 1 1/4" (BSP) LH
Download Catalog   G 1 1/4" (BSP) RH
Download Catalog   G 1 1/4" (BSP) LH
Download Catalog   G 1 1/4" (BSP) RH
1 1/2" NPT Download Catalog   1 1/2" NPT LH
Download Catalog   1 1/2" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   QUICK CONNECT
Download Catalog   1 1/2" NPT LH
Download Catalog   1 1/2" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   QUICK CONNECT
G 1 1/2" (BSP) Download Catalog   G 1 1/2" (BSP) LH
Download Catalog   G 1 1/2" (BSP) RH
Download Catalog   G 1 1/2" (BSP) LH
Download Catalog   G 1 1/2" (BSP) RH
2" NPT Download Catalog   2" NPT LH
Download Catalog   2" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   QUICK CONNECT
Download Catalog   2" NPT LH
Download Catalog   2" NPT RH
Download Catalog   QUICK CONNECT
Download Catalog   QUICK CONNECT
G 2" (BSP) Download Catalog   G 2" (BSP) LH
Download Catalog   G 2" (BSP) RH
Download Catalog   G 2" (BSP) LH
Download Catalog   G 2" (BSP) RH



DEUBLIN Rotating Union 9000 Series for Steam or Hot Oil Service,DN 20 - 50
DEUBLIN Ordering No.

9075-008-110
9075-014-126
9075-008-111
9075-014-127
9075-008-117
9075-014-128
9100-008-113
9100-014-211
9100-008-112
9100-014-212
9100-008-121
9100-014-213
9125-008-118
9125-014-137
9125-014-138
9125-008-126
9125-014-141
9150-008-113
9150-014-197
9150-008-114
9150-014-198
9150-008-117
9150-014-199
9200-008-117
9200-014-119
9200-008-118
9200-014-120 G
9200-008-121
9200-014-122

Model 9075-014: minus 3 mm
9100-014: minus 2 mm
9125-014: minus 7 mm
9150-014: minus 4 mm
** Split Ring
** Flange

For Ordering No. 9200-014 Tmax = 200°C
* Operation at max. pressure combined with max. speed is not permissible
Max. Temperature 230 °C > 230 °C consult DEUBLIN

Duoflow Rotating Union with Elbow for Steam Ordering No.

9075-008-110
9075-008-111
9075-008-117
9100-008-113
9100-008-112
9100-008-121
9125-008-118
9125-008-119
9125-008-126
9150-008-113
9150-008-114
9150-008-117
9200-008-117
9200-008-118
9200-008-121

Ordering No. DUO Type Rotor Pipe DIN
Connections

Duoflow Rotating Union with Elbow for Hot Oil Ordering No.

9075-014-126
9075-014-127
9075-014-128
9100-014-211
9100-014-212
9100-014-213
9125-014-137
9125-014-138
9125-014-141
9150-014-197
9150-014-198
9150-014-199
9200-014-119
9200-014-120
9200-014-122
-500 D
-510 E
-501 D
-511 E
-500 D
-514 E
-501 D
-512 E
-503 D
-515 E
302 68
311 77

Duoflow Rotating Union for Hot Oil
