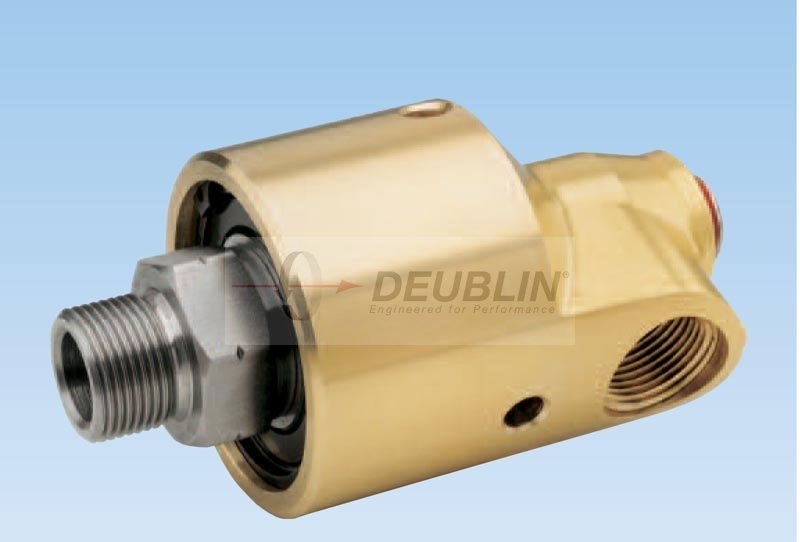

Deublin 55系列通用旋转接头

这种小型通用接头可用于水、间歇蒸汽或热油应用。两个高精度的滚珠轴承使密封面保持最精确对准。Deublin 55 、 155 、 255 及 355 型号的接头有不锈钢转体。 525 、 555 和 655 型号有碳钢转体。所有规格的接头都有双通道和单通道两种,并都采用双密封组合。


Deublin 55系列通用旋转接头
技术资料下载

“通用型”密封

标准的通用型密封采用石墨到铜材质并具有四氟乙烯密封楔片。可用于要求低扭矩、温度不超过 395 ℉( 220 ℃)及过滤精度为 25 微米左右的水、间歇饱和蒸汽(少于 20% 时间)或热油类应用。接头应用温度超过 250 ℉时 , 则要求周期性润滑。请与杜布林工程部咨询润滑指南。热油应用类型接头要求采用适宜高温的润滑剂进行润滑。

Deublin 55系列通用旋转接头资料下载

延长寿命型密封 (E.L.S.)

对于无法进行过滤及水中可能含有锈蚀、屑片、碎屑的应用;或要求接头有更长的使用寿命时,可采用延长寿命型密封,使其寿命可延长 2-4 倍甚至根据具体情况可延至更长。此类接头具有碳化钨对陶瓷并具有氟橡胶材料的 O 型密封。

特点:
——单双向流设计
——自支撑旋转接头
——径向壳体连接
——平衡机械密封
   密封结合:碳石墨对陶瓷(标准)
   碳化钨对陶瓷(特殊)
——3通气孔
——锻铜壳体
——特殊选项:
   螺纹通气孔
   低扭矩设计

工作参数

最大水压力 型号 55-555

750 PSI

51 bar

最大水压力 型号 655

600 PSI

41 bar

最高水温

300 ℉

150 ℃

最大间歇饱和蒸汽压力

120 PSI

8.2 bar

最大热油压

100 PSI

6.6 bar

最大热油温(特别型号) *

395 ℉

200 ℃

最大 RPM 热油 @350 ℉到 395 ℉
175 ℃到 200 ℃

300

300/min

最大 RPM NPT 螺纹

1500

1500//min

最大 RPM NPT 螺纹 型号 655

750

750//min

最大 RPM ST 螺纹 型号 55-255

3500

3500/min

最大 RPM ST 螺纹 型号 355

3000

3000//min

最大 RPM ST 螺纹 型号 525-555

2500

2500//min

最大 RPM ST 螺纹 型号 655

750

750/min



工作参数

最大水压力

150 PSI

最高水温

300 ℉

最大 RPM NPT 螺纹 型号 55-555

1500

最大 RPM NPT 螺纹 型号 655

750

最大 RPM ST 螺纹 型号 55-255

3500

最大 RPM ST 螺纹 型号 355

3000

最大 RPM ST 螺纹 型号 525-555

2500

最大 RPM ST 螺纹 型号 655

750

由于deublin的平衡式密封的管压并不响扭矩,表中列出的是水压在 150p.s.i. 时的平均扭矩。
注意:亦可提供更低扭矩接头。若需要请与我公司工程部联系。

57-000-001 57-050-001 55-000-001 55-147-151 55-139-001 3/8" NPT RH 44,5 102 26 7,5 9,5 22** 71 1/4" - - 0,6
57-000-002 57-050-002 55-000-002 55-147-152 55-139-002 3/8" NPT LH
57-000-094 57-050-094 55-000-094 55-147-192 55-139-094 G3/8" (BSP) RH 44,5 102 26 16 9,5 22** 64 1/4" - 1,5 0,6
57-000-095 57-050-095 55-000-095 55-147-193 55-139-095 G3/8" (BSP) LH
1/2" 157-000-001 157-050-001 155-000-001 155-108-113 155-139-001 12" NPT RH 57 124 37 10 12,7 30** 89 3/8" - - 1,2
157-000-002 157-050-002 155-000-002 155-108-114 155-139-002 1/2" NPT LH
157-000-151 157-050-151 155-000-151 155-108-252 155-139-151 G1/2" (BSP) RH 57 121 34 19 12,7 30** 78.5 3/8" - 1,5 1,2
157-000-152 157-050-152 155-000-152 155-108-253 155-139-152 G1/2" (BSP) LH
3/4" 257-000-020 257-050-020 255-000-020 255-019-255 255-056-020 3/4" NPT RH 73 144 37 10,5 17,5 36** 104 1/2" - - 2,1
257-000-021 257-050-021 255-000-021 255-019-256 255-056-021 3/4" NPT LH
257-000-284 257-050-284 255-000-284 255-019-445 255-056-284 G3/4" (BSP) RH 73 141 34 19 17,5 36** 94,5 1/2" - 2 2,1
257-000-285 257-050-285 255-000-285 255-019-446 255-056-285 G3/4" (BSP) LH
257-000-012 257-050-012 255-000-012 255-019-487 255-056-012 M22x1,5(PT) RH 73 137 30 14 14,3 36** 95 1/2" - 1,5 2,1
257-000-013 257-050-013 255-000-013 255-019-503 255-056-013 M22x1,5(PT) LH
257-000-014 257-050-014 255-000-014 255-019-469 255-056-014 M35x1,5 RH 73 144 37 15 17,5 41** 102 1/2" - 2 2,2
257-000-015 257-050-015 255-000-015 255-019-470 255-056-015 M35x1,5 LH
1" 357-000-002 357-050-002 355-000-002 355-012-186 355-038-002 1" NPT RH 82,6 173 49 12,5 25,4 36 123 3/4" 45 - 3,1
357-000-003 357-050-003 355-000-003 355-012-187 355-038-003 1" NPT LH
357-000-222 357-050-222 355-000-222 355-012-378 355-038-222 G1" (BSP) RH 82,6 165 42 22 22,2 36 108 3/4" 45 2 3,1
357-000-223 357-050-223 355-000-223 355-012-379 355-038-223 G1" (BSP) LH
357-000-235 357-050-235 355-000-235 355-012-381 355-038-235 M35x1,5 RH 82,6 159 35,5 15 25,4 36 108 3/4" 45 2 3,1
357-000-236 357-050-236 355-000-236 355-012-382 355-038-236 M35x1,5 LH
11/4 ” 527-000-001 527-050-001 525-000-001 525-042-043 525-086-001 11/4” NPT RH 90,5 192 55 13 30,2 46 132 1" 58 - 4,1
527-000-002 527-050-002 525-000-002 525-042-044 525-086-002 11/4” NPT LH
527-000-054 527-050-054 525-000-054 525-042-122 525-086-054 G11/4” (BSP) RH 90,5 191 54 28 30,2 46 119 1" 58 2 4,1
527-000-055 527-050-055 525-000-055 525-042-123 525-086-055 G11/4” (BSP) LH
11/2 ” 557-000-001 557-050-001 555-000-001 555-016-154 555-037-001 11/2” NPT RH 108 218 62 13 38,1 55 153 11/4 ” 65 - 6,5
557-000-002 557-050-002 555-000-002 555-016-160 555-037-002 11/2” NPT LH
557-000-198 557-050-198 555-000-198 555-016-288 555-037-198 G11/2” (BSP) RH 108 228 72 29 35 55 149 11/4 ” 65 2 6,7
557-000-199 557-050-199 555-000-199 555-016-289 555-037-199 G11/2” (BSP) LH
557-000-200 557-050-200 555-000-200 555-016-418 555-037-200 M50x1,5 RH 108 222 66 22,5 38,1 55 150 11/4 ” 65 2 6,5
557-000-201 557-050-201 555-000-201 555-016-419 555-037-201 M50x1,5 LH
2" 657-000-116 657-050-116 655-000-116 655-502-116 655-503-116 2" NPT RH 117 257 76 13,5 47 60 189 11/4 ” 70 - 7,7
657-000-117 657-050-117 655-000-117 655-502-117 655-503-117 2" NPT LH
657-000-124 657-050-124 655-000-124 655-502-124 655-503-124 G2" (BSP) RH 117 246 65 29 47 60 164 11/4 ” 70 2,5 7,6
657-000-125 657-050-125 655-000-125 655-502-125 655-503-125 G2" (BSP) LH

* F-m.let for NPT rotorgjenge = halv gjengelengde ved montert (fastskrudd) rotor.



57 og 55 seriens tokanalsunioner m/fast sifonr.r
St.rst mulig gjenger.r sikrer maksimal gjennomstr.mning i en gitt union. P.virkninger ved gjengene kan f.re til at r.ret brekker og faller ut av unionen. Derfor b.r r.rlengden ikke v.re mer enn fire ganger unionens lengde, og hastigheter over 1000 o/min b.r unng.s.

Dimensjon H** = HEX
Standardmodeller

B O Bestillingsnr. A Rotorgjenge C . D2 E F* G . H J K NPT M N P Gjenge R S T h11 . U
NPT NPT Mod. 55 STD DUO
55-000-001 -120 3/8" NPT RH 44,5 124 26 7,5 9,5 22** 71 1/4" 18 36 M6x1 98,5 8 - -
3/8" 1/4" 55-000-002 -120 3/8" NPT LH
55-000-094 -120 G3/8" (BSP) RH 44,5 124 26 16 9,5 22** 64 1/4" 18 36 M6x1 98,5 8 - 1,5
55-000-095 -120 G3/8" (BSP) LH
155-000-001 -012 1/2" NPT RH 57 149 37 10 12,7 30** 89 3/8" 18 39,5 1/8" NPT 119 7 - -
1/2" 3/8" 155-000-002 -012 1/2" NPT LH
155-000-151 -199 G1/2" (BSP) RH 57 149 34 19 12,7 30** 78,5 3/8" 18 39,5 G1/8" 117 8 - 1,5
155-000-152 -199 G1/2" (BSP) LH
255-000-020 -043 3/4" NPT RH 73 173 37 10,5 17,5 36** 104 1/2" 26 45,5 1/4" NPT 134 7 - -
255-000-021 -043 3/4" NPT LH
255-000-284 -368 G3/4" (BSP) RH 73 170 34 19 17,5 36** 94,5 1/2" 26 45,5 G1/4" 137 12 - 1,5
3/4" 1/2" 255-000-285 -368 G3/4" (BSP) LH
255-000-012 -367 M22x1,5 (PT) RH 73 166 30 14 14,3 36** 95 1/2" 26 45,5 G1/8" 129 8 - 1,5
255-000-013 -367 M22x1,5 (PT) LH
255-000-014 -368 M35x1,5 RH 73 173 37 15 17,5 41** 102 1/2" 26 45,5 G1/4" 140 12 - 2
255-000-015 -368 M35x1,5 LH
355-000-002 -083 1" NPT RH 82,6 208 49 12,5 25,4 36 123 3/4" 28 58,5 3/8" NPT 177 7,5 45 -
355-000-003 -083 1" NPT LH
1" 1/2" 355-000-222 -255 G1" (BSP) RH 82,6 200 42 22 22,2 36 108 3/4" 28 58,5 G3/8" 161 12 45 2
355-000-223 -255 G1" (BSP) LH
355-000-235 -255 M35x1,5 RH 82,6 194 35,5 15 25,4 36 108 3/4" 28 58,5 G3/8" 155 12 45 2
355-000-236 -255 M35x1,5 LH
525-000-001 -007 11/4” NPT RH 90,5 235 55 13 30,2 46 132 1" 35 72 1/2" NPT 198 10 58 -
11/4 ” 3/4" 525-000-002 -007 11/4” NPT LH
525-000-054 -079 G11/4” (BSP) RH 90,5 234 54 28 30,2 46 119 1" 35 72 G1/2" 186 14 58 2
525-000-055 -079 G11/4” (BSP) LH
555-000-001 -013 11/2” NPT RH 108 261 62 13 38,1 55 153 11/4 ” 38 77 3/4" NPT 223 10,5 65 -
555-000-002 -013 11/2” NPT LH
11/2 ” 3/4" 555-000-198 -221 G11/2” (BSP) RH 108 271 72 29 35 55 149 11/4 ” 38 77 G3/4" 223 16 65 2
555-000-199 -221 G11/2” (BSP) LH
555-000-200 -221 M50x1,5 RH 108 265 66 22,5 38,1 55 150 11/4 ” 38 77 G3/4" 217 16 65 2
555-000-201 -221 M50x1,5 LH
3/4" 655-500-116 -013 2” NPT RH 117 300 76 13,5 47 60 189 11/4 ” 38 79,5 3/4" NPT 263 10,5 70 -
2” 655-500-117 -013 2” NPT LH
G11/4 ” 655-500-124 -534 G2” (BSP) RH 117 311 65 29 47 60 164 11/4 ” 45 94 G1" 251 26 70 2,5
655-500-125 -534 G2” (BSP) LH

1379-460 110 89 176 25 10,5 9 60,000 59,981 72 142 26 18 12,05 12,00 16,7 12 7,2 24,5 90 4 3,5 M6 4x90° 24,5 60,060 60,030 90 7,6
4xG3/8" (BSP) 1379-160 110 89 176 25 10,5 9 60,000 59,981 72 142 26 18 12,05 12,00 16,7 12 7,2 24,5 90 4 3,5 M6 4x90° 24,5 60,060 60,030 90 7,6
4x1/2" NPT 1479-400 130 108 202 25 13,5 13 75,000 74,981 81 169 31 23 15,05 15,00 19,7 15 9 29 110 4 3,5 M8 4x90° 29 75,060 75,030 110 12,7
4xG1/2" (BSP) 1479-100 130 108 202 25 13,5 13 75,000 74,981 81 169 31 23 15,05 15,00 19,7 15 9 29 110 4 3,5 M8 4x90° 29 75,060 75,030 110 12,7

Deublin Unions
Part NumberDescriptionPart NumberDescription
157-016-738Union 157-440-125Union 1-1/2' BSP RH Rotor
157-097-125Union 157-440-125950Union Custom 57 Series
257-098-135Union 1'-14 UNF RH 157-508-201 SPECUnion Duo M20x1.5 RH
157-097CKit Repair 157-097 Series 157-516-342187Union Custom 57 Series
157-028-125Union 1/2' BSP RH 1579-000Union Deu-plex 1/2' NPT Port H
157-016CKit Repair 157-016 Series 1579-000CKit Repair 1579-000 Series
527-012-498Union 1579-035Union Deu-plex TC/C Seals Spec
357-051CKit Repair Suit 357-051 Series 1590-000Union Deu-plex 1/2' NPT
Ports
527-012CKit Repair 527-012 Series 1690-000-105Union 1' BSP RH D/Passg W/o
In
157-016-151Union 1/2' BSP RH 1690-000-184Union 1' NPT RH Double Passage
157-016B738Kit Rebuild Suit 157-016-738 U 17-025-023Union 5/8-18 UNF RH
157-074-125Union 1/2' BSP 17-025-041Union 3/8' NPT RH
157-074B125Kit Rebuild Suit 157-074-125 U 17-025-045Union 3/8' NPT RH
Tapped Rotor
257-031-064Union 3/4' RH 17-025-046Union M16 X 2 RH
257-031B064Kit Rebuild 3/4' BSP RH 17-050CKit Repair
257-031CKit Repair 257-031 Series 17-051-039Union 1/4' NPT RH Vacuum
357-051-198Union 1' BSP RH Water Service 17-086-0235/8'-18 UNF RH
357-051B198Kit Rebuild Suit 357-051-198 17-086-039Union 3/8' BSP RH Brake
Fluid
527-012B498Kit Rebuild Suit 527-012-498 U 17-086-041Union 3/8' NPT RH
6250-066-121Union 2-1/2' Water BSP RH 1790-001-112Union 1-1/4 BSP RH Dbl
Passage
2620-041-252Union 2xPassg Oil/Oil 1/4 NPT 1790-001CKit Repair 1790-001
Series
6250-066-115Union 2-1/2' NPT RH 1890-063Union Deu-plex 1-1/2 BSP RH Ro
7100-498-1CUnion 6 Passage Multi-media 1890-063CKit Repair Suit 1890-063
Serie
355-000-222Union 1' BSP RH 1890-064Union Deu-plex 1-1/2 BSP RH Ro
6250-066CKit Repair Suit 6250-066 Serie 1890-116Union 1-1/2' NPT RH
1115-000-001Union 5/8'-18 UNF RH 21-001-101Union 3/4' NPT RH
555-000-198Union 1-1/2' BSP RH 21-001-109Union 1' UNS RH Air/Hydraulic
155-000-151Union 1/2' BSP RH 21-001-113Union 1/2' NPT RH
525-000-054Union 1-1/4' BSP RH 21-001-121Union M22 X 1.5 RH
657-000-124Union 2' BSP RH 21-063-1223/4 BSP RH
255-000-284Union 3/4' BSP RH 2117-005-103Union 1-14 UNS RH
1109-040-188Union M16 X 1.5 LH 2117-005CKit Repair Suit 2117-005 Serie
1129-718-480Union Less Brg Std Housing KSS 2200-000-003Union 1' 14 UNS RH
55-000-001Union 3/8' NPT RH 2200-000-027Union 1' 14 UNS LH
357-000-222Union 1' BSP RH Water Service 2200-000-096Union 1/2' NPT RH
2425-001-177Union Duo 3/4' BSP Less Siphon 2200-000-102Union 3/4' BSP RH
9200-001-121Union Quick Connect Rotor 2200-000-103Union 3/4' BSP LH
257-000-284Union 3/4' BSP RH Water Servic 2424-001-177180Union Duo 3/4'
BSP Rotor With
9150-001-117Union Quick Connect Steam Serv 2425-001-177180Union Duo 3/4'
BSP Rotor With
655-500-116Union 2' NPT RH 250-094-002Union 1-14 UNS RH Rotor
257-000-285Union 3/4' BSP LH Water Servic 250-094-012Union M22 X 1.5 RH
527-000-001Union 1-1/4' NPT RH 250-094-013Union M22 X 1.5 LH
555-000KKit Repair 555-000 Series 250-094-017Union 1-14 UNS (PT) LH
357-000-223Union 1' BSP LH Water Service 250-094-021Union 3/4' NPT LH
157-000-151Union 1/2' BSP RH Water Servic 250-094-027Union 1-14 UNS LH
55-000-094Union 3/8' BSP RH 250-094-285Union 3/4' BSP LH
357-050CKit Repair 357-050 Series 250-979-017Union 1-14 UNS LH
1115-000-205Union 3/8' BSP RH 2520-000Union Deu-plex 1/4' NPT Ports
857-000-101Union 3 Inch NPT RH 2520-033Union Deu-plex 1/4' NPT Pts A/
1115-565-002 SPECUnion SM CG/SIC 3/8' NPT RH Ro 2520-033BKit Rebuild Suit
2520-033 Unio
2117-001-103Union 1-14 UNS RH 2520-400Union Deu-plex CG/C Seals. Spe
902-141-192Union M16 X 1.5 LH 2520-400BKit Rebuild Suit 2520-400 Unio
2117-001-105Union 3/4' BSP RH 2520-401Union Deu-plex Special
155-000-152Union 1/2' BSP LH 254-051-112Union 3/4' NPT RH S/Steel
755-732-330139Union CG/C 2-1/2' BSP RH 254-051B112Kit Rebuild Suit
254-051-112 U
755-732-411139Union CG/C 2-1/2' BSP LH 255-000-003Union 1'-14 UNS RH
250-094-020Union 3/4' NPT RH 255-000-015Union M35 X 1.5 LH
655-500KKit Repair Suit 655-500 Series 255-000-021Union 3/4' NPT LH
155-000KKit Repair 155-000 Series 255-000-027Union 1'-14 UNS LH
157-000CKit Repair 157-000 Series 255-000B285Kit Rebuild Suit 255-000-285
U
755-700-415Union 2-1/2' NPT LH 255-012-016Union 1'-14 UNS RH PT RTR CG/C
355-000-019Union 1-1/2' - 12 UNF RH 255-019-487Union TC/C M22 X 1.5 RH Pt
Rot
1690-000-168Union 1' BSP RH D/Passg With I 255-019B487Kit Rebuild Suit
255-019-487 U
525-000-055Union 1-1/4' BSP LH 255-026-020Union 3/4' NPT RH
555-000B765 Kit Rebuild Suit 555-000-765 U 255-026B020Kit Rebuild Suit
255-026-020 U
9200-029-117Union 2' BSP RH Steam Service 255-026B284Kit Rebuild Suit
255-026-284 U
355-000-002Union 1' NPT RH 255-052-255Union 3/4' NPT RH ELS Seals
557-000-198Union 1-1/2' BSP RH Water Serv 255-052-446Union 3/4' BSP LH ELS
Seals
1116-090-059Union 5/8'-18 UNF LH 255-052B445Kit Rebuild Suit 255-052-445 U
527-000-054Union 1-1/4' BSP RH Water Serv 255-075Elbow Duoflow 1/2' Fixed
Suppl
55-000-002Union 3/8' NPT LH 255-156-020Union 3/4' NPT RH
57-000-094Union 3/8' BSP RH 255-156-021Union 3/4' NPT LH
250-094-284Union 3/4' BSP RH 255-156-284Union 3/4' BSP RH Rotor CG/C S
355-000KKit Repair Suit 355-000 Series 255-229-015Union M35 X 1.5 LH
6200-002-137Union 2' BSP RH Duoflow 255-296-258Union TC/C 1'-14 UNS RH
857-002CKit Repair To Suit Union 857-0 255-296B258Kit Rebuild Suit
255-296-258 U
1109-011-165Union 5/8'-18UNF LH 255-334B996Kit Rebuild 255 Series
902-120-188Union M16 X 1.5 LH 90 Degree. 255-371-996206Union Duoflow
Flanged Mount Ro
555-000-201Union M50 X 1.5 LH 257-000-014Union M35 X 1.5 RH
468-100Union 3 Passage Water Union 257-000-015Union M35 X 1.5 LH
255-000-285Union 3/4' BSP LH 257-000-021Union 3/4' NPH LH
1690-000-115Union 1' NPT RH D/Passg With I 257-000-023Union M25 X 1.5 RH
1005-000-049Union 1/4' BSP RH Shaft Mount 257-000-025Union M25 X 1.5 LH
857-001-118Union 3' BSP RH T/II Duoflow F 257-000-027Union 1'-14 UNS LH
557-050-198Union 1-1/2' BSP RH ELS 257-000-135Union 1'-14 UNS RH
355-000-223Union 1' BSP LH 257-000-136Union 1'-14 UNS LH
1102-070-029Union 5/8'-18 UNF RH 257-000-263Union 1' X UNS RH
257-050-284Union 3/4' BSP RH 257-000-264Union 1' X UNS LH
57-000-002Union 3/8' NPT LH 257-000-284368Union 3/4' BSP RH
1890-100Union Deu-plex 1-1/2 NPT RH Ro 257-000B003Kit Rebuild Suit
257-000-003 U
555-033-160 SPECIUnion 1-1/2' NPT LH ELS Seals 257-045-284Union 3/4' BSP
RH Rotor
357-000CKit Repair 357-000 Series 257-045-285Union 3/4' BSP LH Rotor
555-000-199Union 1-1/2' BSP LH 257-050-285Union 3/4' BSP LH
1005-165-061Union Viton O-Ring 257-050CKit Repair 257-050 Series
755-700-413Union 2-1/2' NPT RH 257-076CKit Repair 257-076 Series
157-000-022Union 3/4'-16 UNF LH 257-130-284Union 3/4' BSP RH Rotor 3/4' B
1500-000Union Deu-plex 3/8' NPT Ports 264-100Union Less Flange
255-000-020Union 3/4' NPT RH 350-084Elbow Duoflow 1/4' NPT Fixed S
9150-001B117Kit Rebuild Suit 9150-001-117 350-163Elbow Duoflow 0.625' Tube
1109-410-248Union M16 X 1.5 350-221-222Union 1' BSP RH
55-000KKit Repair 55-000 Series 350-255Elbow Duoflow 3/8' BSP Fixed S
55-000-003Union 5/8' UNF RH 355-000-003Union 1' NPT LH
655-500-124Union 2' BSP RH 355-000-074Union 1-1/2' - 12 UNF LH
257-000-020Union 3/4' NPT RH 355-000-235Union M35 X 1.5 RH
1205-000-151Union 1/2' BSP RH 355-000-236Union M35 X 1.5 LH
2520-170BKit Rebuild Suit 2520-170 Unio 355-000B019Kit Rebuild Suit
355-000-019
655-502B116Kit Rebuild Suit 655-502-116 U 355-000B074Kit Rebuild Suit
355-000-074 U
755-700CKit Repair Suit 755-700 Series 355-012-378Union 1' BSP RH TC/C
555-000-001Union 1-1/2' NPT RH 355-012-379UNION 1' BSP LH TC/C
257-000CKit Repair Suit 257-000 Series 355-021-003Union CG/C 1.0' NPT LH
17-025-039Union 3/8' BSP RH Air/Hydrauli 355-021-016Union 1 1/2-12 UNF
Pilot RH
157-050-021012Union SIC/SIC 3/4-16 UNF RH EL 355-021-223Union 1' BSP LH
555-000B001Kit Rebuild Suit 555-000-001 U 355-021-235Union M35 X 1.5 RH
255-052-445Union 3/4' BSP RH ELS Seals 355-021B002Kit Rebuild Suit
355-021-002 U
55-147-193Union TC/C 3/8' BSP LH 355-021B019Kit Rebuild Suit 1-1/2' 12 UNF
57-000-095Union 3/8' BSP LH 355-021KKit Repair 355-021 Series
55-000-095Union 3/8' BSP LH 355-038B222Kit Rebuild Suit 355-038-222 U
1205-000-021Union 3/4' BSP RH 355-038B223Kit Rebuild Suit 355-038-223 U
557-000CKit Repair 557-000 Series 355-062-222Union 1' BSP RH CG/C
1590-000CKit Repair 1590-000 Series 355-064-186Union TC/C 1' NPT RH
9200-029B117Kit Rebuild Suit 9200-029-117 355-064-378Union TC/C 1' BSP RH
1102-070-103Union 1/4' BSP RH 355-204B222Kit Rebuild Suit 355-204-222 U
1690-000CKit Repair 1690-000 Series 355-215-378Union 1' BSP RH 1' BSP B
Port
655-502-116Union 2' NPT RH. ELS 355-308B222Kit Rebuild
54-051-112Union 3/8' NPT RH SS ELS 355-317-317Union 1' BSP RH
357-050-019Union 1-1/2' X 12 UNF RH ELS 355-331-074Union CG/C 1-1/2-12 UNF
RH
255-000KKit Repair Suit 255-000 Series 355-331B019Kit Rebuild Suit
355-331-019 U
2117-001-109Union 3/4' NPT RH 355-331B074Kit Rebuild Suit 355-331-074 U
557-000-199Union 1-1/2' BSP LH 355-347Elbow Duoflow Rotating Supply
525-637-054Union CG/C 1-1/4' BSP RH High 357-000-002Union 1' NPT RH
9100-001-103Union 1' NPT RH 357-000-003Union 1' NPT LH
1115-000-200Union M16 X 2 RH 357-000-019Union 1-1/2' X 12 UNF RH
357-000-235Union M35 X 1.5 RH 357-000-074Union 1-1/2' X 12 UNF LH
1129-036-301Union Pop Off M16 X 1.5 LH W/1 357-000-198Union 1' BSP RH
857-001CKit Repair 857-001 Series 357-000-236Union M35 X 1.5 LH
1790-001-113Union 1-1/4' NPT RH Dble Passa 357-000B002Kit Rebuild Suit
357-000-002 U
1790-001-114Union 1-1/4' BSP RH Dble Passa 357-000B222Kit Rebuild Suit
357-000-222 U
9150-001-104Union 1-1/2' NPT LH Steam Serv 357-000B223Kit Rebuild Suit
357-000-223 U
1890-060Union Deu-Plex 1-1/2' BSP RH 2 357-130-222Union 1' BSP Special
1005-163-037Union M10x1 RH Special For Air 450-144Elbow Duoflow 1.005'
Rotat. Su
21-001-122Union 3/4' BSP RH 452-000-001Union 1-1/2 NPT RH Rotor Air S
9100-020-220Union 1' NPT RH Hot Oil Servic 452-000-002Union 1-1/2' NPT LH
9100-020-221Union 1' NPT LH Hot Oil Servic 452-000-029Union 1-3/4' - 12 UN
RH
355-021-222Union 1' BSP RH 452-000-198Union 1-1/2' BSP RH
1005-020-049Union 1/4' BSP RH 452-000-199Union 1-1/2' BSP LH
155-139-151Union CG/C 1/2' BSP RH 452-000B198Kit Rebuild Suit 452-000-198
U
555-000B199Kit Rebuild Suit 555-000-199 U 452-000B199Kit Rebuild Suit
452-000-199 U
902-225-101Union Rotating 12mm Pilot 452-001-198Union With K Port 1-1/2'
BSP R
1139-020-116Union Bearingless Popoff M16x1 455-030-399Union TC/C 2'-12 UNC
RH
157-000B022Kit Rebuild Suit 157-000-022 U 455-030B399Kit Rebuild Suit
455-030-399 U
902-121-188Union M16X1.5 LH Straight Thru 455-069-538Union TC/TC 2'-12 UNC
RH
527-050-054Union ELS 1-1/4' BSP RH 464-200Union 3 Passage Special
1116-048-463Union M16 X 1.5 LH 468-100CKit Repair Suit 468-100 Series
157-050-151Union 1/2' BSP RH SIC/SIC ELS 500-023-395Union 2-12 UN RH
1005-095-045Union M10 X 1 RH With 500-023-396Union 2-12 UN LH
1500-000CKit Repair 1500-000 Series 500-023B395Kit Rebuild Suit
500-023-395 U
527-000-055Union 1-1/4' BSP LH 500-023B396Kit Rebuild Suit 500-023-396 U
2117-001CKit Repair Suit 2117-001 Serie 500-039-395Union 2'-12 UN RH
555-000-002Union 1-1/2' NPT LH 525-000-001Union 1-1/4' NPT RH
1005-020-038Union 1/8' NPT RH 525-000-002Union 1-1/4' NPT LH
1101-338-259Union M16 X 1.5 LH 525-000-026Union 1 3/4'-12 UN RH Special
250-094-016Union 1-14 UNS (PT) RH 525-000B001Kit Rebuild Suit 525-000-001
U
17-058-056Union Car Wash 3/8' NPT RH 525-000B054Kit Rebuild Suit
525-000-054 U
1116-048-059Union Sic/Sic 5/8'-18 UNF LH 525-042-122Union 1-1/4 BSP RH
Monoflow
1116-090-143Union M16 X 1.5 LH 525-079Elbow Duoflow 1/2' BSP Fixed S
557-000-001Union 1-1/2' NPT RH 525-086-054Union 1-1/4' BSP RH Special
557-000-002Union 1-1/2' NPT LH 525-086-055Union CG/C 1-1/4' BSP LH
1115-130-002Union SM 3/8' NPT RH 525-086B054Kit Rebuild Suit 525-086-054
U
357-050-222Union 1' BSP RH 525-086B055Kit Rebuild Suit 525-086-055 U
1117-002-116Union M16 X 1.5 LH 525-097-122Union 1-1/4' BSP RH ELS
17-025-012Union 5/8'-UNF RH Air/Hydrauli 525-097-123Union 1-1/4' BSP LH
ELS
1890-116CKit Repair 1890-116 Series 525-104Elbow Duoflow 3/4' Fixed Suppl
155-000-001Union 1/2' NPT RH 525-237Elbow Duoflow
357-050-223Union 1' BSP LH 525-301-054Union 1-1/4' BSP RH B-Port 1-1
6075-001CKit Repair Suit 6075-001 Serie 525-301-438Union 1-1/4' BSP RH
B-Port 1-1
1005-020-019Union 3/8'-24 UNF RH 525-301B054Kit Rebuild Suit 525-301-054 U
157-000-152Union 1/2' BSP LH Water Servic 525-583B712Kit Rebuild Suit
525-583-712 U
525-000KKit Repair Suit 525-000 Series 525-608-054Union 1-1/4' BSP RH
9150-001-103Union 1-1/2' NPT RH Steam Serv 527-000-002Union 1-1/4' NPT LH
9150-406 9125+915Elbow Duoflow 1/2' BSP Fixed S 527-000-026Union 1-3/4'-12
UNF RH
2117-005-109251Union 3/4' NPT RH 527-000-027Union 1-3/4'-12 UNF LH
257-050-012Union M22 X 1.5' RH 527-000B054Kit Rebuild Suit 527-000-054 U
525-189-031Union 1-3/4' 12 UN RH PT Rotor 527-000CKit Repair Suit 527-000
Series
1379-160CKit Repair 1379-160 Series 527-050-001Union 1-1/4' NPT RH ELS
1205-000-001Union 1-14 UNS RH 527-050B001Kit Rebuild Suit 527-050-001 U
1116-090-463Union M16 X 1.5 LH 54-050-178Union 3/8' BSP RH SS
555-468Elbow Duoflow 25.9 Rotating Su 55-000-004Union 5/8' - 18 UNF LH
555-013Elbow Duoflow Fixed Supply 3/4 55-000B001Kit Rebuild Suit
55-000-001 Un
9150-402 9125+915Elbow Duoflow 1/2' Rotating Sy 55-000B094Kit Rebuild Suit
55-000-094 Un
355-000B002Kit Rebuild Suit 355-000-002 U 55-000B095Kit Rebuild Suit
55-000-095 Un
555-000B198Kit Rebuild Suit 555-000-198 U 55-041-094Union 3/8' BSP RH
1102-070-078Union 5/8' UNF RH 55-041-095Union 3/8' BSP LH SM
D25-004-214Union 1' NPT RH Rotor 55-041B094Kit Rebuild Suit 55-041-094 Un
255-368Elbow Duoflow 1/4' BSP Fixed S 55-041B095Kit Rebuild Suit
55-041-095 Un
355-000B222Kit Rebuild Suit 355-000-222 U 55-120Elbow Duoflow M6X1 Fixed
Suppl
355-064B378Kit Rebuild Suit 355-064-378 U 55-147-152Union 3/8' NPT LH TC/C
Seals
9150-001B103Kit Rebuild Suit 9150-001-103 55-147-192Union TC/C 3/8' BSP LH
6100-017CKit Repair Suit 6100-017 Serie 55-147B193Kit Rebuild Suit
55-147-193 Un
555-000B002Kit Rebuild Suit 555-000-002 U 55-655B094Kit Rebuild Suit
55-655-094 Un
355-021-002Union 1' NPT RH 555-000-200Union M50 X 1.5 RH
355-021-019Union 1-1/2'-12 UNF RH 555-000-395Union 2'-12 UN RH
1115-000-017Union 5/8'-18 UNF LH 555-000-533Union Quick Connect Rotor
155-012Elbow Duoflow 1/8' NPT Fixed S 555-000-765Union FLG 3.93 OD
2117-005-105Union 3/4' BSP RH 555-016-311Union M50 X 1.5 RH
1005-113-332Union 1/8' NPT Female Rotor 555-033-154Union 1-1/2' NPT RH ELS
Seals
1005-000-001Union 1/8' Tap 90 Shaft Mount 555-033-288Union 1-1/2' BSP RH
527-000B001Kit Rebuild Suit 527-000-001 U 555-033-289Union 1-1/2' BSP LH
57-000-001Union 3/8' NPT RH 555-033B154Kit Rebuild Suit 555-033-154 U
255-000B284Kit Rebuild Suit 255-000-284 U 555-033B288Kit Rebuild Suit
555-033-288 U
6100-001CKit Repair Suit 6100-001C Seri 555-033B289Kit Rebuild Suit
555-033-289
257-000-003Union 1-1/4' UNS RH Rotor CG/S 555-037-198Union 1-1/2' BSP RH
Union
1890-100CKit Repair 1890-100 Series 555-037-199Union 1-1/2' BSP LH
1005-113-063Union 1/8' NPT RH Rotor 555-037B198Kit Rebuild Suit
555-037-198 U
255-056-284Union CG/C 3/4' BSP RH Rotor 555-037B199Kit Rebuild Suit
555-037-199 U
255-000-012Union M22 X 1.5 RH PT Rotor 555-058B198Kit Rebuild
350-083Elbow Duoflow 3/8' NPT Fixed S 555-385B198Kit Rebuild Suit
555-000-198 U
1205-000-002Union 1-1/4' UNS LH 555-459B911Kit Rebuild Suit 555-459-911 U
55-000B002Kit Rebuild Suit 55-000-002 Un 555-459B912Kit Rebuild Suit
555-459-912 U
1890-060CKit Repair 1890-060 Series 557-000-200Union M50 X 1.5 RH
57-000CKit Repair Suit 57-000 Series 557-000-201Union M50 X 1.5 LH
155-000-002Union 1/2' NPT LH 557-000-395Union 2'-12 UN RH
2200-000CKit Repair To Suit Union 2200- 557-000-396Union 2'-12 UN LH
21-001CKit Repair Suit 21-001 Series 557-045-198Union 1-1/2' BSP RH
155-950Elbow 10mm X 313mm 557-045-199Union 1-1/2' BSP LH
1115-000-002Union 3/8 NPT RH 557-050-199Union 1-1/2' BSP LH ELS
255-043Elbow Duoflow 1/4' NPT Fixed S 557-050B198Kit Rebuild Suit
557-050-198 U
155-000-021Union 3/4' UNF RH 557-050B199Kit Rebuild Suit 557-050-199 U
55-637-094Union 3/8' BSP RH 557-050CKit Repair Suit 557-050 Series
250-094KKit Repair 250-094 Series 57-000-003Union 5/8' - 18 UNF RH
55-030Elbow Duoflow 1/4' Fixed Suppl 57-000-004Union 5/8' - 18 UNF LH
155-061Elbow Duoflow 3/8' Rotating Su 57-050-001Union 3/8' NPT RH ELS
525-007Elbow Duoflow 1/2' NPT Fixed S 57-050-003Union 5/8' - 18 UNF RH ELS
17-025CKit Repair 17-025C Series 57-050-094Union 3/8' BSP RH ELS
9100-400Elbow Duoflow 1/4' NPT Fixed S 57-050CKit Repair Suit 57-050
Series
555-221Elbow Duoflow 3/4' Fixed Suppl 6037-001-101Union 5/8' - 18 UNF RH
AP10-010-210Union 3/8' BSP RH AP Series 6037-001-102Union 5/8' - 18 UNF LH
AP10-011-214Union 3/8' NPT RH AP Series 6037-001-116Union 3/8' NPT RH
AP12-010-210Union 1/2' BSP RH AP Series 6037-001-117Union 3/8' NPT LH
AP8-010-210Union 1/4' BSP. RH AP Series 6037-001-125Union 3/8' BSP RH
C15D-004-02-3AUnion HPS Steam Service 6037-001CKit Repair Suit 6037-001
Serie
C15D-004CKit Repair HPS Union 6037-021-125Union 3/8'-19 BSP RH
D10-004-214Union 3/8' NPT RH. D Series 6075-001-132Union 3/4' BSP RH
D12-003-210Union 1/2' BSP RH Rotor 6075-001-133Union 3/4' BSP LH
D12-004-214Union 1/2' NPT RH Rotor 6075-001-134Union 1/2' NPT RH
D20-003-210Union 3/4' BSP RH D Series 6075-001-135Union 1/2' NPT LH
D25-003-210Union 1' BSP RH D Series 6075-029-136Union 1/2' BSP RH
D32-003-210Union 1-1/4' BSP RH D Series 6075-029CKit Repair Suit 6075-029
Serie
D32-004-214Union 1' NPT RH. D Series 6075-031CKit Repair Suit 6075-031
Serie
N10-020-210Union. 3/8' BSP RH 6100-001-101Union 1' NPT RH
N10-020-214Union 3/8' NPT RH Steam Servic 6100-001-102Union 1' NPT LH
N10-020B214Kit Rebuild Suit N10-020B214 6100-001-121Union 1' BSP RH CG/C
N12-020-210Union 1/2' BSP RH Monoflow Ste 6100-001-122Union 1' BSP LH
N12-023-211701Union 1/2' BSP LH Duoflow Hot 6100-001-123Union 1-1/2' - 12
UNF RH
N12-023B211Kit Rebuild 1/2' BSP LH Hot Oi 6100-017-101Union 1' NPT RH TC/C
Seals
1005-000-019Union 3/8'-24 UNS RH Shaft Mou 6100-017-123Union 1-1/2' - 12
UNF
1005-000-037Union M10 RH Shaft Mount 6200-001-123Union Water 2' NPT RH
Monoflow
1005-000-038Union 1/8' NPT RH Shaft Mount 6200-001CKit Repair Suit
6200-001 Serie
1005-000B001Kit Rebuild Suit 1005-000-001 6200-002-115Union Duoflow 9'
Flange Rotor
1005-020-037Union M10 X 1 RH 6200-002-139Union 2' BSP LH Duoflow
1005-020-039Union 3/8'-24 UNF LH 6200-002CKit Repair Suit 6200-002 Serie
1005-020-061Union 5/8'-18 UNF RH 6250-001CKit Repair Suit 6250-001 Serie
1005-020B019Kit Rebuild Suit 1005-020-019 6250-002-300Union Duo 9' Flange
1005-020B049Kit Rebuild Suit 1005-020-049 6250-002CKit Repair Suit
6250-002 Serie
1005-057-019Union 3/8' UNS RH Hi Press Sea 6250-018-121Union 2-1/2' BSP RH
1005-057-049Union 1/4' BSP RH Hi Press Sea 6250-030-121Union Duoflow
2-1/2' BSP RH EL
1005-057-157158 SUnion Hi Press Seal 9/16 SAE R 6250-030CKit Repair Suit
6250-030 Serie
1005-113-110Union 5/16'-24 UNF RH 6250-111Cap End Suit 6250-030-121 'spe
1005-130-038Union 1/8' NPT RH Rotor 6300-001CKit Repair Suit 6300-001
Serie
1005-163B037Kit Rebuild M10x1 RH 6300-002CKit Repair Suit 6300-002 Serie
1005-220-038Union 1/8' NPT RH Rotor 6300-040-103Union ELS Duo Fixed Siphon
Fla
1101-235-236Union 5/8'-18 UNF LH .625 SIC/ 6300-040CKit Repair Suit
6300-040 Serie
1101-235-238Union 5/8'-18 UNF LH .655 6300-125Elbow Duoflow Fixed Pipe
Type
1101-235-259Union M16 X 1.5 LH 16mm SIC/SI 6400-031CKit Repair Suit
6400-031 Serie
1101-235-343Union M16 X 1.5 LH 18mm Pilot 6400-048CKit Repair Suit
6400-048 Serie
1101-235B238Kit Rebuild Suit 1101-235-238 655-000KKit Repair Suit 655-000
Series
1102-025-001004 9Union CG/TS 1/4' NPT B Port 1/ 655-500-117Union 2' NPT LH
1102-025-005Union 1/4' NPT Tap In Shaft 655-500-125Union 2' BSP LH
1102-025B001Kit Rebuild Suit 1102-025-0010 655-515-124Union 2' BSP RH Air
Service Sp
1102-070-079Union 5/8' - 18 UNF LH 657-000-116Union 2' NPT RH
1102-070-081Union 1/4' NPT RH 657-000-117Union 2' NPT LH
1102-070-082Union 1/4' NPT LH 657-000-125Union 2' BSP LH
1102-070-104Union 1/4' BSP LH 657-000CKit Repair Suit 657-000 Series
1102-070-166Union 35mm FLG (29F) 657-050-124Union 2' BSP RH Rotor
1102-070B029Kit Rebuild Suit 1102-070-029 657-050B124Kit Rebuild ELS 2'
BSP RH
1102-070B078Kit Rebuild Suit 1102-070-078 755-117Elbow Duoflow 2 X 1-1/4'
NPT 9
1102-070B079Kit Rebuild Suit 1102-070-079 755-700-330Union 2-1/2' BSP RH
1102-070B082Kit Rebuild Suit 1102-070-082 755-700-411Union 2-1/2' BSP LH
1108-001-102Union 5/8'-18 UNF LH PLT 755-700-413117Union 2-1/2' NPT RH
Duoflow
1109-010-165Union 5/8'-18 UNF LH 755-701-330117Union TC/C 2.5' BSP RH
Rotor
1109-010-188Union M16 X 1.5 LH 755-701B330Kit Rebuild 2-1/2' BSP RH Roto
1109-021-188Union M16 X 1.5 LH Coolant Ser 755-701CKit Repair Suit 755-701
Series
1109-021-192Union M16 X 1.5 LH 755-702B413Kit Rebuild
1109-023-212Union M16 X 1.5 LH 755-707-411Union 2 1/2' BSP LH Rotor
1109-024-212Union M16 X 1.5' LH 755-707B411Kit Rebuild Suit 755-707-411 U
1109-040-388Union 3/8' 90 Degree End Cap 755-713B495Kit Rebuild Suit 755
Series Un
1109-041-192Union M16 X 1.5 LH 755-731-330139Union Rotating 2-1/2' BSP RH
1109-043-412Union M16 X 1.5 LH 755-732B411Kit Rebuild Suit 755 Series Un
1109-044-220Union M16 X 1.5 LH 755-747CKit Repair
1109-640-644Union Pop-Off Coolant Service 755-788CKit Repair
1115-000B001Kit Rebuild Suit 1115-000-001 857-000CKit Repair 857-000
Series
1115-000B017Kit Rebuild Suit 1115-000-017 857-001-119Union 3' BSP LH T/II
Duoflow F
1115-009-386Union CG/SIC 5/8-18 UNF LH Rot 857-020CKit Repair 857-020
Series
1115-130-017Union SM 5/8'-18 UNF LH Rotor 902-111-165Union 5/8'-18 UNF LH
.655 PLT
1115-179-345Union 5/8'-18 UNF RH 902-111-192Union M16 X 1.5 LH
1116-020-248Union 3/8' NPH RH 902-120-101Union. Coolant
1116-048-043Union Sic/Sic 5/8'-18 UNF RH 902-131-217Union 12mm Male Pilot
1116-048-051Union 5/8' UNF LH 902-225-104Union Coolant
1116-048-064Union 5/8'-18 UNF RH 9075-001-106Union 3/4' NPT RH
1116-048-143Union M16 X 1.5 LH PLT 9075-001-107Union 3/4' NPT LH
1116-048B051Kit Rebuild Suit 1116-048-051 9075-001B106Kit Rebuild Suit
9075-001-106
1116-048B059Kit Rebuild Suit 1116-048-059 9075-014-126Union 3/4' BSP RH
1116-048B064Kit Rebuild Suit 1116-048-064 9075-014B126 Kit Rebuild Suit
9075-014-126
1116-090-043Union 5/8'-18 UNF RH 9075-020-124Union 3/4' NPT RH Hot Oil
Serv
1116-090-051Union 3/8 NPT 5/8-18NF LH 9075-020-125Union 3/4' NPH LH Hot
Oil Serv
1116-090-064Union 5/8'-18 UNF RH 9075-020B124Kit Rebuild Suit
9075-020-124
1116-090-249Union 5/8' 18 UNF RH 9075-020B125Kit Rebuild Suit 9075-020-125
1116-090B059Kit Rebuild Suit 1116-090-059 9075-029-110Union 3/4' BSP RH
Steam Servic
1116-090B249Kit Rebuild Suit 1116-090-249 9075-029-110409Union 3/4' BSP RH
Duoflow With
1116-319-248Union 3/8' NPT RH SM 9075-029-111Union 3/4' BSP LH Steam
Servic
1116-555-463Union M16 X 1.5 SA-090 9075-030-126Union 3/4' BSP RH Hot Oil
Serv
1116-600-059Union 5/8' 18 UNF Straight LH 9100-001-103135Union 1' NPT RH
Special
1116-600-463Union Coolant M16 X 1.5 LH 9100-001-109Union 1' NPT LH Steam
Service
1116-610-463Union Sic/Sic M16 X 1.5 LH 9100-001B103Kit Rebuild Suit
9100-001-103
1116-672-043Union 5/8'-18 UNF RH 9100-001B109Kit Rebuild Suit 9100-001-109
1129-033-301Union M16 X 1.5 9100-020B220Kit Rebuild Suit 9100-020-220
1139-032-301Union Bearingless Deublin 9100-020B221Kit Rebuild Suit
9100-020-221
1205-000-003Union 1/2' NPT RH 9100-027-112Union 1' BSP LH Steam Service
1205-000-004Union 1/2' NPT LH 9100-027-112408 Union 1' BSP LH Steam Duo
Fixe
1205-000-013Union 1/2' BSP LH 9100-027-113Union 1' BSP RH Steam Service
1205-000-019Union 3/4' NPT RH 9100-027B112Kit Rebuild Suit 9100-027-112
1205-000-025Union 3/4'-16 UNF LH 9100-027B113Kit Rebuild Suit 9100-027-113
1205-000-039Union 3/4'-16 UNF RH 9100-045-211Union 1' BSP RH Hot Oil
Servic
1205-000-586Union 1/2' BSP RH 9100-045-212Union 1' BSP LH Hot Oil
1205-000B025Kit Rebuild Suit 1205-000-025 9100-045B211Kit Rebuild Suit
9100-045-211
1205-011-012Union 1/2' BSP RH Rotor 1/2' B 9100-045B212Kit Rebuild Suit
9100-045-212
1205-065-001Union 1-14 UNS RH 9100-403Elbow Duoflow Rotating Siphon
1205-065-021Union 3/4' BSP RH 9100-409Elbow Duoflow Fixed Syphon 1/4
1300-082-014Union 5/8' UNF RH 9125-001-109Union 1-1/4' NPT RH Steam Serv
1300-082-104Union 3/8' BSP RH 9125-001-110400Union 1-1/4' NPT LH Duoflow
Wi
1300-084-002Union 3/8' NPT RH 9125-001B109Kit Rebuild Suit 9125-001-109
1300-084-023Union 5/8'-18 UNF RH Rotor 9125-001B110Kit Rebuild Suit
9125-001-110
1300-084CKit Repair 1300-084 Series 9125-015-118Union 1-1/4' BSP RH Steam
Serv
1379-160Union 4 Passage 3/8 Inch BSP 9125-015-119Union 1-1/4' BSP LH Steam
Serv
1379-460Union 4 Passage 3/8 Inch NPT 9125-015B118Kit Rebuild Suit
9125-015-118
1379-495Union 4 Passage Water 3/8' NPT 9125-020-139Union 1-1/4' NPT RH Hot
Oil Se
1379-520Union 4 Passage Water 3/8' BSP 9125-020-140Union 1-1/4' NPT LH Hot
Oil Se
14075-004-447Union 3/4' BSP RH 9125-020B139Kit Rebuild Suit 9125-020-139
1500-194Union Deu-plex With Oil Wick 9125-020B140Kit Rebuild Suit
9125-020-140
1500-250Union Deu-plex Air Service Met 9125-030-137Union 1-1/4' BSP RH Hot
Oil Se
1500-367Union Deu-plex 1/2' NPT Ports 9125-030B137Kit Rebuild Suit
9125-030-137
154-015B178Kit Rebuild Suit 154-015-178 U 9150-001-104400Union 1-1/2' NPT
LH Duoflow
155-000-022Union 3/4'-16 UNF LH 9150-018-113Union 1-1/2' BSP RH Steam Serv
155-000-119Union 1/2' BSPT RH Special Rot 9150-018-114Union 1-1/2' BSP LH
Steam Serv
155-000B022Kit Rebuild Suit 155-000-022 U 9150-018B113Kit Rebuild Suit
9150-018-113
155-000B151Kit Rebuild Suit 155-000-151 U 9150-020-195Union 1-1/2' NPT RH.
Hot Oil S
155-139B151Kit Rebuild Suit 155-139-151 U 9150-020B195Kit Rebuild Suit
9150-020-195
155-199Elbow Duoflow 1/8' BSP Fixed S 9150-020B196Kit Rebuild Suit
9150-020-196
155-208-252Union 1/2' BSP RH ELS Seals 9150-124 9125+915Elbow Duoflow 3/4'
NPT Syphon
155-208B113Kit Rebuild Suit 155-208-113 U 9150-401 9125+915Elbow Duoflow
3/4' NPT Fixed S
155-208B252Kit Rebuild Suit 155-208-252 U 9200-001-102Union 2' NPT RH
155-208B253Kit Rebuild Suit 155-208-253 U 9200-001-102401Union 2' NPT RH
Duo
155-339-151Union L/T 1/2' BSP RH 9200-001-111Union 2' NPT LH
155-471Elbow Duoflow 9.9mm Rotating S 9200-001-121403Union Quick Connect
Duoflow Ro
155-604-151Union 1/2' BSP RH 9200-001B102Kit Rebuild Suit 9200-001-102
155-604B151Kit Rebuild Suit 155-604-151 U 9200-001B121Kit Rebuild Suit
9200-001-121
155-604KKit Repair 9200-020-122Union 2' Quick Connect. Hot Oi
155-907B021Kit Rebuild Suit 155-907-021 U 9200-029-118Union 2' BSP LH
157-000-001Union 1/2' NPT RH 9200-029B118Kit Rebuild Suit 9200-029-118
157-000-002Union 1/2' NPT LH 9200-030-119Union 2' BSP RH
157-006-021Union 3/4'-16 UNF RH 9200-030B120Kit Rebuild 2' BSP LH
157-006-022Union 3/4'-16 UNF LH 9200-138Wedge Set Split
157-006B021Kit Rebuild Suit 157-006-021 U 9200-433Elbow 9150 & 9200 Series
Fixed
157-045-119Union 1/2' PT RH 927-150-151Union High Pressure Water 3/4'
157-050-001Union 1/2' NPT RH SIC/SIC 927-150B151Kit Rebuild Suit
927-150-151 U
157-050-021061Union SIC/SIC 3/4-16 UNF RH 943-700Union Bearingless CG/SIC
157-050-022Union 3/4'-16UNF LH ELS SEALS






Deublin Rotary Unions and Swivel Joints Authorized Distributor

信德迈科技(北京)有限公司 CNMEC Technology (Beijing) Co., Ltd
.
地址:北京朝阳区望京街10号望京SOHO-T1-C座2115室 邮编:100102
企业博客Blog:http://blog.sina.com.cn/cnmectech
电话:010 - 8428 2935,8428 9077 ,8428 3983
手机:13910962635
传真:010 - 8428 8762
网站:Http://www.cnmec.net
Email:sales@cnmec.biz
