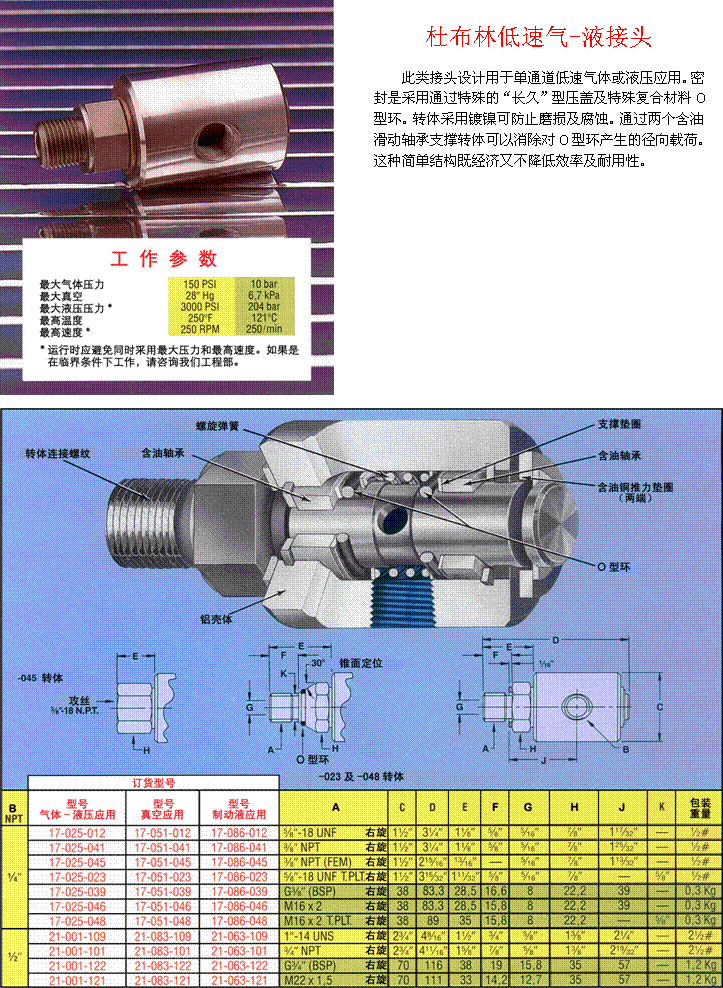

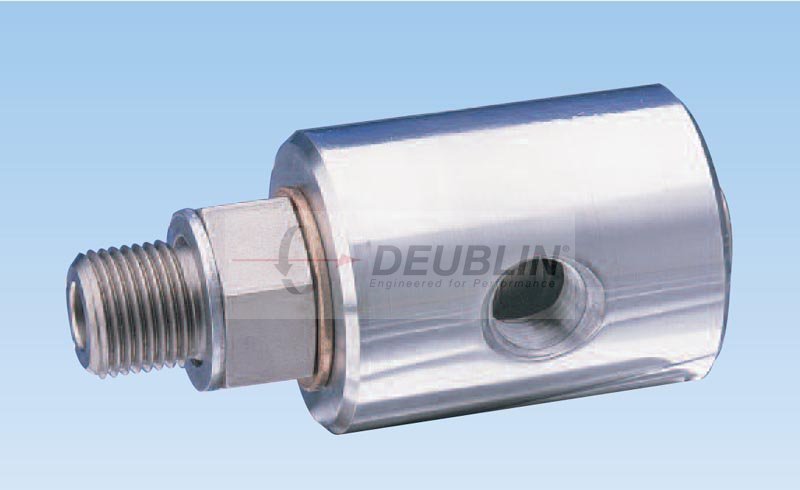

DEUBLIN 低速气体、液压、制动液低速应用接头
DEUBLIN Rotating Union for Air, Hydraulic Oil, Brake Fluid and Vacuum Service, DN 8 and 15

DEUBLIN接头设计用于单通道低速气体或液压应用。密封是采用通过特殊的“长久”型压盖及特殊复合材料 O 型环。转体采用镀镍可防止磨损及腐蚀。通过两个含油滑动轴承支撑转体可以消除对 O 型环产生的径向载荷。这种简单结构既经济又不降低效率及耐用性。

特点:

- 单通道设计
- 自带支撑旋转接头
- 镀镍钢转体
- 径向壳体连接
- 专用轴承
- 铝壳体

操作参数;
最大空气压力: 10bar
最大真空度: 6.7kpa
最大液压:210bar
最大转速: 250r/min
最大温度: 120℃

DEUBLIN Rotating Union for Air, Hydraulic Oil, Brake Fluid and Vacuum Service, DN 8 and 15
PDF CATALOG



订货型号:

1/4"
17-025-012、17-051-012、17-086-012
17-025-041、17-051-041、17-086-041
17-025-045、17-051-045、17-086-045
17-025-023、17-051-023、17-086-023
17-025-039、17-051-039、17-086-039
17-025-046、17-051-046、17-086-046
17-025-048、17-051-048、17-086-048

1/2"
21-001-109、21-083-109、21-063-109
21-001-101、21-083-101、21-063-101
21-001-122、21-083-122、21-063-122
21-001-121、21-083-121、21-063-121



B Port NPT 订货型号
空气-液压 真空 制动液
1/4” 17-025-012 17-051-012 17-086-012
17-025-041 17-051-041 17-086-041
17-025-045 17-051-045 17-086-045
17-025-023 17-051-023 17-086-023
17-025-039 17-051-039 17-086-039
17-025-046 17-051-046 17-086-046
17-025-048 17-051-048 17-086-048
1/2” 21-001-109 21-083-109 21-063-109
21-001-101 21-083-101 21-063-101
21-001-122 21-083-122 21-063-122
21-001-121 21-083-121 21-063-121

17-014C REPAIR KIT
17-016C REPAIR KIT
17-025-012 UNION,5/8-18 UNF RH ROTOR
17-025-021 UNION,1/4" NPT RH ROTOR
17-025-023005 UNION,5/8-18 UNF RH,BEVEL PLT
17-025-039 UNION,3/8" BSP RH ROTOR
17-025-041 UNION,3/8" NPT RH ROTOR
17-025-045 UNION,3/8" NPT RH FEM ROTOR
17-025-046 UNION,M16X2 RH ROTOR
17-025-139 UNION,3/4" NPT RH ROTOR
17-025C REPAIR KIT
17-030-012 UNION,5/8-18 UNF RH ROTOR
17-030-041 UNION,3/8 NPT RH ROTOR
17-030C REPAIR KIT
17-050-012 UNION,5/8-18 UNF RH ROTOR
17-050-041 UNION,3/8" NPT RH ROTOR
17-050-045 UNION,3/8" NPT RH FEM ROTOR
17-050C REPAIR KIT
17-051-000 UNION,LESS ROTOR
17-051-012 UNION,5/8-18 UNF RH ROTOR
17-051-021 UNION,1/4" NPT RH ROTOR
17-051-023005 UNION,5/8-18 UNF RH PLT ROTOR
17-051-039 UNION,3/8" BSP RH ROTOR
17-051-041 UNION,3/8" NPT RH ROTOR
17-051-045 UNION,3/8" NPT RH FEM ROTOR
17-051-046 UNION,M16X2 RH ROTOR
17-051-149 UNION,5/8-18 RH ROTOR
17-051C REPAIR KIT
17-058-056 UNION,3/8" NPT RH ROTOR
17-058-149 UNION,5/8-18 RH ROTOR
17-058C REPAIR KIT
17-062 UNION
17-062C REPAIR KIT
17-066-061 UNION,1/4" NPT RH FEM ROTOR
17-086-012 UNION,5/8-18 UNF RH ROTOR
17-086-021 UNION,1/4" NPT RH ROTOR
17-086-023060 UNION,5/8-18 UNF RH ROTOR
17-086-039 UNION,3/8" BSP RH ROTOR
17-086-041 UNION,3/8" NPT RH ROTOR
17-086-045 UNION,3/8" NPT RH TAPPED ROTOR
17-086-046 UNION,M16X2 RH ROTOR
17-086C REPAIR KIT
17-089-045 UNION,3/8" NPT RH FEM ROTOR
17-090-012 UNION,5/8-18 UNF RH ROTOR
17-090-041 UNION,3/8" NPT RH ROTOR
17-289-045 UNION,3/8" NPT TAPPED ROTOR
17-300-012 UNION,5/8-18 UNF RH ROTOR
1700-000 DEUPLEX UNION
1700-000C REPAIR KIT

21-001-000 UNION,LESS ROTOR
21-001-101 UNION,3/4" NPT RH ROTOR
21-001-109 UNION,1-14 UNS RH ROTOR
21-001-113 UNION,1/2" NPT RH ROTOR
21-001-121 UNION,M22X1.5 RH ROTOR
21-001-122 UNION,3/4" BSP RH ROTOR
21-001C REPAIR KIT
21-040-101 UNION,3/4" NPT RH ROTOR
21-040-109 UNION,1-14 UNS RH ROTOR
21-040-113 UNION,1/2" NPT RH ROTOR
21-040-122 UNION,3/4" BSP RH ROTOR
21-040-123 UNI0N,3/4" NPT LH ROTOR
21-040C REPAIR KIT
21-042-109 UNION,1-14 UNS RH ROTOR
21-042C REPAIR KIT
21-060-101 UNION,3/4" NPT RH ROTOR
21-060-113 UNION,1/2" NPT RH ROTOR
21-060C REPAIR KIT
21-063-101 UNION,3/4" NPT RH ROTOR
21-063-109 UNION,1-14 UNS RH ROTOR
21-063-122 UNION,3/4 BSP RH ROTOR
21-063C REPAIR KIT
21-081-101 UNION,3/4" NPT RH ROTOR
21-081-109 UNION,1-14 UNS RH ROTOR
21-081-149 UNION,3/4" NPT FEMALE ROTOR
21-081B149 REBUILD KIT,3/4" NPT FEMALE
21-081C REPAIR KIT
21-082-101 UNION,3/4" NPT RH ROTOR
21-082-113 UNION,1/2" NPT RH ROTOR
21-082C REPAIR KIT
21-083-101 UNION,3/4" NPT RH ROTOR
21-083-109 UNION,1-14 UNS RH ROTOR
21-083-113 UNION,1/2" NPT RH
21-083-122 UNION,3/4 BSP RH ROTOR
21-210-101 UNION,3/4" NPT RH ROTOR
21-210-109 UNION,1-14 UNS RH ROTOR
21-210C REPAIR KIT

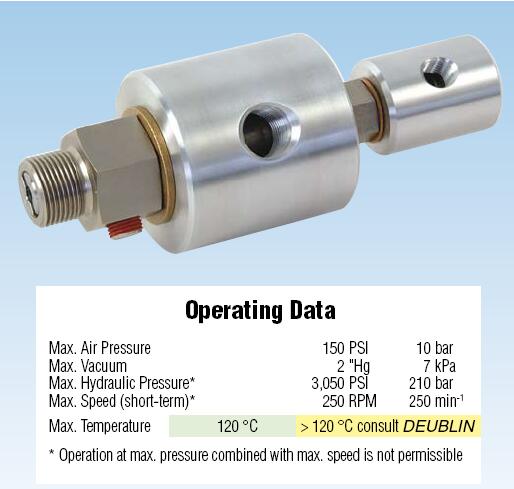

Deublin双路串联式气体、液压、制动液接头 Air-Hydraulic Two Passage Unions - 1/4"
DEUBLIN Tandem Air, Hydraulic, Brake Fluid Dual Passage Unions

DEUBLIN 2117系列旋转接头是由 2 个接头串联组成,每个接头有各自独立的密封件,完全能够防止通道间的交叉泄漏或“串流”。如果有泄漏发生,只是泄漏到大气里,而决可能泄漏到另一通道。这种接头实际上能够应用于气体、真空、液压油等不同介质的组合应用。对于工作参数中没有包括的介质,请与我公司工程部联系。
