美国Barco旋转接头 - Serving Industry With the Highest Quality
Rotary Unions and Swivel Joints Since 1908

美国Barco自1908 年以来为工业提供了顶级品质的旋转活接头和旋转接头。Barco设计的产品能满足广泛范围的各种应用,包括各种规格、压力、速度和温度,并能处理广泛范围的介质。Serving Industry With the Highest Quality Rotary Unions and Swivel Joints Since 1908 DEUBLIN engineered products meet a wide variety of applications requiring various sizes, pressures, speeds,and temperatures and handle a broad range of media.

- Barco Rotary Unions and Swivel Joints产品范围

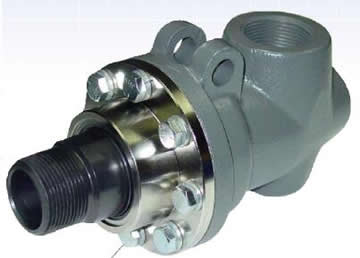

BC-54000系列用于蒸汽介质的双流式固定虹吸管旋转接头

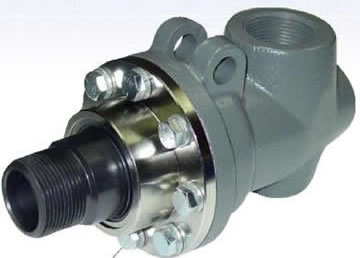

BC-54100 系列用于高压蒸汽的单流式旋转接头

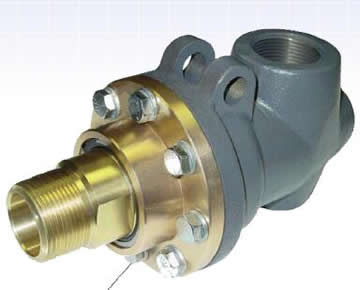

Barco BC-54065系列用于水和低压蒸汽的双流式固定虹吸管旋转接头

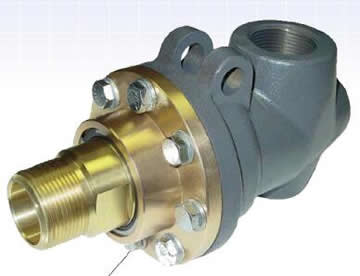

Barco BC-54165 系列用于水和低压蒸汽的单流式旋转接头

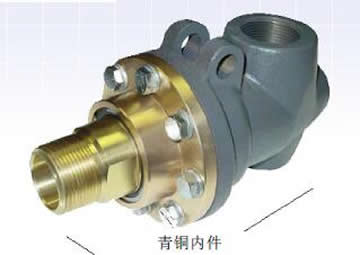

Barco BC-54205用于水、蒸汽和热油的双流式旋转虹吸管旋转接头

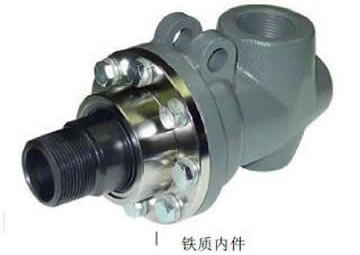

Barco BC-54206用于水、蒸汽和热油的双流式旋转虹吸管旋转接头

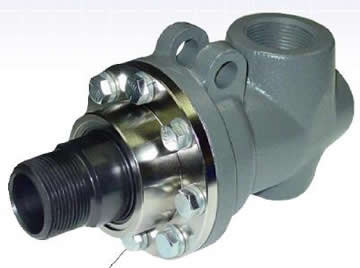

Barco BC-54000系列用于热油的双流式固定虹吸管旋转接头

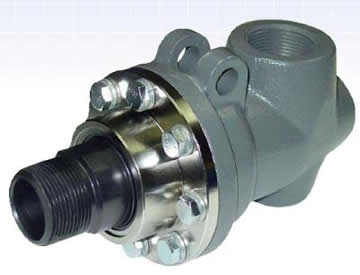

Barco BC-54100 系列用于热油单流式旋转接头

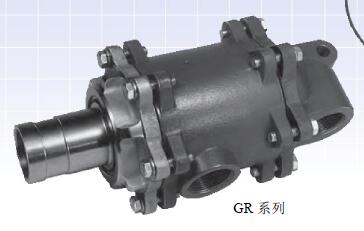

GR和GRX旋转蒸汽接头用于开式齿轮造纸机械的旋转蒸汽接头
旋转蒸汽接头

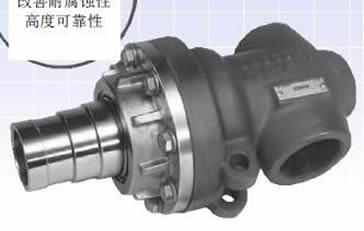

Super G用于开式齿轮造纸机械的旋转蒸汽接头旋转接头

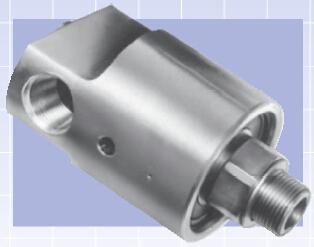

旋转活接头
Rotary Unions

设计用于要求在固定管道和持续旋转的机器之间能提供正常密封的应用用途。它们主要应用于印刷业、造纸业、橡胶业、塑料业、食品加工和
机床工业。

工作数据
规格范围:1/4’’-4’’
压力:最高达1500 psi
速度:最高达10,000 RPM
温度:最高达446℉
介质包括:蒸汽、水、盐水、
油、气体、传热流体、空气、
液压油和冷却剂。

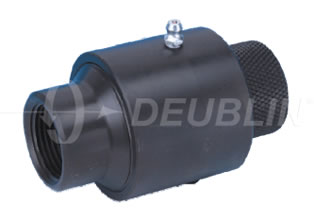

平面旋转接头
Plane Swivel Joints

能够在管道系统组件之间从单面或者多面提供360°移动,以便输送或传递流体。它们主要用于自动汽车冲洗装置,用于流体输送和转运的装载臂,软管卷盘组件、植物加工机械、钢厂氧气喷枪和浮顶油罐排放系统。

工作数据
规格范围:1’’-8’’
压力:最高达3000 psi
温度:最高达446℉
介质包括:蒸汽、油、水、
气体和化学品。

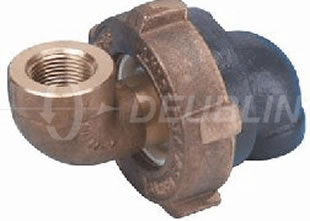

自对中旋转接头
DEUBLIN Type Self-Align Swivel Joints

这是操作旋转和角度对中移动的直接方法,同时能确保管道系统构件之间的正常密封。它们主要用于印压机、食品加工机械和刨花板压机。

工作数据
规格范围:3/8’’-2’’
压力:最高达700 psi
温度:最高达446℉
介质包括:蒸汽、热油、
水,以及交替的蒸汽和水。

定制的专用接头
Custom-Designed Specials


为满足您的特殊需求,我公司技艺精湛的工程师采用先进的计算机辅助设计和制造技术,将设计并制造出满足您特别要求的产品。



Deublin杜博林的“热油”接头建议用于在温度最高达+446℉(+230 ℃)时循环系统采用Dowtherm(道氏热载体)和其他传热流体的应用中。“CO”型号的热油接头已经经过现场测试,证明是在所有经过试验的接头中唯一的合格接头。该接头正成功地应用于一系列的造纸业、纺织业和橡胶产品机械的制造商设计的机器设备中。目前使用的许多油品都会在高温下结焦,且沉淀物会沉积在接头中,必须定期清理以清除该残 余物。另外,系统中的热点也可能会生成该物质。杜博林建议在旋转接头的上游安装一个40-60 微米的过滤器,以收集该物质并防止其进入接头。

产品选型资料下载:


Barco Type C & CS Rotary Unions and Swivel Joints

Barco Type CF & CSF Rotary Unions and Swivel Joints

Barco Hot Oil Rotary Unions

Barco Type CR & CRF Rotary Unions and Swivel Joints

Barco Type Super G Rotary Unions and Swivel Joints

Barco Syphon Elbows

Barco Type GR Rotary Unions and Swivel Joints

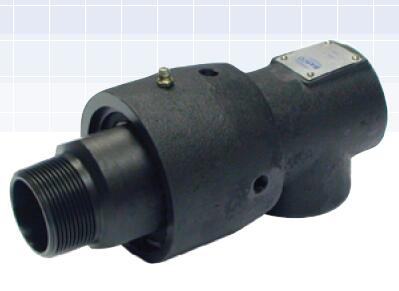

Barco Type E-75RS & RSX Rotary Unions and Swivel Joints


Barco Type CF & CSF Steam Rotary Unions

Barco Type CR & CRF Steam Rotary Unions

Barco Type Super G Steam Rotary Unions

Barco Type GR Steam Rotary Unions

Barco BLS Coolant Rotary Unions

Barco SFL Coolant Rotary Unions

Barco Type C & CS Water Rotary Unions

Barco Type CF & CSF Water Rotary Unions

Barco Type CR & CRF Water Rotary Unions


Barco Type E-75RS & RSX Water Rotary Unions


Barco Plane Swivels Joints



Barco BLS Series Rotary Unions

Barco E75RS Rotary Unions

Barco GR Series Rotary Unions

Barco Series E-1 Rotary Union

Barco Self Aligning Swivel Joint

Barco Duo-Flow Elbows

Barco BLS Rotary Unions

Barco SFL Rotary Unions




Barco Series GRX Steam Joints for Rotary Syphons

Barco Series G Steam Joints for Stationary Syphons

Barco Paper Industry Products

Barco Type C for Steam & Hot Oil Unions


BARCO BC-32038-32-01 旋转接头
BARCO BC-54065-32-50B 接头
BARCO BC-54206-48-60 旋转接头
Barco BC54000-40-60

BC-54000-08-50
BC-54000-08-51
BC-54000-12-50
BC-54000-12-51
BC-54000-16-50
BC-54000-16-51
BC-54000-16-60
BC-54000-16-62
BC-54000-20-50
BC-54000-20-51
BC-54000-20-62
BC-54000-24-50
BC-54000-24-51
BC-54000-24-60
BC-54000-24-62
BC-54000-32-50
BC-54000-32-51
BC-54000-32-60
BC-54000-32-62
BC-54000-40-50
BC-54000-40-51
BC-54000-40-60
BC-54000-40-62
BC-54000-48-50
BC-54000-48-51
BC-54000-48-60
BC-54000-48-62





Deublin Company Acquires Barco Seals
Deublin Company收购Barco Seals



美国杜博林deublin公司2012年收购了位于卡里伊利诺斯的美国Barco Seals公司,这两家公司都是生产应用于几乎无限宽广领域的各种旋转设备之间介质传输的旋转接头制造商 。从2012年12月1号开始美国杜博林deublin公司全面接管barco在全球的产品咨询,销售以及售后服务业务。信德迈科技(北京)有限公司作为美国杜博林旋转接头在中国的授权代理商,将竭力为中国的客户提供barco产品的销售以及技术支持。Effective December 1, 2012, Deublin Company has acquired Barco Seals of Cary, Illinois. Both companies manufacture Rotating Unions for the transmission of pressurized fluid into rotating machinery for a variety of equipment and process industries.



Deublin acquires Barco
December 14, 2012 06:07 AM


Deublin Company has acquired Barco Seals of Cary, Illinois. Both companies manufacture Rotating Unions for the transmission of pressurized fluid into rotating machinery for a variety of equipment and process industries.

Founded in 1908, Barco developed swivels and ball joints for the railroad industry. Over the years, Barco developed and manufactured hundreds of rotating unions, plane and self-aligning swivel joints.

Deublin Company was founded in 1945. Deublin manufactures a broad range of precision components including rotating unions, steam joints and siphon systems, and electrical slip rings. Applications include machine tools, steel manufacturing, oil and gas exploration, paper and corrugating equipment, wind turbines, mining and more.

"The Barco acquisition brings together two great brands with similar applications, along with many new products and markets", explains Rob O'Brien, Vice President Sales and Marketing.



DEUBLIN Company Acquires Barco Seals
2013-05-14 13:30

Waukegan, IL—December 3, 2012—Effective December 1, 2012, DEUBLIN Company has acquired Barco of Cary, IL. Both companies manufacture rotary unions used in a variety of equipment and process industries.

Founded in 1908, Barco developed swivels and ball joints for the railroad industry. Over the years, Barco developed and manufactured a wide variety of rotary unions, steam & hot oil joints, plane and self-aligning swivel joints. Previously, Barco was owned by Aeroquip Corporation, and most recently, Marison Industries.

DEUBLIN Company was founded in 1945, and manufactures a broad range of precision components including rotating unions, steam joints and siphons, and electrical slip rings. Applications include machine tools, printing, plastics, tire & rubber, steel manufacturing, oil and gas exploration, paper and corrugating equipment, wind turbines, mining and more.

“The Barco acquisition brings together two great brands with similar applications, along with many new products and markets,” explains Rob O’Brien, Vice President Sales and Marketing of DEUBLIN Company.

DEUBLIN Company is privately held with international headquarters in Waukegan, Illinois, outside of Chicago, and manufacturing or sales locations in 17 countries.
