美国Barco旋转接头 BARCO旋转接头
Barco Swivel Joints
barco rotary unions Barco成立于1908年，旋转接头专业生产商，Rotary Unions, Rotary Joints, Self-Aligning Swivel Joints, Coolant Unions, Rotary Syphons, Plane Swivels. 用于从固定口向旋转口传输水、空气、油、酸、超纯气体和液体、浆体、食品、涂料、粘合剂等等。当配导电滑环选项时，RotaRing组合还可以传输电源、信号和数据，为自动控制设备提供解决方案。
BARCO ROTARY JOINTS旋转接头
BARCO C系列旋转接头最大尺寸可以到8寸。该系列应用广泛，包括蒸汽、水、油和气体。温度范围可以到208度，热油温度可以到315度。压力250PSI。BARCO TYPE C are available in 8 sizes and are ideal for a wide range of applications using steam, water, oil or gas. The type C covers over a wide temperature range up to 208 c (hot oil max. is 315 c). They are also pressure rated to 250 PSI.
- 旋转接头产品范围
|
|

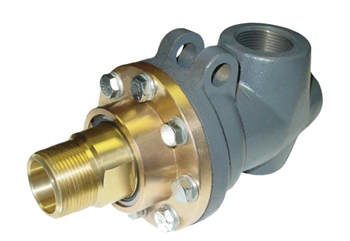

| BARCO TYPE C & CS系列旋转接头
USE Steam, Water, Oil, Gas-threaded Ends
SIZES 1" 1?" 2" 2?" 3"
TEMP 208o
PRESSURE RATING Steam-250 psi (17.5 Kg/cm2)
|

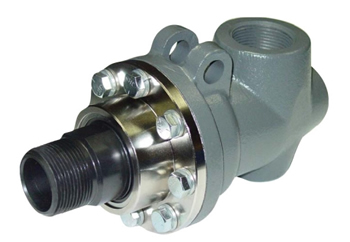

BARCO TYPE CF & CSF系列旋转接头
USE Steam, Water, Oil, Gas-flange Mounted
SIZES 1", 1-1/2", 2", 2-1/2", 3"
TEMP as high as 406°F(208°C)
PRESSURE RATING up to 250 psi (17.5 Kg/cm2) hydraulics. No lubrication required.
|
|
 |
BARCO TYPE CR & CRF系列旋转接头
USE Rotating Syphon for Rubber, Plastic, & Textile Industries
SIZES 1/2" through 3"
TEMP +406°F (208°C)
PRESSURE RATING Steam -250 psi (17.5 Kg/cm2)
|
BARCO TYPE HOT OIL ROTARY系列热油旋转接头
USE For types C, CS, CF and CSF
SIZES 1/2" through 3"
TEMP +406°F (208°C)
|
|
|

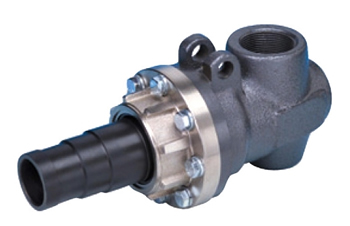

BARCO TYPE SUPER G系列旋转接头
USE Paper Machine Dryers
SIZES 1-1/4", 1-1/2", 2"
TEMP +406°F (208°C)
PRESSURE RATING 250 psi (17.5 Kg/cm2)
|

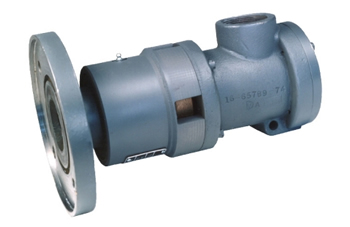

BARCO TYPE EC系列旋转接头
USE Calenders - paper and plastic
SIZES 2", 2-1/2", 3", 4"
TEMP +300°F (149°C)
PRESSURE RATING 150 psi (10.5 Kg/cm2)
RPM 750
|
|
|

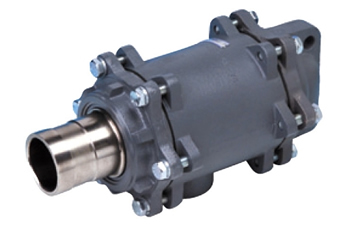

BARCO TYPE GR系列旋转接头
USE Paper Machine Dryers
SIZES 2", 2-1/2", and 3"
TEMP +370°F (188°C)
PRESSURE RATING Steam Pressure Rating: 160 psi (11.25 Kg/cm2)
|

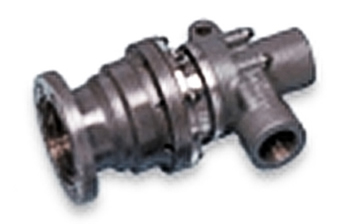

BARCO SERIES 300系列旋转接头
USE Rubber & Plastic Calenders - steam,hot water, and heat transfer fluids.
SIZES 1 1/2"x 1 1/2", 2"x 2", 2 1/2"x 2 1/2"
TEMP Steam +406°F (208°C) Water +350°F (177°C)
PRESSURE RATING Steam 250 psi Water 300psi
|
|
|

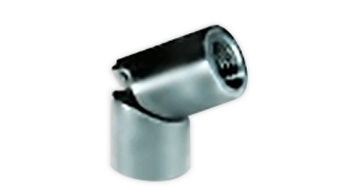

BARCO SYPHON ELBOWS
USE For Type "C" Rotary Joints
SIZES 1/2" through 3/4"
|
BARCO GP Series (stainless) rotary couplings
应用：Fluid control product
尺寸：
various sizes and styles
压力Pressure Rating
Mono Flow: 87 psi to 290 psi
Duo Flow: 87 psi to 290 psi
|
|
|
