Barco TYPE C & CS Rotary Joints系列旋转接头

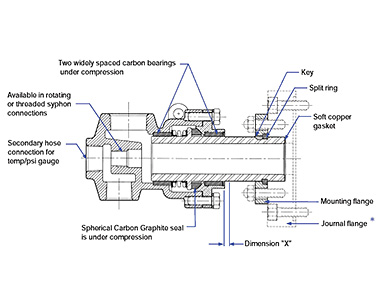

Type C and CS Rotary Joints available in eight sizes. They’re ideal for a wide range of applications over a wide temperature range up to 208°C.These joints feature an iron casing, bronze or ferrous sleeve and end cap, stainless steel spring and spring guides.
Download PDF Tech Sheet (242 KB)
Use
Steam, Water, Oil, Gas-threaded Ends
Sizes
1" 1?" 2" 2?" 3"
Temp
208o
Pressure Rating
Steam-250 psi (17.5 Kg/cm2)

JOINT
SIZE
TYPE C
BASIC ASS'Y NO.
TYPE CS
BASIC ASS'Y NO. JOINT
TRIM WORKING PRESSURE
(PSI) PIPE THREADS*
COLD SATURATED
STEAM A&B C D
SYPHON THD.
INTEGRAL D
SYPHON THD.
W /BUSH. ? AA
PIPE ID
Joint
Size |
Type C
Basic Ass'y No. |
Type CS
Basic Ass'y No. |
Joint
Trim |
Working Pressure
(psi) |
Pipe Threads* |
| Cold |
Saturated
Steam |
A&B |
C |
D
Syphon Thd.
Integral |
D
Syphon Thd.
w /Bush.? |
AA
Pipe ID |
| 1/2" |
BC54000 |
BC54100 |
Ferrous |
500 |
250 |
1/2" |
1/4" |
1/8" |
— |
.50 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 3/4" |
BC54000 |
BC54100 |
Ferrous |
500 |
250 |
3/4" |
1/2" |
1/4" |
1/8" |
.75
.69 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 1" |
BC54000 |
BC54100 |
Ferrous |
500 |
250 |
1" |
1/2" |
3/8" |
1/4" |
1.00
.94 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 1-1/4" |
BC54000 |
BC54100 |
Ferrous |
500 |
250 |
1-1/4" |
3/4" |
1/2" |
3/8" |
1.25 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 1-1/2" |
BC54000 |
BC54100 |
Ferrous |
500 |
250 |
1-1/2" |
3/4" |
3/4" |
1/2" |
1.50 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 2" |
BC54000 |
BC54100 |
Ferrous |
400 |
225 |
2" |
1-1/4" |
3/4" |
1/2" |
1.88
1.81 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 2-1/2" |
BC54000 |
BC54100 |
Ferrous |
400 |
225 |
2-1/2" |
1-1/4" |
1" |
3/4" |
2.38
2.18 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
| 3" |
BC54000 |
BC54100 |
Ferrous |
400 |
225 |
3" |
1-1/2" |
1-1/2" |
1" |
2.88
2.86 |
| BC54065 |
BC54165 |
Bronze |
300 |
125 |
JOINT
SIZE E G H J K L(C) N P Q
HOLE
SIZE TORQUE
ROD
OD
MAX R S
CONN T X WEIGHT
LBS
| 1/2" |
3.00 |
5.37 |
1.62 |
1.73 |
4.56 |
5.87 |
1.16 |
2.41 |
.50 ? |
.38 |
4.81 |
1/4 |
2.00 |
.19 |
3 1/2 |
| 3/4" |
3.38 |
5.19 |
1.75 |
1.73 |
4.56 |
6.19 |
1.25 |
2.41 |
.50 ? |
.38 |
4.87 |
1/4 |
2.19 |
.19 |
5 |
| 1" |
3.62 |
5.96 |
2.06 |
2.08 |
5.21 |
7.03 |
1.25 |
4.04 |
.50 |
.38 |
5.65 |
1/2 |
2.31 |
.25 |
6 |
| 1-1/4" |
4.38 |
7.01 |
2.19 |
1.96 |
6.70 |
8.62 |
1.78 |
4.40 |
.62 |
.50 |
6.63 |
3/4 |
2.88 |
.25 |
13 |
| 1-1/2" |
4.75 |
7.50 |
2.44 |
2.20 |
7.06 |
9.06 |
2.06 |
4.75 |
.62 |
.50 |
7.00 |
3/4 |
3.00 |
.25 |
15 |
| 2" |
6.00 |
8.65 |
2.75 |
2.29 |
8.09 |
10.65 |
2.56 |
5.03 |
.62 |
.50 |
8.09 |
1-1/4 |
2.75 |
.31 |
26 |
| 2-1/2" |
6.75 |
10.15 |
3.00 |
2.99 |
9.76 |
12.45 |
2.50 |
6.33 |
.75 |
.62 |
9.58 |
1-1/4 |
3.06 |
.25 |
33 |
| 3" |
7.88 |
10.88 |
3.62 |
3.14 |
10.69 |
13.06 |
2.88 |
6.62 |
.94 |
.75 |
10.37 |
1-1/2 |
3.62 |
.25 |
45 |
For Syphon Use...
? All joints equipped for use with syphon pipe are furnished with "D" connection for large size syphon - a bushing is shipped with each joint, 1" through 3" sizes for reducing the "D" connection for small size syphon if required. Installation instructions are included with each bushing. Syphon pipes are not included. |
* Joints also available with JIS and/or BSP threads on sleeve.
All dimensions in inches. |
|
