美国Deublin杜博林专用旋转接头钢铁冶金行业连铸机行业应用介绍及案例
Deublin Rotary Union
for Steel Industries applications


美国Deublin旋转接头应用场合:冷轧厂、热轧厂、热轧厂、炼钢厂等。 德国、奥地利、日本、意大利等世界一流冶金设备制造商(奥地利-奥钢联VAI、意大利达涅利_Danieli、德国西马克德马格_SMS Demag、 奥地利-艾伯纳_Ebner 、奥地利-安德里兹_ANDRITZ、 德国-洛伊_TENOVA-LOI),在全球范围内几乎100%选用美国Deublin公司的钢铁用旋转接头,并保证2年的使用寿命,真正使客户和供应商达到了双赢的局面。钢铁工业是主要用于连铸机CCM的旋转接头的最大用户之一,连铸机使用Deublin旋转活接头冷却大量的辊,这些辊在重力作用下通过不同的段移动到跳动台上,以支持熔铸板坯下游退火和热处理。板坯被制成线圈或薄板。线圈在需要液压接头驱动芯轴的加工中心进一步转换。 The steel industry is one of the largest users of rotating unions primarily for continuous casting machines (CCM) which use Deublin rotating unions to cool the numerous rolls that support molten slabs as it moves by gravity through various segments onto a run-out table to downstream annealing and heat treating. The slab is formed into coil or sheet. Coil is further converted in processing centers that require hydraulic unions for actuation of mandrels.

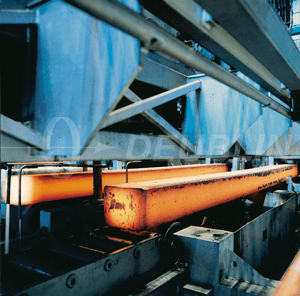

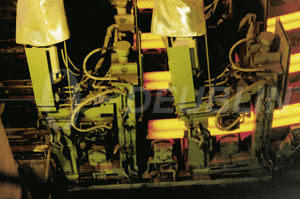

Continuous Casting Machines
连铸机

钢水从巨大的钢包转台倒入一个模具中,该模具通过数百个水冷辊推动各个部分,最终进入一个出料台进行进一步加工。板被转换成薄板或线圈。Molten steel is poured from massive ladle turrets into a mold that pushes thru various segments over hundreds of water-cooled rolls, and eventually to a run-out table for further processing. The slab is converted into sheet or coil.



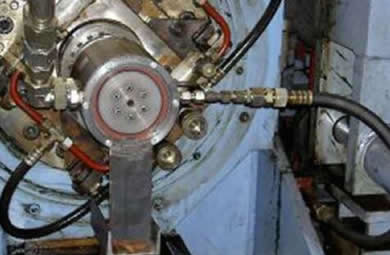

Coil Processing Mandrels
收/开卷机



金属服务中心进行冷加工,如分切或切割线圈、冲压板等。Deublin液压活接头用于固定钢卷和驱动芯轴。Metal service centers perform such cold-processing as slitting or cutting coils, stamping sheet and more. Deublin hydraulic unions are used for holding of the steel rolls, and actuation of mandrels.

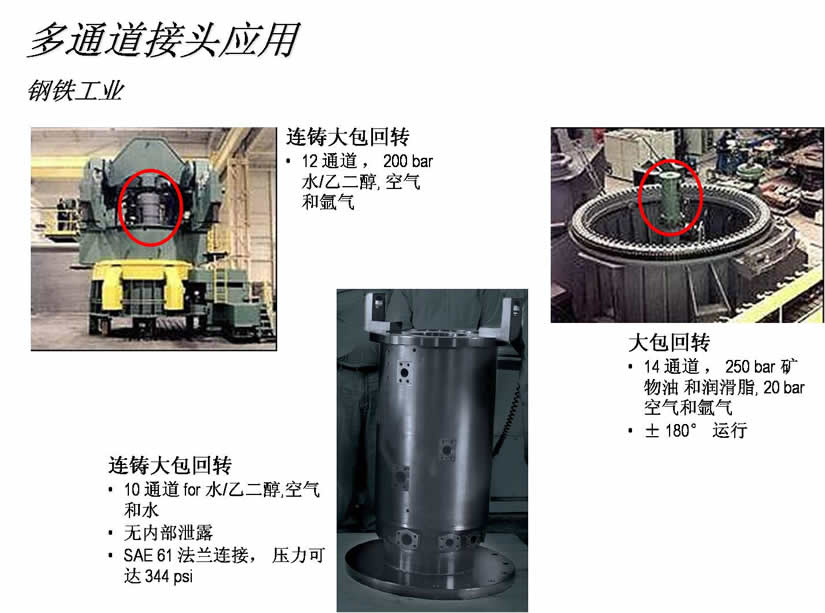

多通道接头钢铁工业行业应用场合案例

连铸大包回转台、连铸扇形段:应用12通道旋转接头,压力:200Bar 介质:水/乙二醇,空气和氩气
大包回转:14通道旋转接头 压力:250bar,介质:矿物油和润滑脂,20Bar空气和氩气,温度:180度运行
连铸大包回转:10通道旋转接头;空气和水,无内部泄漏,SAE61法兰连接,压力可达344PSI
冷轧: 开卷、卷曲机和退火炉
热轧: 卷曲机、加热炉和轧机热卷箱

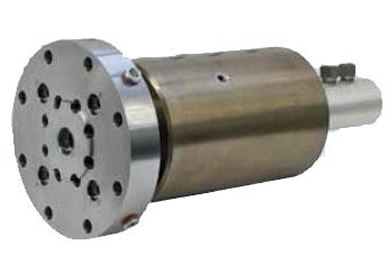

钢铁行业-大包回转台多通路接头及导电滑环

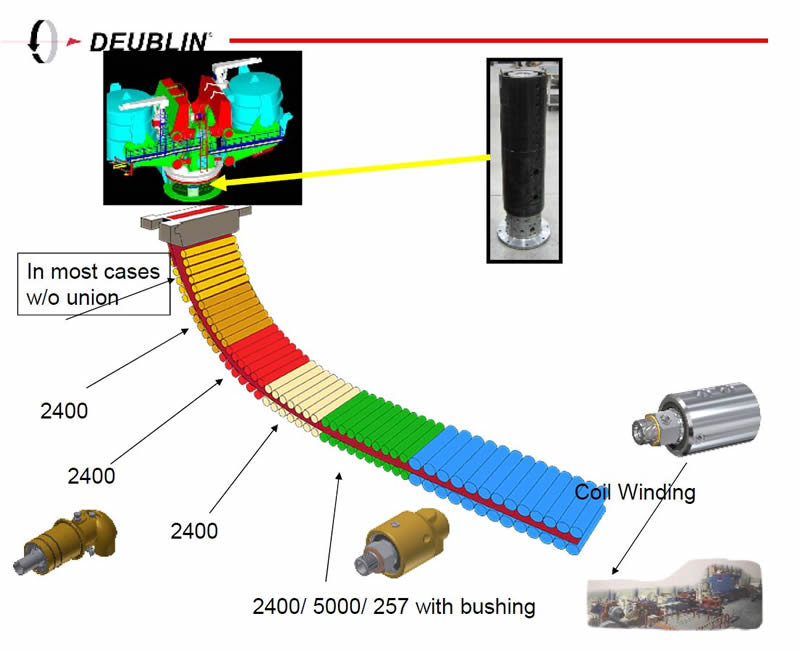

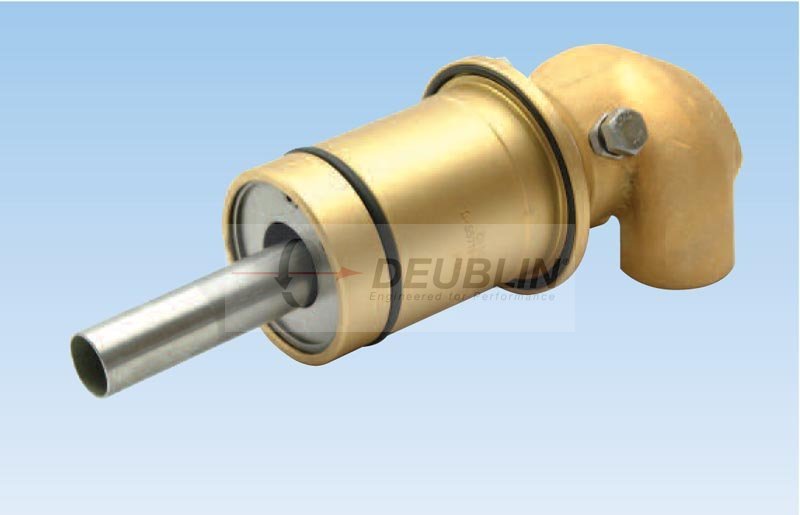

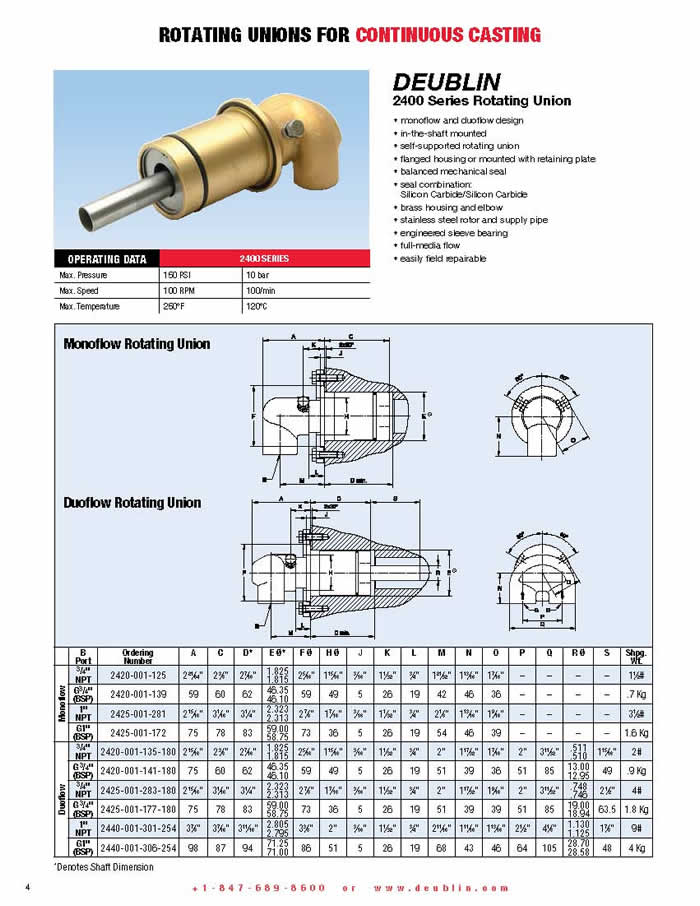

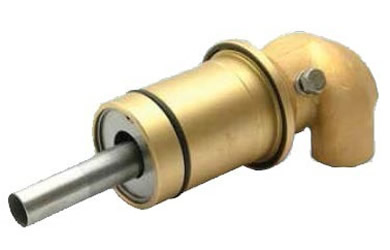

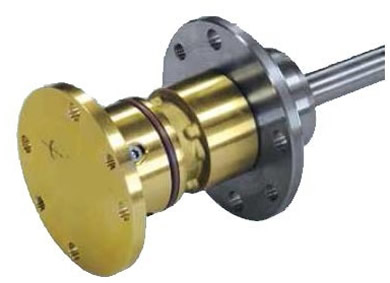

- Deublin 2400系列连续铸钢设备冷却水应用旋转接头
2400 Series Rotating Union for CCM Applications_ Rotating union series 2400 for continuous casting plants

众所周知,连铸机中的旋转接头工作条件极其恶劣:流经的冷却水质量非常差,大多未经过滤,并带有对旋转接头有研磨作用的颗粒。周围空气中的污垢也会沉积在系统的某些部件上,并容易与机器内的旋转部件接触。最后,还存在施加在“旋转联管辊”系统上的机械应变,例如未100%对齐的部件。It is well known that rotating unions in continuous casting plants operate under extremely tough conditions: The cooling water flowing through is of very poor quality, mostly unfiltered and it brings with it particles which have an abrasive effect on the rotating union. Dirt from the surrounding air also settles on parts of the system and easily comes into contact with the rotating parts within the machine. Finally, there is also the mechanical strain which is exerted on the “rotating union roller” system, such as components which are not 100% aligned.

这些因素限制了每个旋转接头的寿命,因为它是一个磨损部件。These factors limit the life span of each rotating union, as it is a wear part.

另一个“环境条件”是尽可能降低客户的成本。这意味着防止机器停机并尽可能降低维护成本。A further “environmental condition” is reducing the client’s costs as much as possible. This means preventing machine downtime and keeping maintenance costs as low as possible.

作为旋转接头的市场领导者,我们认为,我们有责任始终如一地坚持这些要点,即最大限度地延长旋转接头的寿命,或者如果需要进行修理或更换,使相关费用尽可能低。As a market leader for rotating unions, at DEUBLIN we see it as our duty to consistently adhere to these points, i.e. maximise the life span of rotating unions, or if repair work or replacement is necessary, keep the associated costs as low as possible.

这就是为什么2400系列,由于它的基本设计,这是类似于它的前一个模型,一个旋转联合装配在滚柱,其转子被送入一个长轴瓦。That is why the Series 2400 is, thanks to its basic design, which is similar to its predecessor model, a rotating union assembled in the roller, the rotor of which is fed into a long bearing bush.

密封件采用经过验证的类型,由碳化硅和碳化硅制成的压力平衡机械密封件。鉴于已知水质较差,机械密封的技术结构和组合保证了恒定扭矩和高寿命。The seal is made using a proven style with pressure-balanced mechanical seals made of silicon carbide against silicon carbide. The technical construction and combination of mechanical seals guarantee a constant torque and high life spans in light of known poor water quality.

换言之,2400系列旋转接头集中了早期2000系列和4000系列的复杂特性。In other words, a Series 2400 rotating union concentrates the sophisticated properties of the earlier series 2000 and 4000.

DEUBLIN模块化概念现在给了运营商一个优势,即即使使用2400系列,也可以恢复到已经测试了100000次的组件。特别注意尽量减少旋转接头中的污垢沉积,以及由于安装和使用的材料而产生的磨损/腐蚀效应。The DEUBLIN modular concept now gives the operator the advantage of being able to revert to components which have been tested 100,000 times, even when using the 2400 series. Extra-special attention has been paid to minimising dirt sedimentation in the rotating union and its abrasive/corrosive effect due to installation and the materials used.


此外,所有部件都具有“定义的灵活性”,既能平衡较小的不对中误差又能平衡磨损,而不影响密封。这些旋转接头还配有新的密封件,可防止周围污垢进入,并使现场维护更容易。维修可以在几分钟内完成,即使是不太合格的员工也可以!保留了2000系列的完整兼容性,以便在转换期间不发生“更换费用”。Moreover, all components are designed with “defined flexibility” which balances both smaller misalignment errors and wear and tear, without influencing the sealing.These rotating unions also have new seals which prevent the entrance of dirt from the surroundings and also make field maintenance easier. Maintenance can be carried out in minutes, even by less qualified staff!The complete housing compatibility of the Series 2000 has been retained, in order that “replacement costs” are not incurred during the switchover.

品牌:DEUBLIN杜博林特点:

- 单通道与双通道设计
- 轴内安装式旋转接头
- 法兰安装或挡圈安装
- 平衡式机械密封
- 密封组合:碳化硅 / 碳化硅
- 铜壳体及弯头
- 不锈钢转体及供给管
- 长复合轴承
- 全介质流体形式
- 快速的现场维修更换



- Steel Industries Rotary Union PDF Catalod

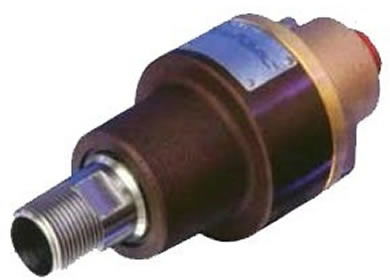

旋转接头钢铁冶金行业产品范围

DEUBLIN旋转接头是行业的先驱,我们提供旋转接头,无轴承连铸机接头,旋转接头,2通道旋转接头,3通道旋转接头。Deublin Rotary Union Pioneers in the industry, we offer Rotary Union, Bearingless CCM Union, Rotating Union, 2 Passage Rotating Union, 3 Passage Rotating Union.

Operating Data:

Sizes from 14” to 3”
Pressures to 1500 PSI
Speeds to 10,000 RPM
Temperatures to 600°F
Media includes steam, water, brine, oil, gas, heat transfer fluids, air, hydraulic fluids and coolants

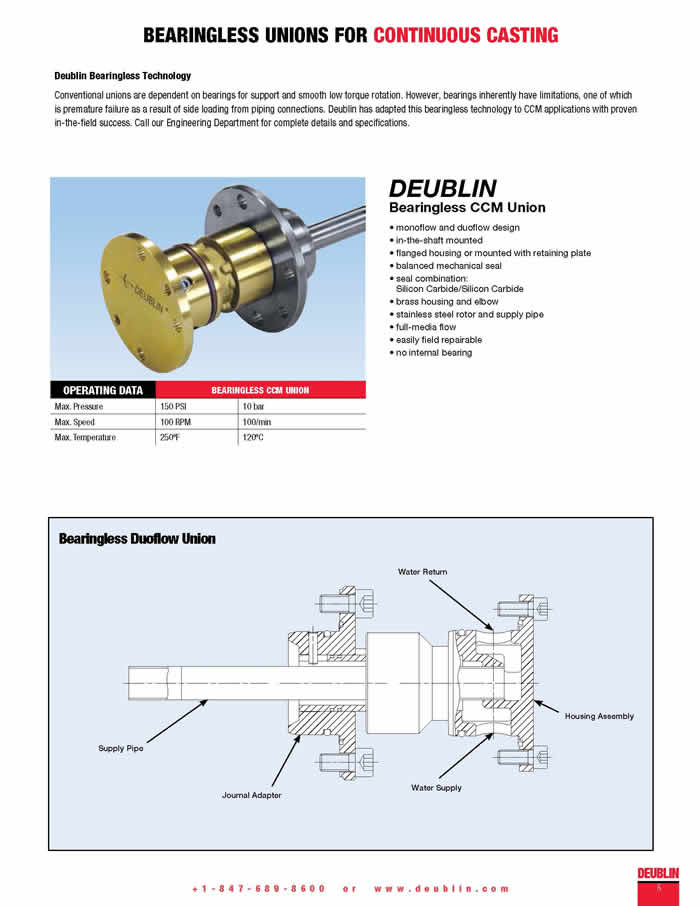

Bearingless CCM Union
Operating Data:

Max. Pressure 150 PSI 10 bar
Max. Speed 100 RPM 100/min
Max. Temperature 250oF 120oC
Max. Temperature 250oF 120oC

规格参数
Operating Data:

Max. Pressure 150 PSI 10 bar
Max. Speed 100 RPM 100/min
Max. Temperature 250oF 120oC

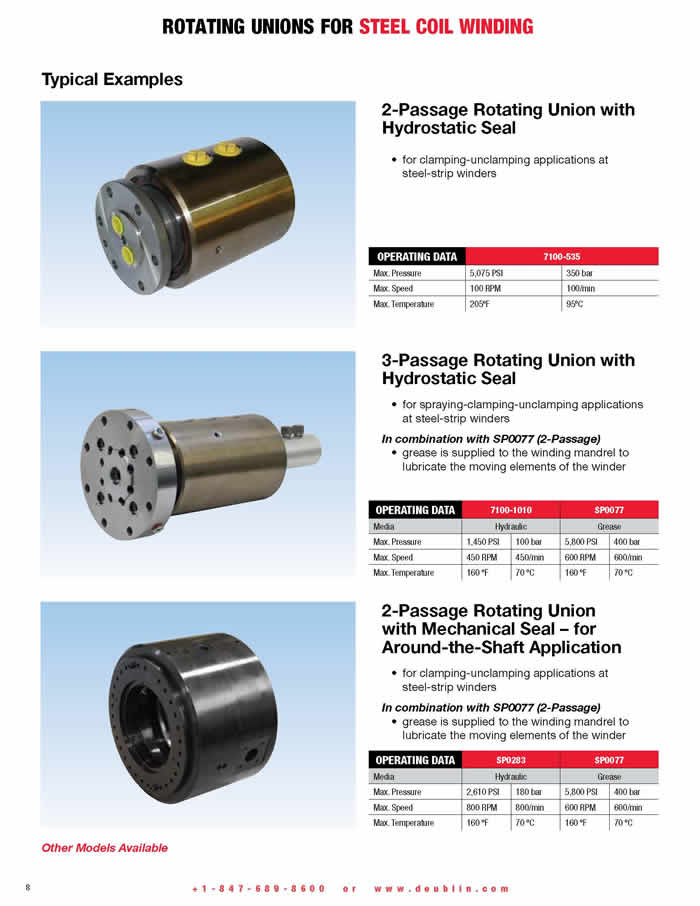

2 Passage Rotating Union
双通道旋转接头Operating Data:

Max. Pressure 5,075 PSI 350 bar
Max. Speed 100 RPM 100/min
Max. Temperature 205oF 95oC

3 Passage Rotating Union
三通道旋转接头Operating Data:

Max. Pressure:1,450 PSI 100 bar 5,800 PSI
Max. Speed 450 RPM 450/min 600 RPM
Max. Temperature 160 F 70 degree 160 F

2 Passage Rotating Union
两通道旋转接头

Two independent passages for applications such as clamping and unclamping
Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure
Closed seals provide continuous containment of media
Dual precision ball bearings for smooth operation
Labyrinth protection for ball bearings
Mountings options are compatible with DEUBLIN 2520 or 1579 series unions

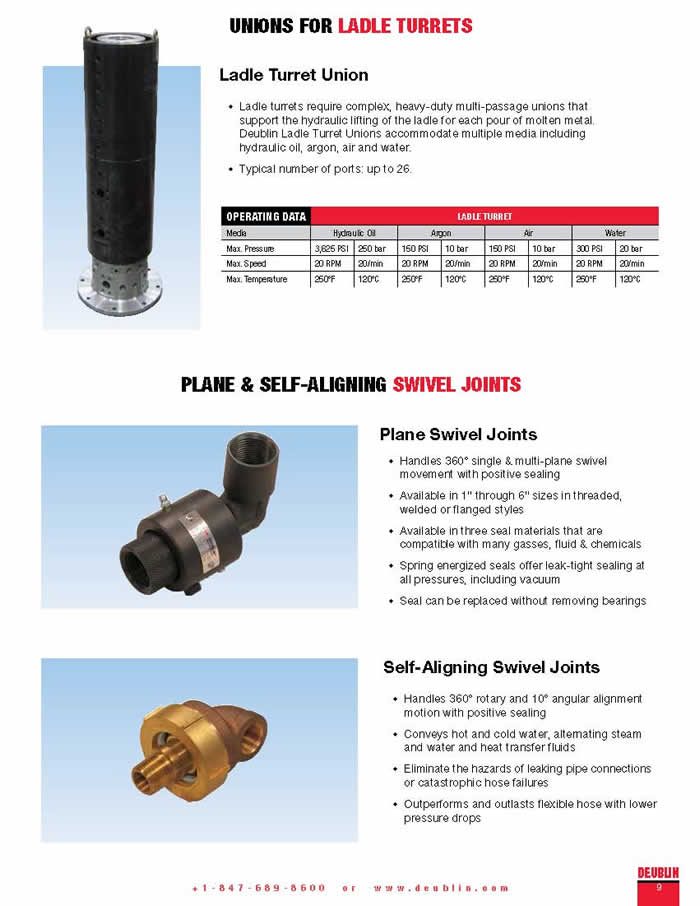

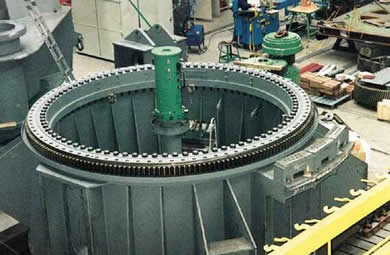

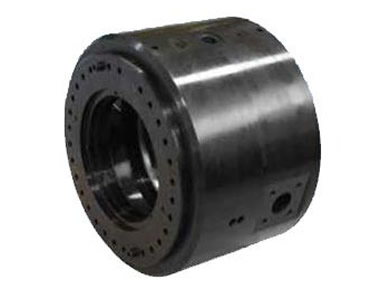

Ladle Turret Union
大包回转台多通路接头及导电滑环

Ladle turrets require complex, heavy-duty multi-passage unions that Support the hydraulic lifting of the ladle for each pour of molten metal. Deublin Ladle Turret Unions accommodate multiple media including Hydraulic oil, argon, air and water.
Typical number of ports: up to 26通道

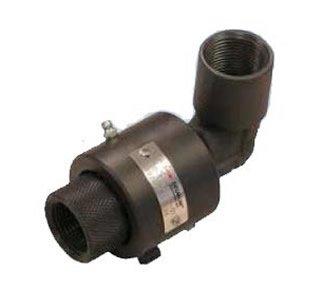

Plane Swivel Joint
平面旋转接头

Operating Data:
Sizes from 1” to 6”
Pressures to 1250 PSI
Temperatures to 325°F
Media includes oil, water, gas and chemical

钢铁行业-大包回转台多通路接头及导电滑环
冷轧: 开卷、卷曲机和退火炉旋转接头

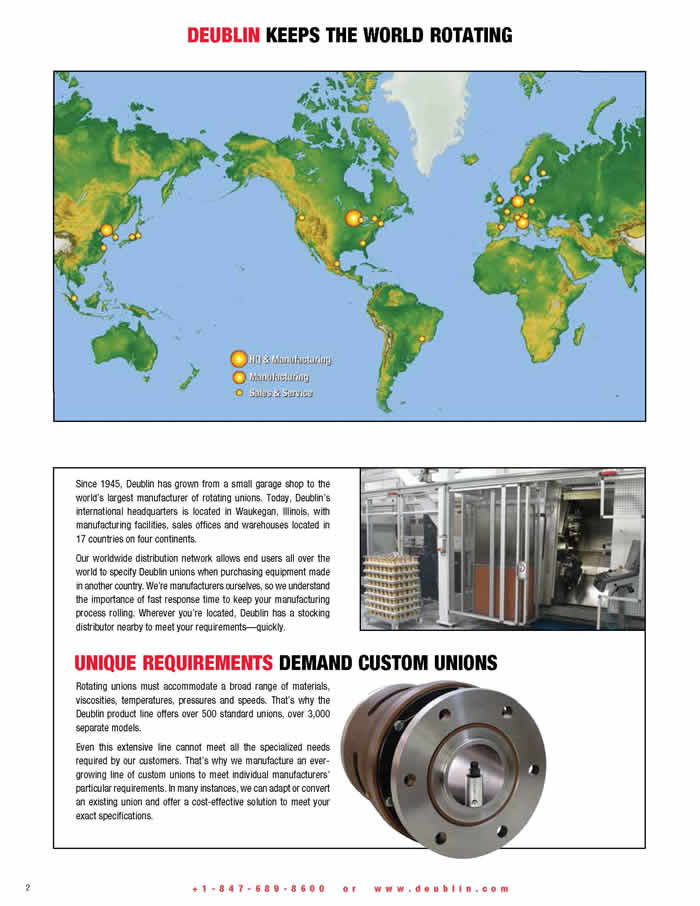

Deublin introduces new Steel Industry Catalog

Deublin introduces new Steel Industry Catalog. The new catalog features rotary unions for In-the-Shaft mounting, threaded rotor mounting and Bearingless CCM unions. In addition, the new catalog features hydraulic unions for clamping, unclamping steel coil winders and ladle turret applications. The catalog also features Plane and Self-Aligning Swivels. To download PDF file click here.

To request printed copy of the catalog by mail click here.
PDF Catalog free download.....

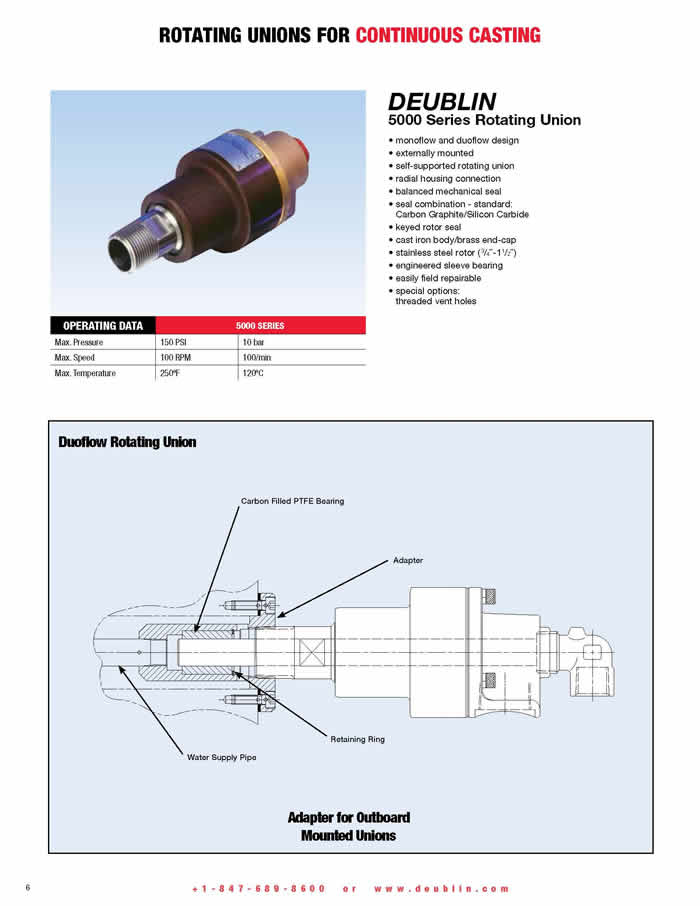

1,5000系列:单通道5075-001-101
双通道固定式中心管5100-060-160-083
双通道旋转式中心管5100-060-160-163

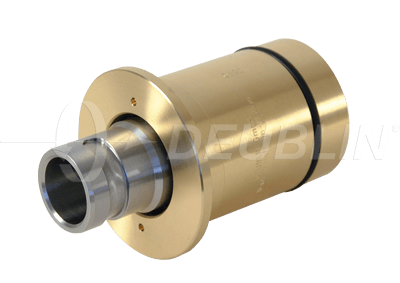

2,2400系列:单通道2420-001-125
双通道2425-001-177-180
订货型号: 3/4" NPT : 2420-001-130
G3/4" (BSP) : 2420-001-139
1" NPT : 2425-001-281
G1" (BSP) : 2425-001-172
3/4" NPT : 2420-001-135-180
G3/4" (BSP : 2420-001-141-180
3/4" NPT : 2425-001-283-180
G3/4" (BSP) : 2425-001-177-180
1" NPT : 2440-001-301-254
G1" (BSP) : 2440-001-306-254
