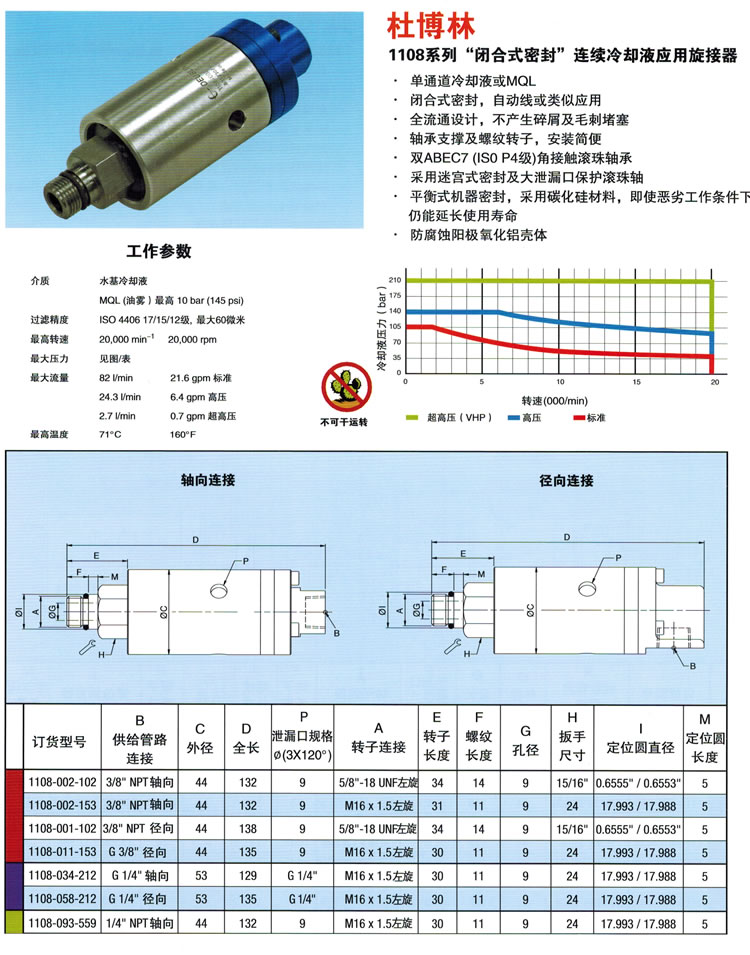

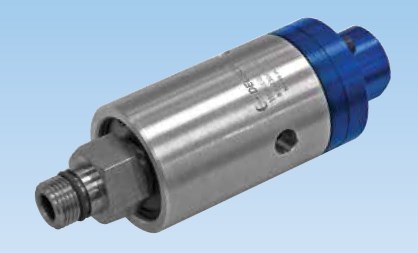

Deublin杜博林1108系列“闭合式密封”连续冷却液应用旋接接头
- 单通道冷却液或MQL
- 闭合式密封,自动线或类似应用全流通设计,不产生碎屑及毛刺堵塞
- 轴承支撑及螺纹转子,安装简便
- 双ABEC7(S0P4级)角接触滚珠轴承
- 采用迷宫式密封及大泄漏口保护滚珠轴
- 平衡式机器密封,采用碳化硅材料,即使恶劣工作条件下仍能延长使用寿命
- 防腐蚀阳极氧化铝壳体
工作参数：
介质 水基冷却液
MQL(油雾)最高10bar(145psi)
过滤精度 sO440617/15/12级,最大60微米
最高转速 20,00min120,000rpm
最大压力 见图表
最大流量 82 I/min 21.6gpm标准
24.3/min 64gpm高压
2.7 I/min 0.7gpm超高压
最高温度 71°C 160°F
Deublin杜博林1108系列“闭合式密封”连续冷却液应用旋接接头
- 订货型号
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Overall Length |
P Vent Size ( 3 x 120°) |
A Rotor Connection |
E Rotor Length |
F Thread Length |
G Bore Diameter |
H Across Flats |
I Pilot Diameter |
M Pilot Length |
| 1108-002-153 |
3/8 NPT Axial |
44 |
132 |
9 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-011-153 |
G 3/8 Radial |
44 |
135 |
9 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-034-212 |
G 1/4 Axial |
53 |
129 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-058-212 |
G 1/4 Radial |
53 |
135 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-093-559 |
1/4 NPT Axial |
44 |
132 |
9 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Housing Length |
P Vent Size () |
A Rotor Connection |
E Rotor Length |
F Rotor Overall Diameter |
G Bore Diameter |
I Pilot Diameter |
Maximum Speed (rpm) |
Max. Pressure (bar) |
| 1108-302-105 |
G 1/4 Radial |
48 |
88.5 |
G 1/8 (4x90°) |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
24,000 |
80 |
| 1108-840-835 |
G 1/4 Axial & Radial |
48 |
112 |
G 1/4 (3x120°) |
Octagon 7.4 D10 |
19.5 |
15.9 |
8.1 F9 |
48 g6 |
24,000 |
150 |
| 1108-844-835 |
G 1/4 Axial & Radial |
48 |
112 |
4 mm (12x30°) |
Octagon 7.4 D10 |
19.5 |
15.9 |
8.1 F9 |
44 g6 |
24,000 |
150 |
订货型号 供给管路 外径全长 规连接
1108-002-102 |3/8"NPT轴向44|132
1108-002-153 |3/8"NPT轴向44 132
1108-001-102 3/8"NPT径向44 138
1108-011-153 G3/8"径向|4|135 129
1108-034-212 |G1/4"轴向|53
1108-058-212 |G1/4"径向53|135
1108-093-559 1/4"NPT轴向44 132
|
|
