美国Deublin杜博林旋转接头钢铁冶金、铝合金加工行业应用介绍及案例
Deublin Rotary Union
for Steel Metallurgy and Aluminum Alloy Processing Industry applications


美国Deublin旋转接头应用场合:冷轧厂、热轧厂、热轧厂、炼钢厂等。 德国、奥地利、日本、意大利等世界一流冶金设备制造商(奥地利-奥钢联VAI、意大利达涅利_Danieli、德国西马克德马格_SMS Demag、 奥地利-艾伯纳_Ebner 、奥地利-安德里兹_ANDRITZ、 德国-洛伊_TENOVA-LOI),在全球范围内几乎100%选用美国Deublin公司的钢铁用旋转接头,并保证2年的使用寿命,真正使客户和供应商达到了双赢的局面。钢铁工业是主要用于连铸机CCM的旋转接头的最大用户之一,连铸机使用Deublin旋转活接头冷却大量的辊,这些辊在重力作用下通过不同的段移动到跳动台上,以支持熔铸板坯下游退火和热处理。板坯被制成线圈或薄板。线圈在需要液压接头驱动芯轴的加工中心进一步转换。 The steel industry is one of the largest users of rotating unions primarily for continuous casting machines (CCM) which use Deublin rotating unions to cool the numerous rolls that support molten slabs as it moves by gravity through various segments onto a run-out table to downstream annealing and heat treating. The slab is formed into coil or sheet. Coil is further converted in processing centers that require hydraulic unions for actuation of mandrels.



Continuous Casting Machines
连铸机

钢水从巨大的钢包转台倒入一个模具中,该模具通过数百个水冷辊推动各个部分,最终进入一个出料台进行进一步加工。板被转换成薄板或线圈。Molten steel is poured from massive ladle turrets into a mold that pushes thru various segments over hundreds of water-cooled rolls, and eventually to a run-out table for further processing. The slab is converted into sheet or coil.

Coil Processing Mandrels
收/开卷机

金属服务中心进行冷加工,如分切或切割线圈、冲压板等。Deublin液压活接头用于固定钢卷和驱动芯轴。Metal service centers perform such cold-processing as slitting or cutting coils, stamping sheet and more. Deublin hydraulic unions are used for holding of the steel rolls, and actuation of mandrels.


多通道接头钢铁工业行业应用场合案例

连铸大包回转台、连铸扇形段:应用12通道旋转接头,压力:200Bar 介质:水/乙二醇,空气和氩气
大包回转:14通道旋转接头 压力:250bar,介质:矿物油和润滑脂,20Bar空气和氩气,温度:180度运行
连铸大包回转:10通道旋转接头;空气和水,无内部泄漏,SAE61法兰连接,压力可达344PSI
冷轧: 开卷、卷曲机和退火炉
热轧: 卷曲机、加热炉和轧机热卷箱
钢铁行业-大包回转台多通路接头及导电滑环

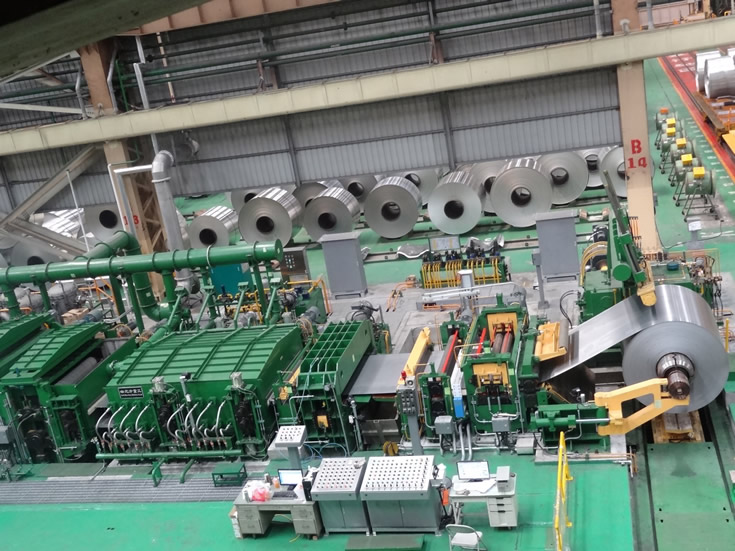

铸轧机Casting and rolling mill

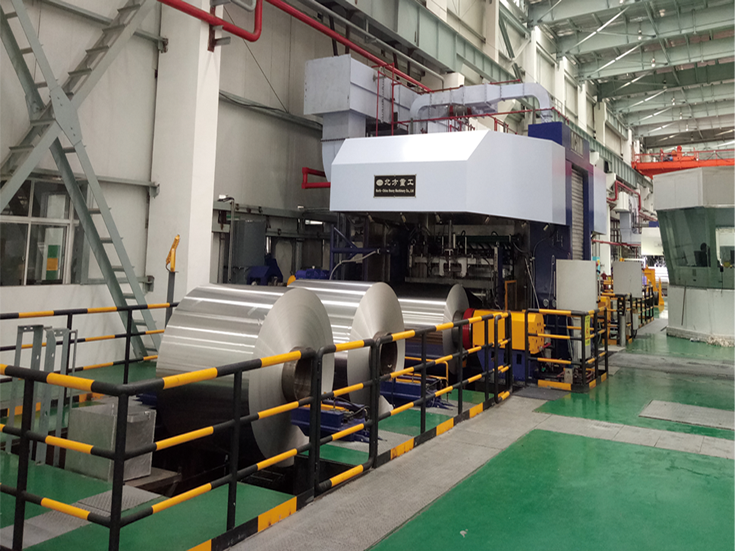

铸轧机Casting and rolling mill

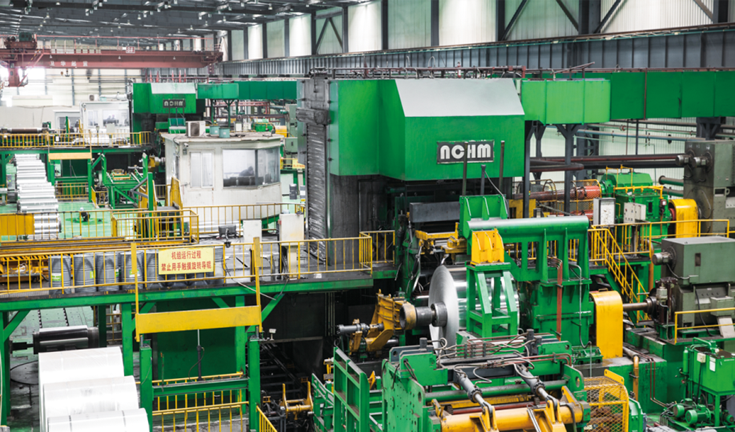

热轧机Hot rolling mill

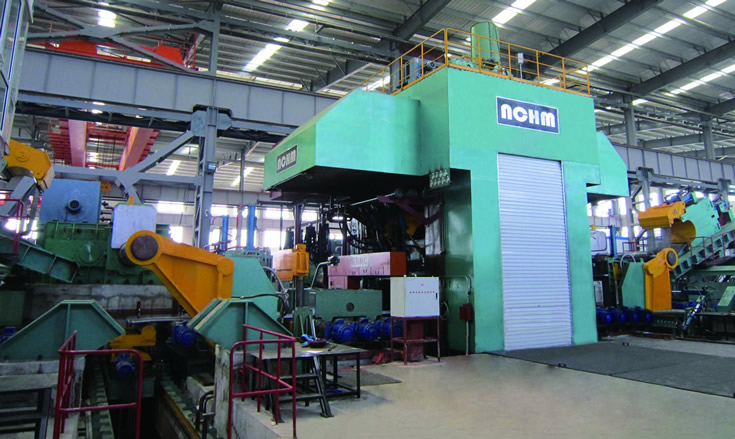

热轧机Hot rolling mill

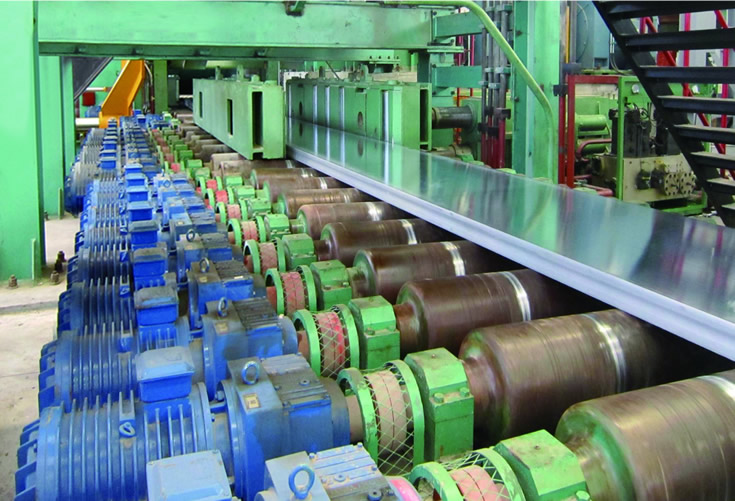

冷轧机Cold rolling mill

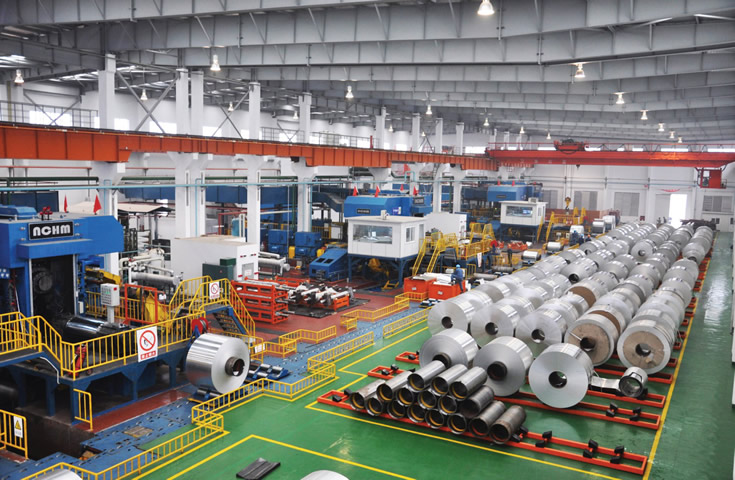

冷轧机Cold rolling mill

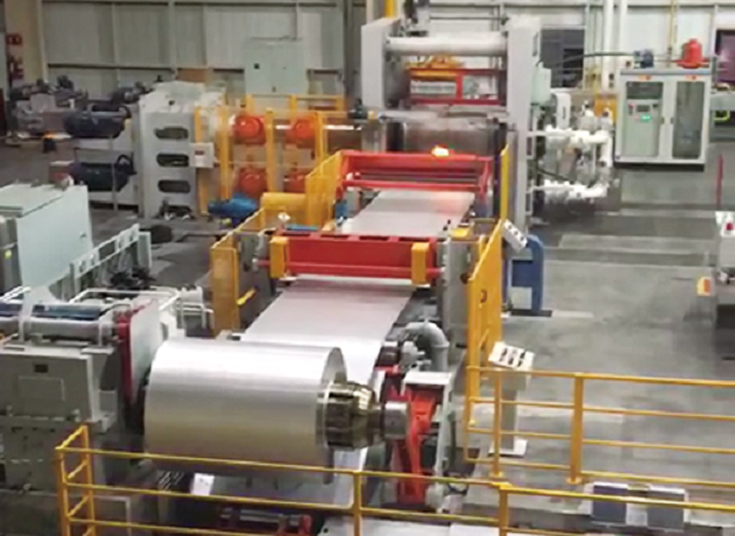

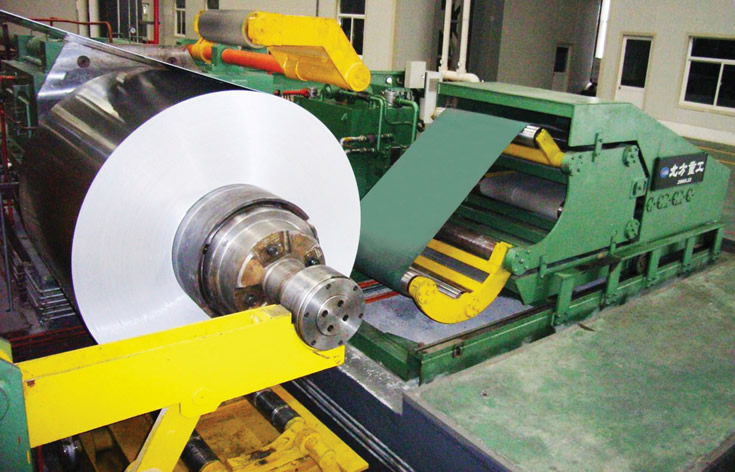

重卷机Rewinder

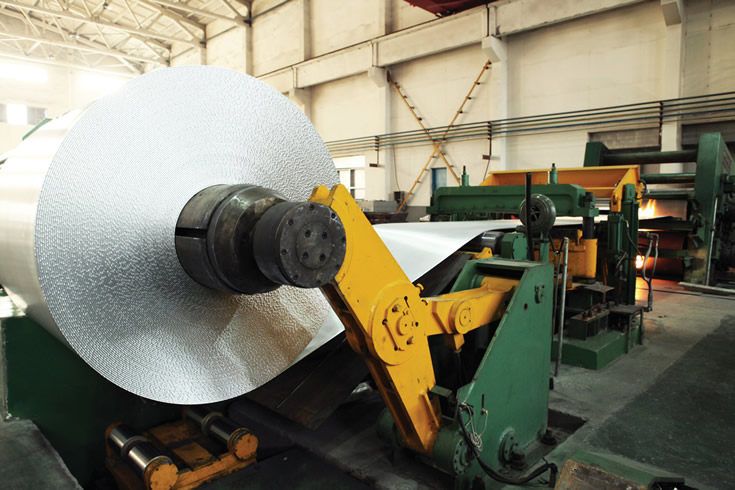

重卷机Rewinder
