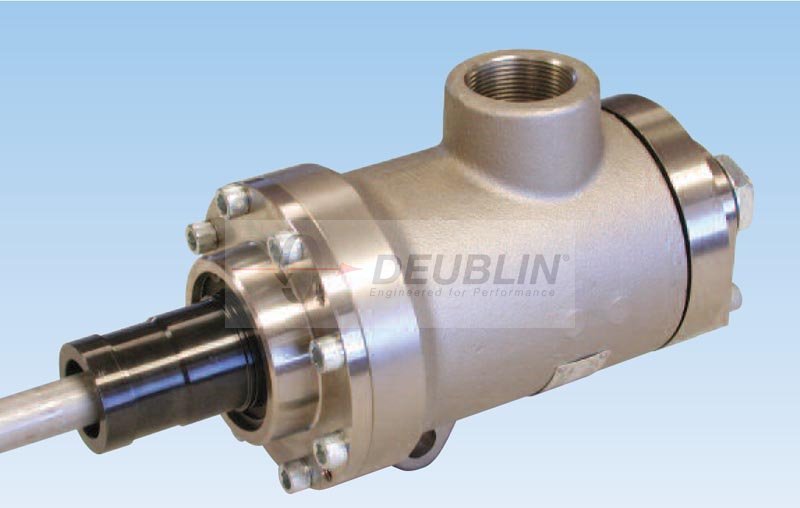

Deublin HPS系列瓦楞纸用高压蒸汽接头
Duoflow Steam Union for Corrugators - 1-1/2"

特点:
—— 单通道与双通道设计
—— 自带支撑旋转接头
—— 密封与轴承采用特殊碳石墨
—— 凸面结构密封环更适合用于机械和热追振动
—— 采用外部机构通过端盖调整虹吸管
—— 镀镍可锻铸铁壳体
—— 不锈钢弹簧
—— 大型钢转体设计
—— 双轴承可延长使用寿命


技术参数:
Maximum Saturated Steam Pressure: 250 PSI 17 bar
Maximum Speed: 400 RPM 400/min
Maximum Temperature: 400°F 200°C

DEUBLIN
HPS Series for High Pressure Steam
Service in Corrugators
- monoflow and duoflow design
- self-supported rotating union
- seals and bearings made of special Carbon Graphite
- convex seal ring better suited to handle mechanical and
thermal shock
- external mechanism to adjust siphon pipe through end cap
- nickel-plated front and rear end cap
- nickel-plated ductile iron housing
- stainless steel spring
- heavy duty steel rotor design
- dual bearings for extended service life

订货型号:

C15D-004-02-3A
