DEUBLIN Rotating Union 7100 Series for High Pressure Hydraulic Service,DN 8 - 20,Duoflow

The rotating unions of series 7100 supply the feeding of hydraulic oil. The respective medium has to comply with the following specification: Mineral oils according to DIN 51524-2 (HL; HLP) | ISO 6743-4 HM, viscosity classes 10, 22, 32, 46, 68 and 100 cSt.The admissible performance of the rotating unions depends upon the diameter of the pipe through which the consuming equipment is provided with hydraulic oil.美国DEUBLIN公司成立于1945年。是世界上最大的专业生产各种精密旋转接头、蒸汽接头、虹吸管和各类内部膨胀管的厂家。该公司产品设计新颖,加工精良,性能可靠,不易泄漏,使用寿命长,维护方便,型号系列化。广泛应用于造纸、冶金、钢铁、印刷、机械等行业,在世界同行业中享有较高的声誉。

Brand: Deublin
Product Code: Series 7100

规格参数:

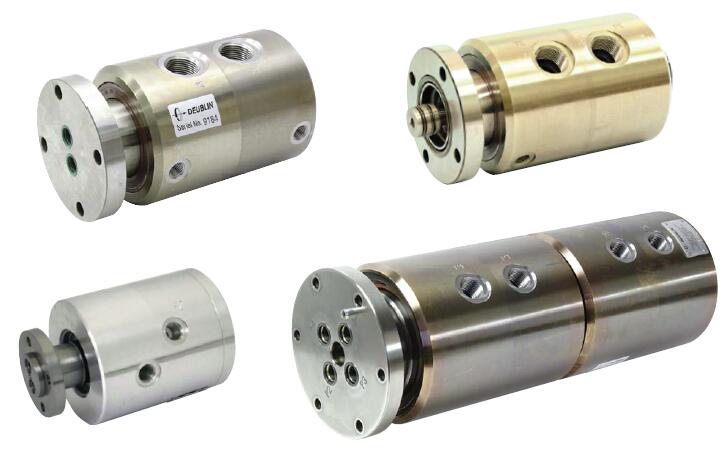

Series 7100 are duoflow rotating unions, body - stainless steel, rotor - hardened steel. They are designed for hydraulics, low rotation speed, pressure up to 250 bar and temperature up to 90°C.
压力:250bar
温度: 90°C

Rotary Union Sizes尺寸: 3/4" RH 1" RH 1 1/4" RH 1 1/2" RH

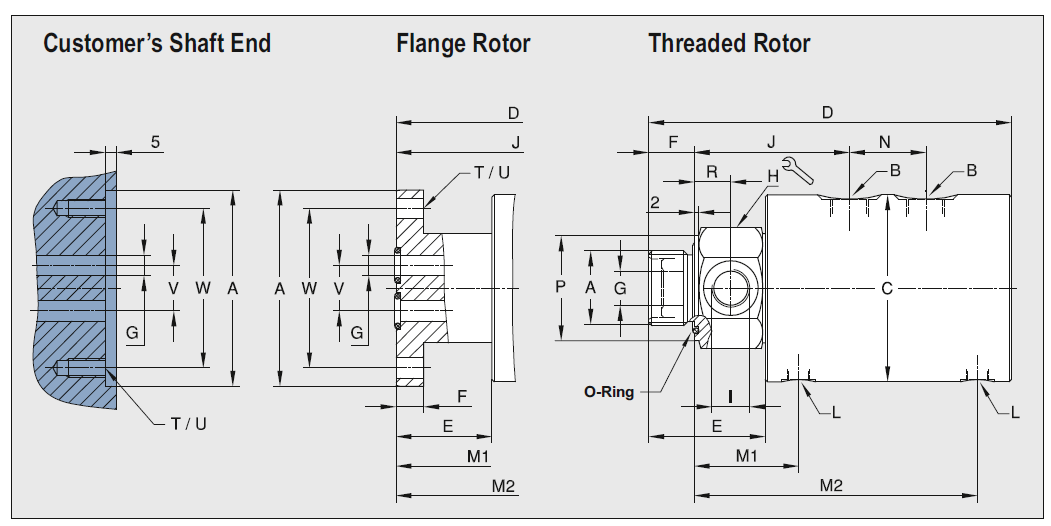

For connecting the rotor to the shaft a threaded or a flange connection is offered.
Deublin 7100-852旋转接头 Deublin 7100-853旋转接头 Deublin 7100-855旋转接头 | Deublin 7100-854旋转接头 | Deublin 7100-773旋转接头 Deublin 7100-777旋转接头 Deublin 7100-711旋转接头 Deublin 7100-713旋转接头


DEUBLIN Rotating Union 7100 Series for High Pressure Hydraulic Service,DN 8 - 20,Duoflow
系列旋转接头
技术资料下载

性能参数:

- Duoflow design
- Self Supported
- Hydrostatic bearing design
- Wear-resistant bearing
- Vent for controlled drainage, depending on pressure
- Shaft seal for secondary sealing
- Stainless steel housing
- Hardened steel rotor

Downloads:

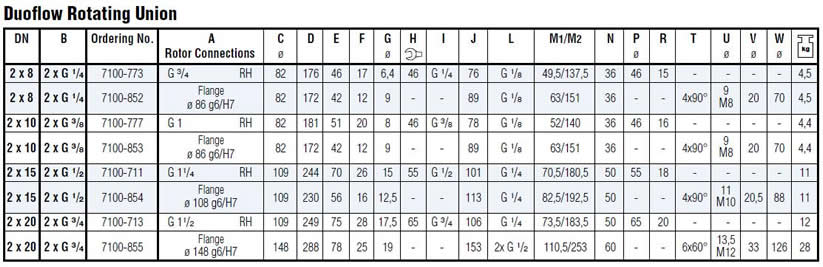

Size P/N
3/4" 7100-773
1" 7100-777
1 1/4" 7100-711
1 1/2" 7100-713



Rotary Unions
Max. Hydraulic Pressure 3 - 250 Bar
Max. Temperature 60 C
Max. RPM 500 RPM
