Deublin 2″、21/2″、3″、4″快换式水接头Cartridge Water Union

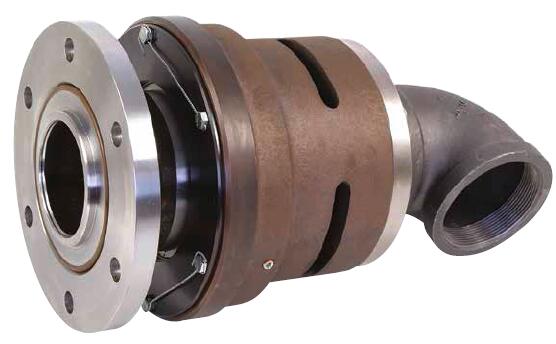

DEUBLIN Rotating Union 6000 Series for Water Service, DN 50 - 100

杜博林6000系列水介质应用旋转接头,DN50-100
DEUBLIN Rotating Union 6000 Series for Water Service, DN 50 - 100

Deublin 6000系列和6005系列旋转接头供应以下介质:水和热油(并非所有6000系列的设计都适用于热油)。如果您想使用6000系列热油型号,请联系DEUBLIN。)所指的旋转接头是为非潜在爆炸环境和非燃烧介质设计的。有关旋转接头工作范围的详细信息,请参见目录和/或特定型号的安装图。6000系列和6005系列的旋转接头可根据连接类型用作单向或双向接头,6000系列和6005系列的旋转接头也可用作双通道旋转接头(Duo)。The rotating unions of the series 6000 and 6005 supply the feeding of the following media: Water and Thermal oil (not all designs of series 6000 are suitable for thermal oil. If you want to use a series 6000 model for thermal oil, please contact DEUBLIN.) The rotating unions referred to are designed for non-potentially explosive environments and noncombustible media. Details on the operating range of the rotating unions are provided in the catalogue and/or the model-specific installation drawing. The rotating unions of the series 6000 and 6005 can be used as one-way or two-way version depending on the type of connection.The rotating unions of the 6000 and 6005 series are also available as twoway model (Duo).

DEUBLIN Rotating Union 6000 Series for Water Service, DN 50 - 100 PDF Catalog download

产品性能特点:

- 单通道与双通道设计
- 自带支撑旋转接头
- 径向壳体连接
- 平衡式机械密封
- 密封组合:
碳石墨/碳化钨-标准
碳化硅/碳化钨-E.L.S.
- 钢带式浮动密封
- 密封部件更换快速简单
- 全介质流
- 排出槽
- 铸铁壳体
- 法兰/螺纹连接钢转体

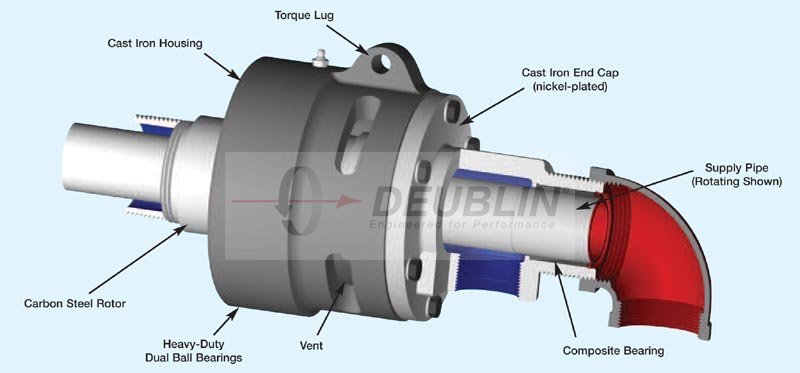

Rotating Union 6000 Series for Water Service, DN 50 - 100
- monoflow and duoflow design
- self-supported rotating union
- radial housing connection
- balanced mechanical seal
Carbon Graphite/ Tungsten Carbide - standard and
Silicon Carbide/Tungsten Carbide - E.L.S. (Extended Life
Sealing)
- steel banded floating seal
- easy and quick replacement of sealing components
(rotor seal, floating seal)
- full-media flow
- vent slots
- cast iron housing
- steel rotor
- Lubrication Guide page 52

For applications above 120 °C please ask for information covering the new HT-series.
For further information please contact DEUBLIN or your local representative.






- 规格型号参数:
Deublin Rotating Unions 6000 and 6005 series

系列
型号
温度 Temperature
介质
Water 水
Thermal Oil 热油
6000
6200
up to 120°
»
»
6005
6205
up to 160°
»
»
6000
6250
up to 120°
»
»
6005
6255
up to 160°
»
»
6000
6300
up to 120°
»
»
6005
6305
up to 160°
»
»
6000
6400
up to 120°
»
»
6005
6405
up to 160°
»
»

订货型号:

2"英寸连接方式:

6200-001-123、6200-016-123、6200-001-135、6200-016-135、6200-001-137、6200-016-137
6200-001-139、6200-016-139、6200-001-115、6200-016-115

2-1/2"英寸连接方式:
6250-001-115、6250-018-115、6250-001-119、6250-018-119、6250-001-121、6250-018-121
6250-001-123、6250-018-123、6250-001-300、6250-018-300

3"英寸连接方式:

6300-001-157、6300-015-157、6300-001-158、6300-015-158、6300-001-161、6300-015-161
6300-001-161、6300-015-161、6300-001-103、6300-015-103

4" 英寸连接方式:
6400-030-330、6400-042-330

标准
E.L.S.
标准
E.L.S
6200-002-123
6200-030-123
6200-011-123
6200-040-123
6200-002-135
6200-030-135
6200-011-135
6200-040-135
6200-002-137
6200-030-137
6200-013-137
6200-020-137
6200-002-139
6200-030-139
6200-013-139
6200-020-139
6200-002-115
6200-030-115
6200-011-115
6200-040-115
6250-002-115
6250-030-115
6250-006-115
6250-040-115
6250-002-119
6250-030-119
6250-006-119
6250-040-119
6250-002-121
6250-030-121
6250-025-121
6250-035-121
6250-002-123
6250-030-123
6250-025-123
6250-035-123
6250-002-300
6250-030-300
6250-006-300
6250-040-300
6300-002-157
6300-030-157
6300-006-157
6300-040-157
6300-002-158
6300-030-158
6300-006-158
6300-040-158
6300-002-161
6300-030-161
6300-025-161
6300-035-161
6300-002-162
6300-030-162
6300-025-162
6300-035-162
6300-002-103
6300-030-103
6300-006-103
6300-040-103
6400-031-330
6400-051-330
6400-024-330
6400-054-330



- DEUBLIN Rotating Unions Operating Manual
Model/Series:
Series 6000 6005
Model6200 6205 6250 6255 6300 6305 6400 6405

DEUBLIN Exclusive On-The-Machine Repair Cartridge Seals are replaced quickly and easily. There‘s no need to remove hose connections or use special tools.
Make sure the system is cold and pressureless!Simply remove 6 hex bolts and end cap then remove floating seal cartridge and rotor seal face and replace with new seals.Rotor seal is keyed and sealed to the rotor with a built-in O-Ring.Replace end cap, hex bolts and safety wire.Detailed instructions available from DEUBLIN.
