美国Deublin旋转接头产品订货须知

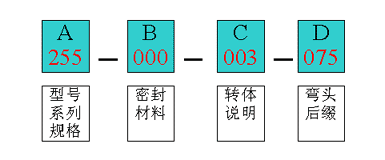

DEUBLIN的产品型号包括2-4组数字。每一组数字标识一定的接头性能。定购接头时必须写全产品型号

以下用双通道旋转接头举例说明：

请下载DEUBLIN杜博林旋转接头旋转接头选型表格PDF

其中：A项——表示3/4"水介质应用通用型接头；

B项——表示石墨对铜材质密封；

C项——表示1"-14UNS，右旋转体螺纹；

D项——表示1/2"管用双通道弯头。

注：1bar≈0.1Mpa≈1kg/cm2

订货说明：

1. 订货时请详细列出产品型号，一般为xxx-xxx-xxx, 如有字母请务必写清楚。

2. 当所需产品不在上述列表之内，或所需产品操作参数超过上表所述，请与我们的技术服务人员联系。

3. 对一些特殊产品，订货时请注明单、双向液；法兰、螺纹连接；中心管是固定式还是旋转式。详情请咨询我们的技术服务人员。

Deublin Products
Deublin Rotating Union Selection Chart
Deublin-Sint

Deublin Catalog
Deublin Catalogue Deublin Slip Rings Catalogue
DEUBLIN UNIONS

Part Number Description Part Number Description
157-016-738 Union 157-440-125 Union 1-1/2' BSP RH Rotor
157-097-125 Union 157-440-125950 Union Custom 57 Series
257-098-135 Union 1'-14 UNF RH 157-508-201 SPEC Union Duo M20x1.5 RH
157-097C Kit Repair 157-097 Series 157-516-342187 Union Custom 57 Series
157-028-125 Union 1/2' BSP RH 1579-000 Union Deu-plex 1/2' NPT Port H
157-016C Kit Repair 157-016 Series 1579-000C Kit Repair 1579-000 Series
527-012-498 Union 1579-035 Union Deu-plex TC/C Seals Spec
357-051C Kit Repair Suit 357-051 Series 1590-000 Union Deu-plex 1/2' NPT Ports
527-012C Kit Repair 527-012 Series 1690-000-105 Union 1' BSP RH D/Passg W/o In
157-016-151 Union 1/2' BSP RH 1690-000-184 Union 1' NPT RH Double Passage
157-016B738 Kit Rebuild Suit 157-016-738 U 17-025-023 Union 5/8-18 UNF RH
157-074-125 Union 1/2' BSP 17-025-041 Union 3/8' NPT RH
157-074B125 Kit Rebuild Suit 157-074-125 U 17-025-045 Union 3/8' NPT RH Tapped Rotor
257-031-064 Union 3/4' RH 17-025-046 Union M16 X 2 RH
257-031B064 Kit Rebuild 3/4' BSP RH 17-050C Kit Repair
257-031C Kit Repair 257-031 Series 17-051-039 Union 1/4' NPT RH Vacuum
357-051-198 Union 1' BSP RH Water Service 17-086-023 5/8'-18 UNF RH
357-051B198 Kit Rebuild Suit 357-051-198 17-086-039 Union 3/8' BSP RH Brake Fluid
527-012B498 Kit Rebuild Suit 527-012-498 U 17-086-041 Union 3/8' NPT RH
6250-066-121 Union 2-1/2' Water BSP RH 1790-001-112 Union 1-1/4 BSP RH Dbl Passage
2620-041-252 Union 2xPassg Oil/Oil 1/4 NPT 1790-001C Kit Repair 1790-001 Series
6250-066-115 Union 2-1/2' NPT RH 1890-063 Union Deu-plex 1-1/2 BSP RH Ro
7100-498-1C Union 6 Passage Multi-media 1890-063C Kit Repair Suit 1890-063 Serie
355-000-222 Union 1' BSP RH 1890-064 Union Deu-plex 1-1/2 BSP RH Ro
6250-066C Kit Repair Suit 6250-066 Serie 1890-116 Union 1-1/2' NPT RH
1115-000-001 Union 5/8'-18 UNF RH 21-001-101 Union 3/4' NPT RH
555-000-198 Union 1-1/2' BSP RH 21-001-109 Union 1' UNS RH Air/Hydraulic
155-000-151 Union 1/2' BSP RH 21-001-113 Union 1/2' NPT RH
525-000-054 Union 1-1/4' BSP RH 21-001-121 Union M22 X 1.5 RH
657-000-124 Union 2' BSP RH 21-063-122 3/4 BSP RH
255-000-284 Union 3/4' BSP RH 2117-005-103 Union 1-14 UNS RH
1109-040-188 Union M16 X 1.5 LH 2117-005C Kit Repair Suit 2117-005 Serie
1129-718-480 Union Less Brg Std Housing KSS 2200-000-003 Union 1' 14 UNS RH
55-000-001 Union 3/8' NPT RH 2200-000-027 Union 1' 14 UNS LH
357-000-222 Union 1' BSP RH Water Service 2200-000-096 Union 1/2' NPT RH
2425-001-177 Union Duo 3/4' BSP Less Siphon 2200-000-102 Union 3/4' BSP RH
9200-001-121 Union Quick Connect Rotor 2200-000-103 Union 3/4' BSP LH
257-000-284 Union 3/4' BSP RH Water Servic 2424-001-177180 Union Duo 3/4' BSP Rotor With
9150-001-117 Union Quick Connect Steam Serv 2425-001-177180 Union Duo 3/4' BSP Rotor With
655-500-116 Union 2' NPT RH 250-094-002 Union 1-14 UNS RH Rotor
257-000-285 Union 3/4' BSP LH Water Servic 250-094-012 Union M22 X 1.5 RH
527-000-001 Union 1-1/4' NPT RH 250-094-013 Union M22 X 1.5 LH
555-000K Kit Repair 555-000 Series 250-094-017 Union 1-14 UNS (PT) LH
357-000-223 Union 1' BSP LH Water Service 250-094-021 Union 3/4' NPT LH
157-000-151 Union 1/2' BSP RH Water Servic 250-094-027 Union 1-14 UNS LH
55-000-094 Union 3/8' BSP RH 250-094-285 Union 3/4' BSP LH
357-050C Kit Repair 357-050 Series 250-979-017 Union 1-14 UNS LH
1115-000-205 Union 3/8' BSP RH 2520-000 Union Deu-plex 1/4' NPT Ports
857-000-101 Union 3 Inch NPT RH 2520-033 Union Deu-plex 1/4' NPT Pts A/
1115-565-002 SPEC Union SM CG/SIC 3/8' NPT RH Ro 2520-033B Kit Rebuild Suit 2520-033 Unio
2117-001-103 Union 1-14 UNS RH 2520-400 Union Deu-plex CG/C Seals. Spe
902-141-192 Union M16 X 1.5 LH 2520-400B Kit Rebuild Suit 2520-400 Unio
2117-001-105 Union 3/4' BSP RH 2520-401 Union Deu-plex Special
155-000-152 Union 1/2' BSP LH 254-051-112 Union 3/4' NPT RH S/Steel
755-732-330139 Union CG/C 2-1/2' BSP RH 254-051B112 Kit Rebuild Suit 254-051-112 U
755-732-411139 Union CG/C 2-1/2' BSP LH 255-000-003 Union 1'-14 UNS RH
250-094-020 Union 3/4' NPT RH 255-000-015 Union M35 X 1.5 LH
655-500K Kit Repair Suit 655-500 Series 255-000-021 Union 3/4' NPT LH
155-000K Kit Repair 155-000 Series 255-000-027 Union 1'-14 UNS LH
157-000C Kit Repair 157-000 Series 255-000B285 Kit Rebuild Suit 255-000-285 U
755-700-415 Union 2-1/2' NPT LH 255-012-016 Union 1'-14 UNS RH PT RTR CG/C
355-000-019 Union 1-1/2' - 12 UNF RH 255-019-487 Union TC/C M22 X 1.5 RH Pt Rot
1690-000-168 Union 1' BSP RH D/Passg With I 255-019B487 Kit Rebuild Suit 255-019-487 U
525-000-055 Union 1-1/4' BSP LH 255-026-020 Union 3/4' NPT RH
555-000B765 Kit Rebuild Suit 555-000-765 U 255-026B020 Kit Rebuild Suit 255-026-020 U
9200-029-117 Union 2' BSP RH Steam Service 255-026B284 Kit Rebuild Suit 255-026-284 U
355-000-002 Union 1' NPT RH 255-052-255 Union 3/4' NPT RH ELS Seals
557-000-198 Union 1-1/2' BSP RH Water Serv 255-052-446 Union 3/4' BSP LH ELS Seals
1116-090-059 Union 5/8'-18 UNF LH 255-052B445 Kit Rebuild Suit 255-052-445 U
527-000-054 Union 1-1/4' BSP RH Water Serv 255-075 Elbow Duoflow 1/2' Fixed Suppl
55-000-002 Union 3/8' NPT LH 255-156-020 Union 3/4' NPT RH
57-000-094 Union 3/8' BSP RH 255-156-021 Union 3/4' NPT LH
250-094-284 Union 3/4' BSP RH 255-156-284 Union 3/4' BSP RH Rotor CG/C S
355-000K Kit Repair Suit 355-000 Series 255-229-015 Union M35 X 1.5 LH
6200-002-137 Union 2' BSP RH Duoflow 255-296-258 Union TC/C 1'-14 UNS RH
857-002C Kit Repair To Suit Union 857-0 255-296B258 Kit Rebuild Suit 255-296-258 U
1109-011-165 Union 5/8'-18UNF LH 255-334B996 Kit Rebuild 255 Series
902-120-188 Union M16 X 1.5 LH 90 Degree. 255-371-996206 Union Duoflow Flanged Mount Ro
555-000-201 Union M50 X 1.5 LH 257-000-014 Union M35 X 1.5 RH
468-100 Union 3 Passage Water Union 257-000-015 Union M35 X 1.5 LH
255-000-285 Union 3/4' BSP LH 257-000-021 Union 3/4' NPH LH
1690-000-115 Union 1' NPT RH D/Passg With I 257-000-023 Union M25 X 1.5 RH
1005-000-049 Union 1/4' BSP RH Shaft Mount 257-000-025 Union M25 X 1.5 LH
857-001-118 Union 3' BSP RH T/II Duoflow F 257-000-027 Union 1'-14 UNS LH
557-050-198 Union 1-1/2' BSP RH ELS 257-000-135 Union 1'-14 UNS RH
355-000-223 Union 1' BSP LH 257-000-136 Union 1'-14 UNS LH
1102-070-029 Union 5/8'-18 UNF RH 257-000-263 Union 1' X UNS RH
257-050-284 Union 3/4' BSP RH 257-000-264 Union 1' X UNS LH
57-000-002 Union 3/8' NPT LH 257-000-284368 Union 3/4' BSP RH
1890-100 Union Deu-plex 1-1/2 NPT RH Ro 257-000B003 Kit Rebuild Suit 257-000-003 U
555-033-160 SPECI Union 1-1/2' NPT LH ELS Seals 257-045-284 Union 3/4' BSP RH Rotor
357-000C Kit Repair 357-000 Series 257-045-285 Union 3/4' BSP LH Rotor
555-000-199 Union 1-1/2' BSP LH 257-050-285 Union 3/4' BSP LH
1005-165-061 Union Viton O-Ring 257-050C Kit Repair 257-050 Series
755-700-413 Union 2-1/2' NPT RH 257-076C Kit Repair 257-076 Series
157-000-022 Union 3/4'-16 UNF LH 257-130-284 Union 3/4' BSP RH Rotor 3/4' B
1500-000 Union Deu-plex 3/8' NPT Ports 264-100 Union Less Flange
255-000-020 Union 3/4' NPT RH 350-084 Elbow Duoflow 1/4' NPT Fixed S
9150-001B117 Kit Rebuild Suit 9150-001-117 350-163 Elbow Duoflow 0.625' Tube
1109-410-248 Union M16 X 1.5 350-221-222 Union 1' BSP RH
55-000K Kit Repair 55-000 Series 350-255 Elbow Duoflow 3/8' BSP Fixed S
55-000-003 Union 5/8' UNF RH 355-000-003 Union 1' NPT LH
655-500-124 Union 2' BSP RH 355-000-074 Union 1-1/2' - 12 UNF LH
257-000-020 Union 3/4' NPT RH 355-000-235 Union M35 X 1.5 RH
1205-000-151 Union 1/2' BSP RH 355-000-236 Union M35 X 1.5 LH
2520-170B Kit Rebuild Suit 2520-170 Unio 355-000B019 Kit Rebuild Suit 355-000-019
655-502B116 Kit Rebuild Suit 655-502-116 U 355-000B074 Kit Rebuild Suit 355-000-074 U
755-700C Kit Repair Suit 755-700 Series 355-012-378 Union 1' BSP RH TC/C
555-000-001 Union 1-1/2' NPT RH 355-012-379 UNION 1' BSP LH TC/C
257-000C Kit Repair Suit 257-000 Series 355-021-003 Union CG/C 1.0' NPT LH
17-025-039 Union 3/8' BSP RH Air/Hydrauli 355-021-016 Union 1 1/2-12 UNF Pilot RH
157-050-021012 Union SIC/SIC 3/4-16 UNF RH EL 355-021-223 Union 1' BSP LH
555-000B001 Kit Rebuild Suit 555-000-001 U 355-021-235 Union M35 X 1.5 RH
255-052-445 Union 3/4' BSP RH ELS Seals 355-021B002 Kit Rebuild Suit 355-021-002 U
55-147-193 Union TC/C 3/8' BSP LH 355-021B019 Kit Rebuild Suit 1-1/2' 12 UNF
57-000-095 Union 3/8' BSP LH 355-021K Kit Repair 355-021 Series
55-000-095 Union 3/8' BSP LH 355-038B222 Kit Rebuild Suit 355-038-222 U
1205-000-021 Union 3/4' BSP RH 355-038B223 Kit Rebuild Suit 355-038-223 U
557-000C Kit Repair 557-000 Series 355-062-222 Union 1' BSP RH CG/C
1590-000C Kit Repair 1590-000 Series 355-064-186 Union TC/C 1' NPT RH
9200-029B117 Kit Rebuild Suit 9200-029-117 355-064-378 Union TC/C 1' BSP RH
1102-070-103 Union 1/4' BSP RH 355-204B222 Kit Rebuild Suit 355-204-222 U
1690-000C Kit Repair 1690-000 Series 355-215-378 Union 1' BSP RH 1' BSP B Port
655-502-116 Union 2' NPT RH. ELS 355-308B222 Kit Rebuild
54-051-112 Union 3/8' NPT RH SS ELS 355-317-317 Union 1' BSP RH
357-050-019 Union 1-1/2' X 12 UNF RH ELS 355-331-074 Union CG/C 1-1/2-12 UNF RH
255-000K Kit Repair Suit 255-000 Series 355-331B019 Kit Rebuild Suit 355-331-019 U
2117-001-109 Union 3/4' NPT RH 355-331B074 Kit Rebuild Suit 355-331-074 U
557-000-199 Union 1-1/2' BSP LH 355-347 Elbow Duoflow Rotating Supply
525-637-054 Union CG/C 1-1/4' BSP RH High 357-000-002 Union 1' NPT RH
9100-001-103 Union 1' NPT RH 357-000-003 Union 1' NPT LH
1115-000-200 Union M16 X 2 RH 357-000-019 Union 1-1/2' X 12 UNF RH
357-000-235 Union M35 X 1.5 RH 357-000-074 Union 1-1/2' X 12 UNF LH
1129-036-301 Union Pop Off M16 X 1.5 LH W/1 357-000-198 Union 1' BSP RH
857-001C Kit Repair 857-001 Series 357-000-236 Union M35 X 1.5 LH
1790-001-113 Union 1-1/4' NPT RH Dble Passa 357-000B002 Kit Rebuild Suit 357-000-002 U
1790-001-114 Union 1-1/4' BSP RH Dble Passa 357-000B222 Kit Rebuild Suit 357-000-222 U
9150-001-104 Union 1-1/2' NPT LH Steam Serv 357-000B223 Kit Rebuild Suit 357-000-223 U
1890-060 Union Deu-Plex 1-1/2' BSP RH 2 357-130-222 Union 1' BSP Special
1005-163-037 Union M10x1 RH Special For Air 450-144 Elbow Duoflow 1.005' Rotat. Su
21-001-122 Union 3/4' BSP RH 452-000-001 Union 1-1/2 NPT RH Rotor Air S
9100-020-220 Union 1' NPT RH Hot Oil Servic 452-000-002 Union 1-1/2' NPT LH
9100-020-221 Union 1' NPT LH Hot Oil Servic 452-000-029 Union 1-3/4' - 12 UN RH
355-021-222 Union 1' BSP RH 452-000-198 Union 1-1/2' BSP RH
1005-020-049 Union 1/4' BSP RH 452-000-199 Union 1-1/2' BSP LH
155-139-151 Union CG/C 1/2' BSP RH 452-000B198 Kit Rebuild Suit 452-000-198 U
555-000B199 Kit Rebuild Suit 555-000-199 U 452-000B199 Kit Rebuild Suit 452-000-199 U
902-225-101 Union Rotating 12mm Pilot 452-001-198 Union With K Port 1-1/2' BSP R
1139-020-116 Union Bearingless Popoff M16x1 455-030-399 Union TC/C 2'-12 UNC RH
157-000B022 Kit Rebuild Suit 157-000-022 U 455-030B399 Kit Rebuild Suit 455-030-399 U
902-121-188 Union M16X1.5 LH Straight Thru 455-069-538 Union TC/TC 2'-12 UNC RH
527-050-054 Union ELS 1-1/4' BSP RH 464-200 Union 3 Passage Special
1116-048-463 Union M16 X 1.5 LH 468-100C Kit Repair Suit 468-100 Series
157-050-151 Union 1/2' BSP RH SIC/SIC ELS 500-023-395 Union 2-12 UN RH
1005-095-045 Union M10 X 1 RH With 500-023-396 Union 2-12 UN LH
1500-000C Kit Repair 1500-000 Series 500-023B395 Kit Rebuild Suit 500-023-395 U
527-000-055 Union 1-1/4' BSP LH 500-023B396 Kit Rebuild Suit 500-023-396 U
2117-001C Kit Repair Suit 2117-001 Serie 500-039-395 Union 2'-12 UN RH
555-000-002 Union 1-1/2' NPT LH 525-000-001 Union 1-1/4' NPT RH
1005-020-038 Union 1/8' NPT RH 525-000-002 Union 1-1/4' NPT LH
1101-338-259 Union M16 X 1.5 LH 525-000-026 Union 1 3/4'-12 UN RH Special
250-094-016 Union 1-14 UNS (PT) RH 525-000B001 Kit Rebuild Suit 525-000-001 U
17-058-056 Union Car Wash 3/8' NPT RH 525-000B054 Kit Rebuild Suit 525-000-054 U
1116-048-059 Union Sic/Sic 5/8'-18 UNF LH 525-042-122 Union 1-1/4 BSP RH Monoflow
1116-090-143 Union M16 X 1.5 LH 525-079 Elbow Duoflow 1/2' BSP Fixed S
557-000-001 Union 1-1/2' NPT RH 525-086-054 Union 1-1/4' BSP RH Special
557-000-002 Union 1-1/2' NPT LH 525-086-055 Union CG/C 1-1/4' BSP LH
1115-130-002 Union SM 3/8' NPT RH 525-086B054 Kit Rebuild Suit 525-086-054 U
357-050-222 Union 1' BSP RH 525-086B055 Kit Rebuild Suit 525-086-055 U
1117-002-116 Union M16 X 1.5 LH 525-097-122 Union 1-1/4' BSP RH ELS
17-025-012 Union 5/8'-UNF RH Air/Hydrauli 525-097-123 Union 1-1/4' BSP LH ELS
1890-116C Kit Repair 1890-116 Series 525-104 Elbow Duoflow 3/4' Fixed Suppl
155-000-001 Union 1/2' NPT RH 525-237 Elbow Duoflow
357-050-223 Union 1' BSP LH 525-301-054 Union 1-1/4' BSP RH B-Port 1-1
6075-001C Kit Repair Suit 6075-001 Serie 525-301-438 Union 1-1/4' BSP RH B-Port 1-1
1005-020-019 Union 3/8'-24 UNF RH 525-301B054 Kit Rebuild Suit 525-301-054 U
157-000-152 Union 1/2' BSP LH Water Servic 525-583B712 Kit Rebuild Suit 525-583-712 U
525-000K Kit Repair Suit 525-000 Series 525-608-054 Union 1-1/4' BSP RH
9150-001-103 Union 1-1/2' NPT RH Steam Serv 527-000-002 Union 1-1/4' NPT LH
9150-406 9125+915 Elbow Duoflow 1/2' BSP Fixed S 527-000-026 Union 1-3/4'-12 UNF RH
2117-005-109251 Union 3/4' NPT RH 527-000-027 Union 1-3/4'-12 UNF LH
257-050-012 Union M22 X 1.5' RH 527-000B054 Kit Rebuild Suit 527-000-054 U
525-189-031 Union 1-3/4' 12 UN RH PT Rotor 527-000C Kit Repair Suit 527-000 Series
1379-160C Kit Repair 1379-160 Series 527-050-001 Union 1-1/4' NPT RH ELS
1205-000-001 Union 1-14 UNS RH 527-050B001 Kit Rebuild Suit 527-050-001 U
1116-090-463 Union M16 X 1.5 LH 54-050-178 Union 3/8' BSP RH SS
555-468 Elbow Duoflow 25.9 Rotating Su 55-000-004 Union 5/8' - 18 UNF LH
555-013 Elbow Duoflow Fixed Supply 3/4 55-000B001 Kit Rebuild Suit 55-000-001 Un
9150-402 9125+915 Elbow Duoflow 1/2' Rotating Sy 55-000B094 Kit Rebuild Suit 55-000-094 Un
355-000B002 Kit Rebuild Suit 355-000-002 U 55-000B095 Kit Rebuild Suit 55-000-095 Un
555-000B198 Kit Rebuild Suit 555-000-198 U 55-041-094 Union 3/8' BSP RH
1102-070-078 Union 5/8' UNF RH 55-041-095 Union 3/8' BSP LH SM
D25-004-214 Union 1' NPT RH Rotor 55-041B094 Kit Rebuild Suit 55-041-094 Un
255-368 Elbow Duoflow 1/4' BSP Fixed S 55-041B095 Kit Rebuild Suit 55-041-095 Un
355-000B222 Kit Rebuild Suit 355-000-222 U 55-120 Elbow Duoflow M6X1 Fixed Suppl
355-064B378 Kit Rebuild Suit 355-064-378 U 55-147-152 Union 3/8' NPT LH TC/C Seals
9150-001B103 Kit Rebuild Suit 9150-001-103 55-147-192 Union TC/C 3/8' BSP LH
6100-017C Kit Repair Suit 6100-017 Serie 55-147B193 Kit Rebuild Suit 55-147-193 Un
555-000B002 Kit Rebuild Suit 555-000-002 U 55-655B094 Kit Rebuild Suit 55-655-094 Un
355-021-002 Union 1' NPT RH 555-000-200 Union M50 X 1.5 RH
355-021-019 Union 1-1/2'-12 UNF RH 555-000-395 Union 2'-12 UN RH
1115-000-017 Union 5/8'-18 UNF LH 555-000-533 Union Quick Connect Rotor
155-012 Elbow Duoflow 1/8' NPT Fixed S 555-000-765 Union FLG 3.93 OD
2117-005-105 Union 3/4' BSP RH 555-016-311 Union M50 X 1.5 RH
1005-113-332 Union 1/8' NPT Female Rotor 555-033-154 Union 1-1/2' NPT RH ELS Seals
1005-000-001 Union 1/8' Tap 90 Shaft Mount 555-033-288 Union 1-1/2' BSP RH
527-000B001 Kit Rebuild Suit 527-000-001 U 555-033-289 Union 1-1/2' BSP LH
57-000-001 Union 3/8' NPT RH 555-033B154 Kit Rebuild Suit 555-033-154 U
255-000B284 Kit Rebuild Suit 255-000-284 U 555-033B288 Kit Rebuild Suit 555-033-288 U
6100-001C Kit Repair Suit 6100-001C Seri 555-033B289 Kit Rebuild Suit 555-033-289
257-000-003 Union 1-1/4' UNS RH Rotor CG/S 555-037-198 Union 1-1/2' BSP RH Union
1890-100C Kit Repair 1890-100 Series 555-037-199 Union 1-1/2' BSP LH
1005-113-063 Union 1/8' NPT RH Rotor 555-037B198 Kit Rebuild Suit 555-037-198 U
255-056-284 Union CG/C 3/4' BSP RH Rotor 555-037B199 Kit Rebuild Suit 555-037-199 U
255-000-012 Union M22 X 1.5 RH PT Rotor 555-058B198 Kit Rebuild
350-083 Elbow Duoflow 3/8' NPT Fixed S 555-385B198 Kit Rebuild Suit 555-000-198 U
1205-000-002 Union 1-1/4' UNS LH 555-459B911 Kit Rebuild Suit 555-459-911 U
55-000B002 Kit Rebuild Suit 55-000-002 Un 555-459B912 Kit Rebuild Suit 555-459-912 U
1890-060C Kit Repair 1890-060 Series 557-000-200 Union M50 X 1.5 RH
57-000C Kit Repair Suit 57-000 Series 557-000-201 Union M50 X 1.5 LH
155-000-002 Union 1/2' NPT LH 557-000-395 Union 2'-12 UN RH
2200-000C Kit Repair To Suit Union 2200- 557-000-396 Union 2'-12 UN LH
21-001C Kit Repair Suit 21-001 Series 557-045-198 Union 1-1/2' BSP RH
155-950 Elbow 10mm X 313mm 557-045-199 Union 1-1/2' BSP LH
1115-000-002 Union 3/8 NPT RH 557-050-199 Union 1-1/2' BSP LH ELS
255-043 Elbow Duoflow 1/4' NPT Fixed S 557-050B198 Kit Rebuild Suit 557-050-198 U
155-000-021 Union 3/4' UNF RH 557-050B199 Kit Rebuild Suit 557-050-199 U
55-637-094 Union 3/8' BSP RH 557-050C Kit Repair Suit 557-050 Series
250-094K Kit Repair 250-094 Series 57-000-003 Union 5/8' - 18 UNF RH
55-030 Elbow Duoflow 1/4' Fixed Suppl 57-000-004 Union 5/8' - 18 UNF LH
155-061 Elbow Duoflow 3/8' Rotating Su 57-050-001 Union 3/8' NPT RH ELS
525-007 Elbow Duoflow 1/2' NPT Fixed S 57-050-003 Union 5/8' - 18 UNF RH ELS
17-025C Kit Repair 17-025C Series 57-050-094 Union 3/8' BSP RH ELS
9100-400 Elbow Duoflow 1/4' NPT Fixed S 57-050C Kit Repair Suit 57-050 Series
555-221 Elbow Duoflow 3/4' Fixed Suppl 6037-001-101 Union 5/8' - 18 UNF RH
AP10-010-210 Union 3/8' BSP RH AP Series 6037-001-102 Union 5/8' - 18 UNF LH
AP10-011-214 Union 3/8' NPT RH AP Series 6037-001-116 Union 3/8' NPT RH
AP12-010-210 Union 1/2' BSP RH AP Series 6037-001-117 Union 3/8' NPT LH
AP8-010-210 Union 1/4' BSP. RH AP Series 6037-001-125 Union 3/8' BSP RH
C15D-004-02-3A Union HPS Steam Service 6037-001C Kit Repair Suit 6037-001 Serie
C15D-004C Kit Repair HPS Union 6037-021-125 Union 3/8'-19 BSP RH
D10-004-214 Union 3/8' NPT RH. D Series 6075-001-132 Union 3/4' BSP RH
D12-003-210 Union 1/2' BSP RH Rotor 6075-001-133 Union 3/4' BSP LH
D12-004-214 Union 1/2' NPT RH Rotor 6075-001-134 Union 1/2' NPT RH
D20-003-210 Union 3/4' BSP RH D Series 6075-001-135 Union 1/2' NPT LH
D25-003-210 Union 1' BSP RH D Series 6075-029-136 Union 1/2' BSP RH
D32-003-210 Union 1-1/4' BSP RH D Series 6075-029C Kit Repair Suit 6075-029 Serie
D32-004-214 Union 1' NPT RH. D Series 6075-031C Kit Repair Suit 6075-031 Serie
N10-020-210 Union. 3/8' BSP RH 6100-001-101 Union 1' NPT RH
N10-020-214 Union 3/8' NPT RH Steam Servic 6100-001-102 Union 1' NPT LH
N10-020B214 Kit Rebuild Suit N10-020B214 6100-001-121 Union 1' BSP RH CG/C
N12-020-210 Union 1/2' BSP RH Monoflow Ste 6100-001-122 Union 1' BSP LH
N12-023-211701 Union 1/2' BSP LH Duoflow Hot 6100-001-123 Union 1-1/2' - 12 UNF RH
N12-023B211 Kit Rebuild 1/2' BSP LH Hot Oi 6100-017-101 Union 1' NPT RH TC/C Seals
1005-000-019 Union 3/8'-24 UNS RH Shaft Mou 6100-017-123 Union 1-1/2' - 12 UNF
1005-000-037 Union M10 RH Shaft Mount 6200-001-123 Union Water 2' NPT RH Monoflow
1005-000-038 Union 1/8' NPT RH Shaft Mount 6200-001C Kit Repair Suit 6200-001 Serie
1005-000B001 Kit Rebuild Suit 1005-000-001 6200-002-115 Union Duoflow 9' Flange Rotor
1005-020-037 Union M10 X 1 RH 6200-002-139 Union 2' BSP LH Duoflow
1005-020-039 Union 3/8'-24 UNF LH 6200-002C Kit Repair Suit 6200-002 Serie
1005-020-061 Union 5/8'-18 UNF RH 6250-001C Kit Repair Suit 6250-001 Serie
1005-020B019 Kit Rebuild Suit 1005-020-019 6250-002-300 Union Duo 9' Flange
1005-020B049 Kit Rebuild Suit 1005-020-049 6250-002C Kit Repair Suit 6250-002 Serie
1005-057-019 Union 3/8' UNS RH Hi Press Sea 6250-018-121 Union 2-1/2' BSP RH
1005-057-049 Union 1/4' BSP RH Hi Press Sea 6250-030-121 Union Duoflow 2-1/2' BSP RH EL
1005-057-157158 S Union Hi Press Seal 9/16 SAE R 6250-030C Kit Repair Suit 6250-030 Serie
1005-113-110 Union 5/16'-24 UNF RH 6250-111 Cap End Suit 6250-030-121 'spe
1005-130-038 Union 1/8' NPT RH Rotor 6300-001C Kit Repair Suit 6300-001 Serie
1005-163B037 Kit Rebuild M10x1 RH 6300-002C Kit Repair Suit 6300-002 Serie
1005-220-038 Union 1/8' NPT RH Rotor 6300-040-103 Union ELS Duo Fixed Siphon Fla
1101-235-236 Union 5/8'-18 UNF LH .625 SIC/ 6300-040C Kit Repair Suit 6300-040 Serie
1101-235-238 Union 5/8'-18 UNF LH .655 6300-125 Elbow Duoflow Fixed Pipe Type
1101-235-259 Union M16 X 1.5 LH 16mm SIC/SI 6400-031C Kit Repair Suit 6400-031 Serie
1101-235-343 Union M16 X 1.5 LH 18mm Pilot 6400-048C Kit Repair Suit 6400-048 Serie
1101-235B238 Kit Rebuild Suit 1101-235-238 655-000K Kit Repair Suit 655-000 Series
1102-025-001004 9 Union CG/TS 1/4' NPT B Port 1/ 655-500-117 Union 2' NPT LH
1102-025-005 Union 1/4' NPT Tap In Shaft 655-500-125 Union 2' BSP LH
1102-025B001 Kit Rebuild Suit 1102-025-0010 655-515-124 Union 2' BSP RH Air Service Sp
1102-070-079 Union 5/8' - 18 UNF LH 657-000-116 Union 2' NPT RH
1102-070-081 Union 1/4' NPT RH 657-000-117 Union 2' NPT LH
1102-070-082 Union 1/4' NPT LH 657-000-125 Union 2' BSP LH
1102-070-104 Union 1/4' BSP LH 657-000C Kit Repair Suit 657-000 Series
1102-070-166 Union 35mm FLG (29F) 657-050-124 Union 2' BSP RH Rotor
1102-070B029 Kit Rebuild Suit 1102-070-029 657-050B124 Kit Rebuild ELS 2' BSP RH
1102-070B078 Kit Rebuild Suit 1102-070-078 755-117 Elbow Duoflow 2 X 1-1/4' NPT 9
1102-070B079 Kit Rebuild Suit 1102-070-079 755-700-330 Union 2-1/2' BSP RH
1102-070B082 Kit Rebuild Suit 1102-070-082 755-700-411 Union 2-1/2' BSP LH
1108-001-102 Union 5/8'-18 UNF LH PLT 755-700-413117 Union 2-1/2' NPT RH Duoflow
1109-010-165 Union 5/8'-18 UNF LH 755-701-330117 Union TC/C 2.5' BSP RH Rotor
1109-010-188 Union M16 X 1.5 LH 755-701B330 Kit Rebuild 2-1/2' BSP RH Roto
1109-021-188 Union M16 X 1.5 LH Coolant Ser 755-701C Kit Repair Suit 755-701 Series
1109-021-192 Union M16 X 1.5 LH 755-702B413 Kit Rebuild
1109-023-212 Union M16 X 1.5 LH 755-707-411 Union 2 1/2' BSP LH Rotor
1109-024-212 Union M16 X 1.5' LH 755-707B411 Kit Rebuild Suit 755-707-411 U
1109-040-388 Union 3/8' 90 Degree End Cap 755-713B495 Kit Rebuild Suit 755 Series Un
1109-041-192 Union M16 X 1.5 LH 755-731-330139 Union Rotating 2-1/2' BSP RH
1109-043-412 Union M16 X 1.5 LH 755-732B411 Kit Rebuild Suit 755 Series Un
1109-044-220 Union M16 X 1.5 LH 755-747C Kit Repair
1109-640-644 Union Pop-Off Coolant Service 755-788C Kit Repair
1115-000B001 Kit Rebuild Suit 1115-000-001 857-000C Kit Repair 857-000 Series
1115-000B017 Kit Rebuild Suit 1115-000-017 857-001-119 Union 3' BSP LH T/II Duoflow F
1115-009-386 Union CG/SIC 5/8-18 UNF LH Rot 857-020C Kit Repair 857-020 Series
1115-130-017 Union SM 5/8'-18 UNF LH Rotor 902-111-165 Union 5/8'-18 UNF LH .655 PLT
1115-179-345 Union 5/8'-18 UNF RH 902-111-192 Union M16 X 1.5 LH
1116-020-248 Union 3/8' NPH RH 902-120-101 Union. Coolant
1116-048-043 Union Sic/Sic 5/8'-18 UNF RH 902-131-217 Union 12mm Male Pilot
1116-048-051 Union 5/8' UNF LH 902-225-104 Union Coolant
1116-048-064 Union 5/8'-18 UNF RH 9075-001-106 Union 3/4' NPT RH
1116-048-143 Union M16 X 1.5 LH PLT 9075-001-107 Union 3/4' NPT LH
1116-048B051 Kit Rebuild Suit 1116-048-051 9075-001B106 Kit Rebuild Suit 9075-001-106
1116-048B059 Kit Rebuild Suit 1116-048-059 9075-014-126 Union 3/4' BSP RH
1116-048B064 Kit Rebuild Suit 1116-048-064 9075-014B126 Kit Rebuild Suit 9075-014-126
1116-090-043 Union 5/8'-18 UNF RH 9075-020-124 Union 3/4' NPT RH Hot Oil Serv
1116-090-051 Union 3/8 NPT 5/8-18NF LH 9075-020-125 Union 3/4' NPH LH Hot Oil Serv
1116-090-064 Union 5/8'-18 UNF RH 9075-020B124 Kit Rebuild Suit 9075-020-124
1116-090-249 Union 5/8' 18 UNF RH 9075-020B125 Kit Rebuild Suit 9075-020-125
1116-090B059 Kit Rebuild Suit 1116-090-059 9075-029-110 Union 3/4' BSP RH Steam Servic
1116-090B249 Kit Rebuild Suit 1116-090-249 9075-029-110409 Union 3/4' BSP RH Duoflow With
1116-319-248 Union 3/8' NPT RH SM 9075-029-111 Union 3/4' BSP LH Steam Servic
1116-555-463 Union M16 X 1.5 SA-090 9075-030-126 Union 3/4' BSP RH Hot Oil Serv
1116-600-059 Union 5/8' 18 UNF Straight LH 9100-001-103135 Union 1' NPT RH Special
1116-600-463 Union Coolant M16 X 1.5 LH 9100-001-109 Union 1' NPT LH Steam Service
1116-610-463 Union Sic/Sic M16 X 1.5 LH 9100-001B103 Kit Rebuild Suit 9100-001-103
1116-672-043 Union 5/8'-18 UNF RH 9100-001B109 Kit Rebuild Suit 9100-001-109
1129-033-301 Union M16 X 1.5 9100-020B220 Kit Rebuild Suit 9100-020-220
1139-032-301 Union Bearingless Deublin 9100-020B221 Kit Rebuild Suit 9100-020-221
1205-000-003 Union 1/2' NPT RH 9100-027-112 Union 1' BSP LH Steam Service
1205-000-004 Union 1/2' NPT LH 9100-027-112408 Union 1' BSP LH Steam Duo Fixe
1205-000-013 Union 1/2' BSP LH 9100-027-113 Union 1' BSP RH Steam Service
1205-000-019 Union 3/4' NPT RH 9100-027B112 Kit Rebuild Suit 9100-027-112
1205-000-025 Union 3/4'-16 UNF LH 9100-027B113 Kit Rebuild Suit 9100-027-113
1205-000-039 Union 3/4'-16 UNF RH 9100-045-211 Union 1' BSP RH Hot Oil Servic
1205-000-586 Union 1/2' BSP RH 9100-045-212 Union 1' BSP LH Hot Oil
1205-000B025 Kit Rebuild Suit 1205-000-025 9100-045B211 Kit Rebuild Suit 9100-045-211
1205-011-012 Union 1/2' BSP RH Rotor 1/2' B 9100-045B212 Kit Rebuild Suit 9100-045-212
1205-065-001 Union 1-14 UNS RH 9100-403 Elbow Duoflow Rotating Siphon
1205-065-021 Union 3/4' BSP RH 9100-409 Elbow Duoflow Fixed Syphon 1/4
1300-082-014 Union 5/8' UNF RH 9125-001-109 Union 1-1/4' NPT RH Steam Serv
1300-082-104 Union 3/8' BSP RH 9125-001-110400 Union 1-1/4' NPT LH Duoflow Wi
1300-084-002 Union 3/8' NPT RH 9125-001B109 Kit Rebuild Suit 9125-001-109
1300-084-023 Union 5/8'-18 UNF RH Rotor 9125-001B110 Kit Rebuild Suit 9125-001-110
1300-084C Kit Repair 1300-084 Series 9125-015-118 Union 1-1/4' BSP RH Steam Serv
1379-160 Union 4 Passage 3/8 Inch BSP 9125-015-119 Union 1-1/4' BSP LH Steam Serv
1379-460 Union 4 Passage 3/8 Inch NPT 9125-015B118 Kit Rebuild Suit 9125-015-118
1379-495 Union 4 Passage Water 3/8' NPT 9125-020-139 Union 1-1/4' NPT RH Hot Oil Se
1379-520 Union 4 Passage Water 3/8' BSP 9125-020-140 Union 1-1/4' NPT LH Hot Oil Se
14075-004-447 Union 3/4' BSP RH 9125-020B139 Kit Rebuild Suit 9125-020-139
1500-194 Union Deu-plex With Oil Wick 9125-020B140 Kit Rebuild Suit 9125-020-140
1500-250 Union Deu-plex Air Service Met 9125-030-137 Union 1-1/4' BSP RH Hot Oil Se
1500-367 Union Deu-plex 1/2' NPT Ports 9125-030B137 Kit Rebuild Suit 9125-030-137
154-015B178 Kit Rebuild Suit 154-015-178 U 9150-001-104400 Union 1-1/2' NPT LH Duoflow
155-000-022 Union 3/4'-16 UNF LH 9150-018-113 Union 1-1/2' BSP RH Steam Serv
155-000-119 Union 1/2' BSPT RH Special Rot 9150-018-114 Union 1-1/2' BSP LH Steam Serv
155-000B022 Kit Rebuild Suit 155-000-022 U 9150-018B113 Kit Rebuild Suit 9150-018-113
155-000B151 Kit Rebuild Suit 155-000-151 U 9150-020-195 Union 1-1/2' NPT RH. Hot Oil S
155-139B151 Kit Rebuild Suit 155-139-151 U 9150-020B195 Kit Rebuild Suit 9150-020-195
155-199 Elbow Duoflow 1/8' BSP Fixed S 9150-020B196 Kit Rebuild Suit 9150-020-196
155-208-252 Union 1/2' BSP RH ELS Seals 9150-124 9125+915 Elbow Duoflow 3/4' NPT Syphon
155-208B113 Kit Rebuild Suit 155-208-113 U 9150-401 9125+915 Elbow Duoflow 3/4' NPT Fixed S
155-208B252 Kit Rebuild Suit 155-208-252 U 9200-001-102 Union 2' NPT RH
155-208B253 Kit Rebuild Suit 155-208-253 U 9200-001-102401 Union 2' NPT RH Duo
155-339-151 Union L/T 1/2' BSP RH 9200-001-111 Union 2' NPT LH
155-471 Elbow Duoflow 9.9mm Rotating S 9200-001-121403 Union Quick Connect Duoflow Ro
155-604-151 Union 1/2' BSP RH 9200-001B102 Kit Rebuild Suit 9200-001-102
155-604B151 Kit Rebuild Suit 155-604-151 U 9200-001B121 Kit Rebuild Suit 9200-001-121
155-604K Kit Repair 9200-020-122 Union 2' Quick Connect. Hot Oi
155-907B021 Kit Rebuild Suit 155-907-021 U 9200-029-118 Union 2' BSP LH
157-000-001 Union 1/2' NPT RH 9200-029B118 Kit Rebuild Suit 9200-029-118
157-000-002 Union 1/2' NPT LH 9200-030-119 Union 2' BSP RH
157-006-021 Union 3/4'-16 UNF RH 9200-030B120 Kit Rebuild 2' BSP LH
157-006-022 Union 3/4'-16 UNF LH 9200-138 Wedge Set Split
157-006B021 Kit Rebuild Suit 157-006-021 U 9200-433 Elbow 9150 & 9200 Series Fixed
157-045-119 Union 1/2' PT RH 927-150-151 Union High Pressure Water 3/4'
157-050-001 Union 1/2' NPT RH SIC/SIC 927-150B151 Kit Rebuild Suit 927-150-151 U
157-050-021061 Union SIC/SIC 3/4-16 UNF RH 943-700 Union Bearingless CG/SIC
157-050-022 Union 3/4'-16UNF LH ELS SEALS

brands > deublin > most common unions

旋转接头的应用范围

旋转接头主要应用于下列各工业部门:

(1) 造纸各种纸张的加工设备,如造纸机的烘缸、蒸球、涂布机、压光机等。
(2) 纤维制品纺织、化纤及印染、麻纺工业，如床单炼漂机、丝光机、平洗机、真空干燥机、精压设备、毛巾烫平机、调节器、纺织品印染烘干设备。各种化学纤维制品有关加工设备等。
(3) 橡胶及塑料压延机、螺旋挤出机、混合搅拌机、捏合机、旋转和层压机、橡胶用鼓式自动硫化机和平板硫化机等、注射成型机、密炼机、发泡机、薄片制造机、开炼机、干燥机、漆布机、漆纸机等。
(4) 皮革、人造革及合成革制革、人造革和合成革的加工制造设备：涂覆机、原布机、精洗机、热辊压力机、辊筒干燥设备等。
(5) 印刷旋转式胶版和照相凹版印刷机、分层干燥设备、混料器等。
(6) 化工及药品圆筒形、圆台形和类似鼓形的干燥机、滚压试验设备、球磨机、层压机、电石炉的电极提升、压放装置、煤焦油分馏用工业萘转鼓结晶机。
(7) 食品粮食、食品烘干设备、捏和机、泄放器、滚压粉碎设备、旋转烘干设备。
(8) 炼钢、金属及合金制品连续铸造机、热钢板矫直机、拉丝、轧钢机、精度较高的滚压设备、挤压机、滚压机、线和管的滚压设备、装卸机械、制造硬质合金的湿磨机。
(9) 电器双水内冷发电机转子冷却、电线电缆的加工设备。
(10) 卷烟烘丝机、烘筋机。
(11) 建材塑料壁纸的加工设备、试验设备、印花机、压花机、沟底印花机、木材加工的热压机。石棉制品的制板机。软木制品的加工设备。
(12) 机械制造油压机、水压机、气液动有关设备、冷却用螺旋压力机、冲和锻设备的夹紧和抓牢装置、缩径设备、挠性软管的卷取设备、加转台机构、磨矿设备、机床、真空设备、镗床、组合机床润滑及冷却装置。
(13) 玻璃工业滚筒式投料机。
(14) 地质石油或其他矿产钻探用的钻机。
(15) 化学机械抛光 CMP抛光机。信德迈科技(北京)有限公司专业提供美国杜博林Deublin多通道旋转接头、导电滑环应用于半导体工业和化学机械抛光机CMP。化学机械抛光机CMP 技术和设备产品配套旋转接头。可广泛应用于IC制造、TSV/3D封装、MEMS、晶圆、基片等制造领域。- 规格参数：6通道旋转接头，介质：空气和无离子水。欢迎咨询、联系和采购 010-8428 2935,13910962635。
旋转接头产品应用领域

- 风力发电
- 自动化设备
- 高精机床
- 冷/热轧机
- 盾构机
- 垂直/水平钻孔机
- 桩工机械
- 石油钻井
- 半导体行业
- 载人离心机
- 卸料离心机
- 卧螺离心机
- 包装，灌装，吹瓶机械
- 注塑机
- 水力发电设备
- 太阳能电池制造
- 特殊专用设备
- 分离离心机
- 起重机制造
- 变速器制造
- 地震勘探设备
- 车辆喷漆生产线
- 真空镀膜技术
- 拖绞船
- 机器人
- 扭矩加载器
- 齿轮箱
- 真空科技
- 医疗影像
- 安检设备
- 光学技术

Deublin Rotary Unions & Swivel Joints & Slip Rings
Authorized China Distributor

信德迈科技(北京)有限公司 CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010 - 8428 2935，8428 9077 ，8428 3983
手机：13910122694
网站：Http://www.cnmec.net

VIEW ONLINE CATALOG >>
REQUEST A CUSTOM PANEL QUOTE >>

QQ: 209136943
Email: sales@cnmec.biz
传真：010-8428 8762
美国DMK Engineering Solutions公司

京ICP备08000876号-2
京公网安备11010502019743
