电气滑环 Deublin Rotating Electrical Slip Ring Connectors
Electrical Slip Rings

电气滑环又称电气集电环或电气旋转接头，可在机器或系统的旋转部件和静止部件之间传输数据、电力和控制信号。Electrical slip rings, also called electrical collectors or electrical rotary joints, allow data, power, and control signals to be transferred between the rotating and stationary parts of a machine or system.

Deublin 库存并制造定制滑环，其设计考虑到了所有用户体验，包括安装简便性、维护简便性和最佳产品寿命。我们的工程方法始于对应用的全面了解。有直通式动力和信号滑环，也有气动和液压滑环，它们对性能和环境规格都有要求。然后，Deublin 将这种理解与我们数十年的旋转设计经验和卓越的产品质量相结合，提供世界一流的产品和客户体验。Deublin stocks and manufactures custom slip rings that are designed with consideration for all user experiences from ease of installation, ease of maintenance and optimal product life. Our Engineering approach starts with a complete understanding of the application. There are through-bore power and signal slip rings and pneumatic and hydraulic slip rings that require both performance and environmental specifications. Deublin then combines this understanding with our decades of rotational design experience and exceptional product quality to deliver a world-class product and customer experience.

Dueblin Rotating Electrical Slip Ring Connectors combine both electrical connection and hydraulic/air/gas from a single stationary connection to a rotating connection. Deublin's design team in Waukegan, Illinois offers a unique plug and play ring and union combination reducing installation and maintenance time. Simply plug or unplug the electrical connection rather than having to disconnect cable connections and hose fittings separately. Deublin can also provide a custom design that is a highly reliable slip ring for the most challenging requirements. Deublin's design capability includes the incorporation of absolute or incremental encoders, optical rotary joints for fiber optical connection, internal heater for use in cold weather conditions and any other special requirements.

Deublin Rotating Electrical Slip Ring Connectors combine both electrical connection and hydraulic/air/gas from a single stationary connection to a rotating connection. Deublin's design offers a unique plug and play ring and union combination reducing installation and maintenance time. Simply plug or unplug the electrical connection rather than having to disconnect cable connections and hose fittings separately. Deublin can also provide a custom design that is a highly reliable slip ring for the most challenging requirements.

• Voltage: Up to 1000 Volts AC (single or three phase) or DC
• Current: Up to 250 Amperes AC or DC
• Signal Types: Analog, digital and other logic control
• EMI Shielding: Shielding of analog, digital, RF and Microwave signals
• Brush Technology: Monofilament or multi-fiber precious metal
• Electrical Connection: Cables/leads, circular industrial or military connectors, RJ45, screw or spring terminal blocks
• Mounting: Flanged, threaded, or hollow rotor mount
• Rotational Speed: Up to 10,000 rpm
• Operating Life: Up to 200,000,000 cycles (rotations)
• Ingress Protection Rating: Up to IP66 or NEMA 12

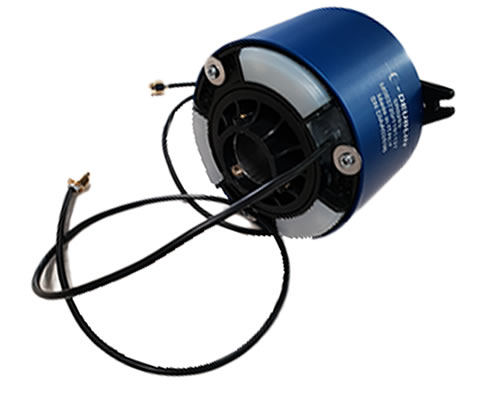

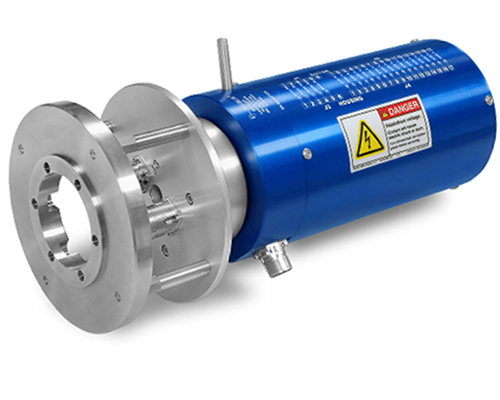

标准滑环Standard Slip Rings For Reliable Transfer of Power and Signal 实现可靠的电力和信号传输	通孔滑环Through-Bore Slip Rings Rugged Design to Handle any RotatingAssembly 设计坚固，可处理任何旋转组件

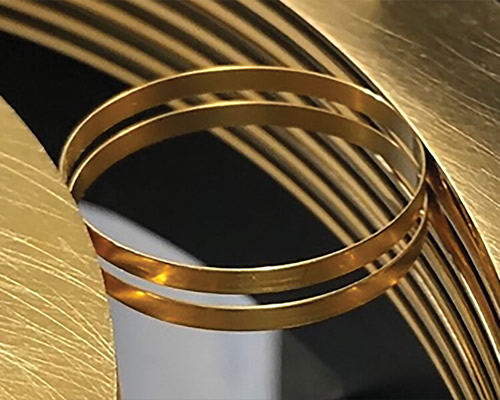

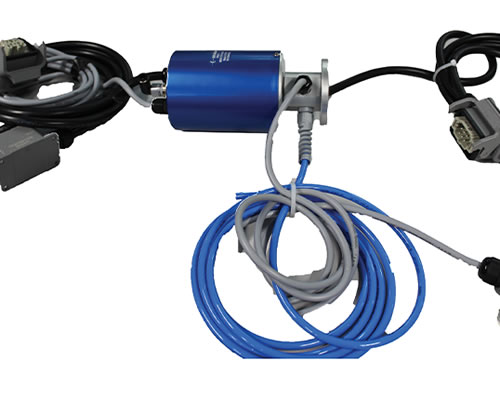

综合解决方案Integrated Solutions Slip Ring and Rotary Union Solutions 用于电气和介质传输的滑环和旋转接头解决方案	免维护(滚环)Maintenance free (Roll-Rings) The Maintenance-Free slip ring solution formission-critical erospace,defense,industrialand space applications worldwide. 免维护滑环解决方案适用于全球关键任务航空航天、国防、工业和空间应用。

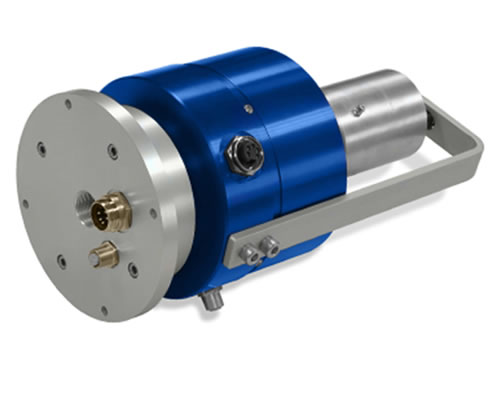

定制滑环解决方案Custom Slip Ring Solutions Fill out the form below to best describe yourapplication requirements. An application engineer will contact you todesign a custom Deublin slip ring solution. 请填写下表，描述您的应用要求。应用工程师将与您联系，设计定制的 Deublin 滑环解决方案。

Dueblin旋转电气滑环 连接器结合 了电气连接以及液压/空气/气体，从单一固定连接连接到旋转连接。Deublin位于伊利诺伊州沃基根的设计团队提供独特的插即用环和接头组合，缩短安装和维护时间。只需插入或拔掉电气连接，无需分别拔除电缆和软管接头。Deublin还可以提供定制设计，成为最复杂的需求中高度可靠的滑环。德布林的设计能力包括绝对编码器或增量编码器、用于光纤连接的光学旋转接头、寒冷天气条件下的内部加热器以及其他特殊需求。

杜博林旋转电滑环 连接器将电气连接和液压/空气/气体从单一固定连接连接到旋转连接结合起来。Deublin的设计采用独特的插即用环形和接头组合，缩短安装和维护时间。只需插入或拔掉电气连接，无需分别拔除电缆和软管接头。Deublin还可以提供定制设计，成为最复杂的需求中高度可靠的滑环。

• 电压：最高1000伏交流电（单相或三相）或直流电
• 电流：最高250安培交流或直流
• 信号类型：模拟、数字及其他逻辑控制
• 电磁干扰屏蔽：模拟、数字、射频和微波信号的屏蔽
• 刷子技术：单丝或多纤维贵金属
• 电气连接：电缆/引脚，圆形工业或军用连接器，RJ45，螺丝或弹簧端子块
• 安装方式：带法兰、螺纹或空心转子安装
• 转速：最高10,000转/分钟
• 使用寿命：最多2亿次循环（旋转）
• 入侵防护等级：最高IP66或NEMA 12

DEUBLIN?is the leading manufacturer of rotating unions for use in the industrial sector and wind power industry. Building on decades of experience in the implementation of sophisticated rotating union applications,?DEUBLIN?has developed electrical slip rings in such a way that they meet the requirements of today’s demanding environments.
The electrical slip rings use the newest technology in order to guarantee long-term operation and a reliable connection of signalling and power.
DEUBLIN?slip rings were developed in order to meet the demands of industrial manufacturers for a longer operating lifespan. The integrated system was optimized with the help of special material configurations which are designed to enable a hundred million of rotations, whereby long-term smooth operation at high capacity is achieved. What is most important for?DEUBLIN?during the development phase is high reliability which significantly reduces downtime and maintenance costs.

As with all?DEUBLIN?products, our slip rings are 100% tested before being used operationally and they are manufactured using the most modern of manufacturing processes. Durable technology ensures constant and reliable performance and maintenance-free operation.
