Barco Type E75 RS & RSX 3” Size旋转接头
The BARCO E-75RS 3" water rotary union includes state-of-the-art technology for use with water applications. It was developed for use on mills and calenders in the rubber industry, galvanizing lines in the steel industry and film lines in the plastic industry.
Special Design Features
>Dry Run Capability Silicon carbide to carbon graphite mechanical seals
>Clean, unobstructed flow path
>Slinger and vented housing protects bearings from grease washout
>Widely separated, pre-loaded bearings minimize vibrations
>Replaceable seal assembly
>Mono-Flow and Duo-Flow configurations Threaded and flanged connections
Sizes:
3"
Temp:
+250°F (120°C)
Pressure Rating:
150 PSI 10.3 BAR For higher temperature fluids contact Barco Engineering
RPM:
3" 500 RPM
Download PDF Tech Sheet (187 KB)
General Info
Rotary Union
Mono-Flow
Part Number
Duo-Flow
Part Number |
A |
B |
C Pipe Length
into Union |
D |
E |
Syphon
Pipe Size |
| BC-31515-48-01 |
3" NPT (R.H.) |
1.87"
(47) |
16.35"
(415) |
2" NPT |
1.867" - 1.865"
47.42 - 47.37 |
1-1/2" |
| BC-31516-48-01 |
3" NPT (L.H.) |
| BC-31534-48-01 |
3" BSP (R.H.) |
1.73"
(44) |
| BC-31535-48-01 |
3" BSP (L.H.) |
| BC-31510-48-01 |
Quick-Release |
See Detail |
17.63""
(448) |
| BC-31504-48-01 |
3" NPT (R.H.) |
1.87"
(47) |
16.08"
(408) |
2" NPT |
2.308" - 2.302"
58.62 - 58.475 |
2" |
| BC-31505-48-01 |
3" NPT (L.H.) |
| BC-31536-48-01 |
3" BSP (R.H.) |
1.73"
(44) |
| BC-31537-48-01 |
3" BSP (L.H.) |
| BC-31506-48-01 |
Quick-Release |
See Detail |
17.36"
(441) |
Duo-Flow
Part Number |
A |
B |
C Pipe Length
into Union |
D |
Syphon Pipe
Size |
F
Thread |
| BC-31507-48-01 |
3" NPT (R.H.) |
1.87"
(47) |
16.44"
(417) |
2" NPT |
1-1/2" |
1-1/2" NPT |
| BC-31508-48-01 |
3" NPT (L.H.) |
| BC-31538-48-01 |
3" BSP (R.H.) |
1.73"
(44) |
| BC-31539-48-01 |
3" BSP (L.H.) |
| BC-31514-48-01 |
Quick-Release |
See Detail |
17.72""
(450) |
| BC-31520-48-01 |
3" NPT (R.H.) |
1.87"
(47) |
16.23"
(412) |
2" NPT |
2" |
2" NPT |
| BC-31521-48-01 |
3" NPT (L.H.) |
| BC-31540-48-01 |
3" BSP (R.H.) |
1.73"
(44) |
| BC-31541-48-01 |
3" BSP (L.H.) |
| BC-31533-48-01 |
Quick-Release |
See Detail |
17.55"
(446) |
BC-31500-48-01 3" NPT
R.H. 1.87"
(47) 3" NPT
BC-31501-48-01 3" NPT
L.H.
BC-31542-48-01 3" BSP
R.H. 1.73"
(44)
BC-31543-48-01 3" BSP
L.H.
BC-31502-48-01 Quick
Release see
detail
*denotes dimensions which are standard on all NPT and BSP Mono-Flow and Duo-Flow unions.

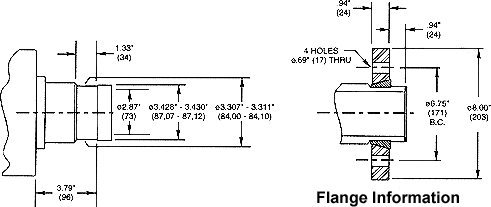

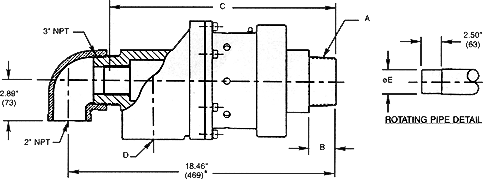

Duo-Flow Rotating Pipe
Duo-Flow
Part Number
A
B
C Pipe Length
into Union
D
E
Syphon
Pipe Size
BC-31515-48-01 3" NPT (R.H.) 1.87"
(47) 16.35"
(415) 2" NPT 1.867" - 1.865"
47.42 - 47.37 1-1/2"
BC-31516-48-01 3" NPT (L.H.)
BC-31534-48-01 3" BSP (R.H.) 1.73"
(44)
BC-31535-48-01 3" BSP (L.H.)
BC-31510-48-01 Quick-Release See Detail 17.63""
(448)
BC-31504-48-01 3" NPT (R.H.) 1.87"
(47) 16.08"
(408) 2" NPT 2.308" - 2.302"
58.62 - 58.475 2"
BC-31505-48-01 3" NPT (L.H.)
BC-31536-48-01 3" BSP (R.H.) 1.73"
(44)
BC-31537-48-01 3" BSP (L.H.)
BC-31506-48-01 Quick-Release See Detail 17.36"
(441)
Duo-Flow Fixed Pipe
Duo-Flow
Part Number
A
B
C Pipe Length
into Union
D
Syphon Pipe
Size
F
Thread
BC-31507-48-01 3" NPT (R.H.) 1.87"
(47) 16.44"
(417) 2" NPT 1-1/2" 1-1/2" NPT
BC-31508-48-01 3" NPT (L.H.)
BC-31538-48-01 3" BSP (R.H.) 1.73"
(44)
BC-31539-48-01 3" BSP (L.H.)
BC-31514-48-01 Quick-Release See Detail 17.72""
(450)
BC-31520-48-01 3" NPT (R.H.) 1.87"
(47) 16.23"
(412) 2" NPT 2" 2" NPT
BC-31521-48-01 3" NPT (L.H.)
BC-31540-48-01 3" BSP (R.H.) 1.73"
(44)
BC-31541-48-01 3" BSP (L.H.)
BC-31533-48-01 Quick-Release See Detail 17.55"
|
