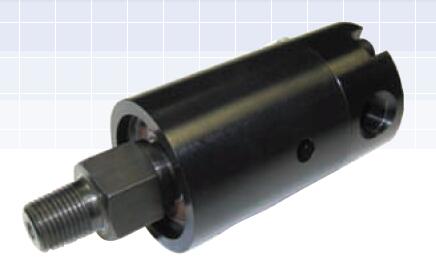

Barco SFL Coolant Rotary Union旋转接头
Bearing Supported Style
The BARCO SFL Rotary Union is designed to supply coolant to high speed, multi-spindle heads and independent box spindles on automotive transfer lines. Dial machines, grinding machines and gun drills are also potential applications.
Our state-of-the-art silicon carbide seals and the specially protected sealed-for-life bearings make this union ideal for new installations as well as for retrofits of other manufacturers coolant unions. The BARCO SFL is the only rotary union that's color coded to ensure choosing the correct union in replacement situations.
Special Design Features
>Unique, sealed-for-life bearing design.
>Dual oil lip-seals protect bearings from both sides - prevent grease washout.
>Exclusive, large double row angular contact bearings in a compact, rigid design with tolerance to hose side loading.
>Silicon carbide to silicon carbide mechanical seals.
>Color coded housing identifies mounting thread.
>Wrench flats fit standard US and metric tools.
>Directly interchangeable with virtually any OEM self-supported rotary union.
High speed, multiple spindle head applications
Download PDF Tech Sheet (113 KB)
General Info

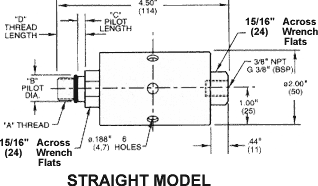

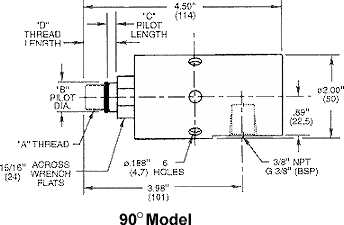

Specifications for NPT
Style
NPT |
Part Number |
Color |
"A"?
Thread |
"B"
Pilot Dia. |
"C"
Pilot Length |
"D"
Thread Length |
S1 |
S2
min. |
| STR. |
BC-54913-06-06 |
Red |
M12 x 1.25 LH |
.5300"-.5305"
(13.462-13.475) |
.188"
(4.78) |
.750"
(19) |
.5307"-.5311"
(13.479-13.490) |
.81*
(21) |
| 90° |
BC-54909-06-06 |
| STR. |
BC-54915-06-06 |
Black |
M16 x 1.5 LH |
.7078"-.7083"
(17.978-17.993) |
.188"
(4.78) |
.621"
(15.7) |
.7085" - .7087"
(17.995-18.000) |
.67*
(17) |
| 90° |
BC-54903-06-06 |
| STR. |
BC-54917-06-06 |
Gold |
5/8"-18 UNF LH |
.6550"-.6555"
(16.637-16.650) |
.188"
(4.78) |
.750"
(19) |
.6556" - .6560"
(16.652-16.663) |
.81*
(21) |
| 90° |
BC-54905-06-06 |
| ? Special threads available. |
Style
NPT Part Number
STR. BC-54913-06-06 Red M12 x 1.25 LH .5300"-.5305"
(13.462-13.475) .188"
(4.78) .750"
(19) .5307"-.5311"
(13.479-13.490) .81*
(21)
90° BC-54909-06-06
STR. BC-54915-06-06 Black M16 x 1.5 LH .7078"-.7083"
(17.978-17.993) .188"
(4.78) .621"
(15.7) .7085" - .7087"
(17.995-18.000) .67*
(17)
90° BC-54903-06-06
STR. BC-54917-06-06 Gold 5/8"-18 UNF LH .6550"-.6555"
(16.637-16.650) .188"
(4.78) .750"
(19) .6556" - .6560"
(16.652-16.663) .81*
(21)
90° BC-54905-06-06
? Special threads available.
Specifications for BSP
Style
BSP |
Part Number |
Color |
"A"?
Thread |
"B"
Pilot Dia. |
"C"
Pilot Length |
"D"
Thread Length |
S1 |
S2
min. |
| STR. |
BC-54949-06-06 |
Red |
M12 x 1.25 LH |
.5300"-.5305"
(13.462-13.475) |
.188"
(4.78) |
.750"
(19) |
.5307"-.5311"
(13.479-13.490) |
.81*
(21) |
| 90° |
BC-54939-06-06 |
| STR. |
BC-54943-06-06 |
Black |
M16 x 1.5 LH |
.7078"-.7083"
(17.978-17.993) |
.188"
(4.78) |
.621"
(15.7) |
.7085" - .7087"
(17.995-18.000) |
.67*
(17) |
| 90° |
BC-54933-06-06 |
| STR. |
BC-54945-06-06 |
Gold |
5/8"-18 UNF LH |
.6550"-.6555"
(16.637-16.650) |
.188"
(4.78) |
.750"
(19) |
.6556" - .6560"
(16.652-16.663) |
.81*
(21) |
| 90° |
BC-54935-06-06 |
Style
BSP
Part Number
Color
"A"?
Thread
"B"
Pilot Dia.
"C"
Pilot Length
"D"
Thread Length
S1
S2
min.
STR. BC-54949-06-06 Red M12 x 1.25 LH .5300"-.5305"
(13.462-13.475) .188"
(4.78) .750"
(19) .5307"-.5311"
(13.479-13.490) .81*
(21)
90° BC-54939-06-06
STR. BC-54943-06-06 Black M16 x 1.5 LH .7078"-.7083"
(17.978-17.993) .188"
(4.78) .621"
(15.7) .7085" - .7087"
(17.995-18.000) .67*
(17)
90° BC-54933-06-06
STR. BC-54945-06-06 Gold 5/8"-18 UNF LH .6550"-.6555"
(16.637-16.650) .188"
(4.78) .750"
(19) .6556" - .6560"
(16.652-16.663) .81*
(21)
90° BC-54935-06-06
|
