Rotating Union 4-Passages for Water, gaseous Media and additional Slip Ring
4通道水、气体介质旋转接头和导电滑环组合接头 SP0231

– 紧凑型设计
– 打开中心通道,以便通过最多12个销的滑环电线
– 法兰式
– 不同密封技术的结合

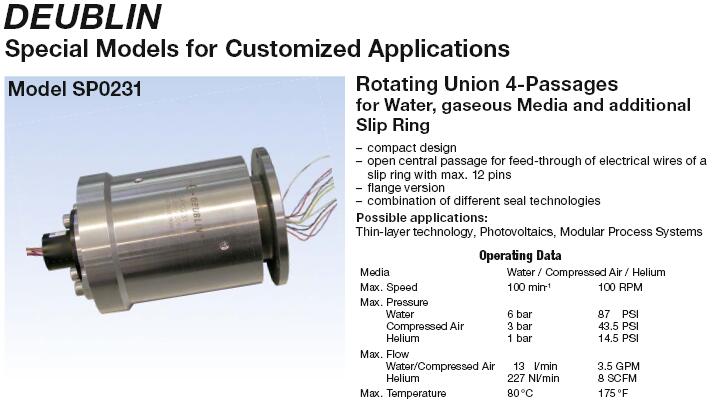

DEUBLIN Special Models for Customized Applications

Rotating Union 4-Passages for Water, gaseous Media and additional Slip Ring

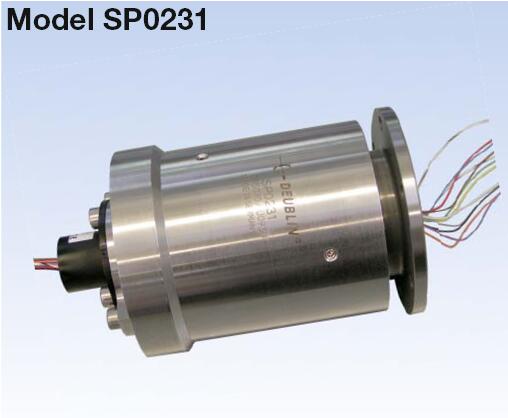

MODEL SP0231
– compact design
– open central passage for feed-through of electrical wires of a slip ring with max. 12 pins
– flange version
– combination of different seal technologies

应用:

薄层技术、光伏、模块化工艺系统
Thin-layer technology, Photovoltaics, Modular Process Systems

SP0231规格性能参数:

Rotating Union 4-Passages
for Water, gaseous Media and additional
Slip Ring

– compact design
– open central passage for feed-through of electrical wires of a
slip ring with max. 12 pins

– flange version
– combination of different seal technologies
Possible applications:

Thin-layer technology, Photovoltaics, Modular Process Systems

Operating Data

介质: Water / Compressed Air / Helium
转速:100 min-1 100 RPM
压力:
Water :6 bar 87 PSI
Compressed Air:3 bar 43.5 PSI
Helium :1 bar 14.5 PSI

Max. Flow
Water/Compressed Air :13 l/min 3.5 GPM
Helium:227 Nl/min 8 SCFM

温度: 80 °C 175 °F
