Rotating Union 7-Passages for Compressed Air (3-Passages) and Hydraulic Oil (4-Passages) Turn tables in machine tools
美国杜博林Deublin机床转台用7通道旋转接头SP0152




美国Deublin杜博林机床转台用七通道旋转接头SP0152

用于压缩空气(3通道)和液压油(4通道)

–滚珠轴承支撑型
–所有能够干运行的通道
–三种密封技术的结合
–法兰式




可能的应用:Turn tables in machine tools 机床转台

Rotating Union 7-Passages for Compressed Air (3-Passages) and Hydraulic Oil (4-Passages)
–– ball bearing supported version
–– all passages capable of dry running
–– combination of three sealing technologies
–– flange version
Possible applications:
Turn tables in machine tools

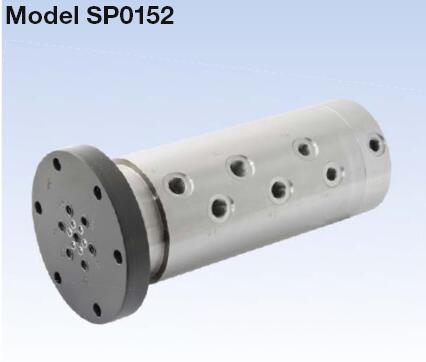

SP0152

Operating Data

Media Compressed Air / Hydraulic Oil
Max. Speed 500 min-1 500 RPM
Max. Pressure
Compressed Air : 8 bar
Hydraulic Oil : 200 bar

116 PSI
2,900 PSI
Max. Temperature 70 °C 158 °F



美国Deublin 公司成立于1945年。是世界上专业生产各种精密旋转接头、蒸汽接头、虹吸管和各类内部膨胀管的厂家。该公司产品设计新颖,加工精良,性能可靠,不易泄漏,使用寿命长,维护方便,型号系列化。广泛应用于造纸、冶金、钢铁、印刷、机械等行业,在世界同行业中享有较高的声誉。 旋转接头-Deublin Rotaing Unions and Rotating Electrical Slip Rings产品广泛应用于机床、冶金、造纸-印刷-包装-纺织、半导体IC-风力发电-太阳能-光伏、橡胶-塑料-轮胎、汽车、机械工程、石油机械等行业。Deublin旋转接头型号多达7000多种。

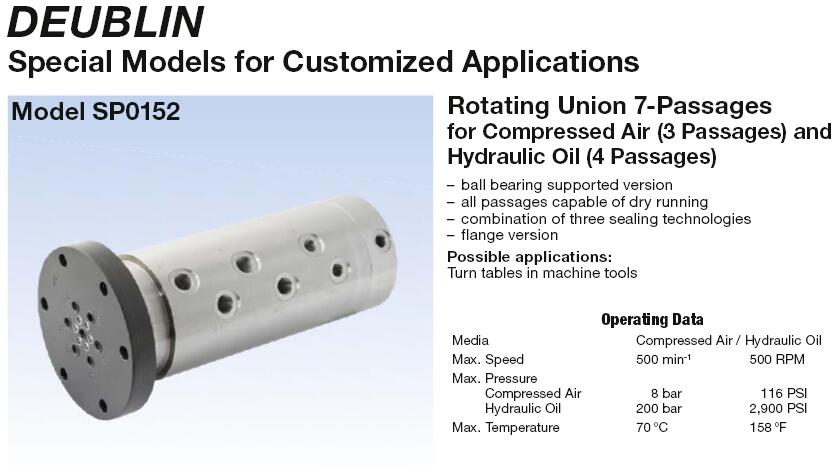

DEUBLIN Special Models for Customized Applications
Operating Data
Media Compressed Air / Hydraulic Oil
Max. Speed 500 min-1 500 RPM
Max. Pressure
Compressed Air
Hydraulic Oil
8 bar
200 bar
116 PSI
2,900 PSI
Max. Temperature 70 °C 158 °F

Rotating Union 7-Passages
for Compressed Air (3-Passages) and
Hydraulic Oil (4-Passages)
–– ball bearing supported version
–– all passages capable of dry running
–– combination of three sealing technologies
–– flange version
Possible applications:
Turn tables in machine tools
