多介质 Multi-Media

机床解决方案,更快的进给速度和更高的可靠性。 Machine Tool Solutions for Faster Feed Rates and Greater Reliability




低速Low Speed

无论您的应用程序需要一个通道还是四个通道,Deublin都有各种各样的多媒体旋转接头。借助Deublin强大的多通道旋转活接头,可以提高利润率并减少停机时间。从Deublin的标准系列中选择一个工会,或与专家团队合作创建您的自定义解决方案。 Whether your application needs one or four passages, Deublin has a wide variety of multimedia rotary unions. Increase your profitablity and reduce your downtime with Deublin's robust multi-passage rotating unions. Select a union from Deublin's standard line, or work with a team of experts to create your custom solution.

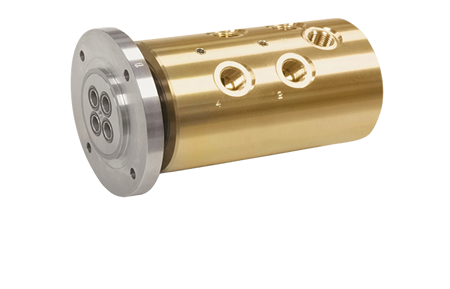

1379系列

对于夹紧和松开,工件或主轴冷却等应用,Deublin的4通道旋转接头可以处理各种类型的介质,而不会造成交叉污染。多通道旋转活接具有宽间隔的球轴承,可承受侧向载荷,从而延长了活接寿命。For applications such as clamping and unclamping, workpiece, or spindle cooling, Deublin's 4-passage rotary union can handle various types of media without cross-contamination. The multi-channel rotating union features widely spaced ball bearings for a longer union life by tolerating side loading.

线圈绕制 Coil Winding

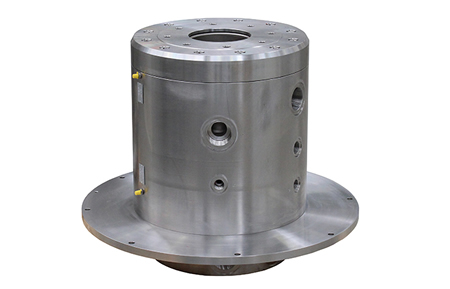

MPSS-000384

Deublin将根据您的要求自定义渠道的大小和数量。Deublin will customize the size and number of channels to your requirements.





高速High Speed

通过独立的通道传送多种类型的介质可能会变得很复杂。Deublin的多媒体旋转接头设计用于隔离每种类型的介质,以防止混合。Deublin的解决方案可确保最小的磨损和停机时间。 Conveying multiple types of media through independent passages can become complicated. Deublin's multi-media rotating unions are designed to isolate each type of media to prevent mixing. Deublin has the solution to ensure minimal wear and downtime.

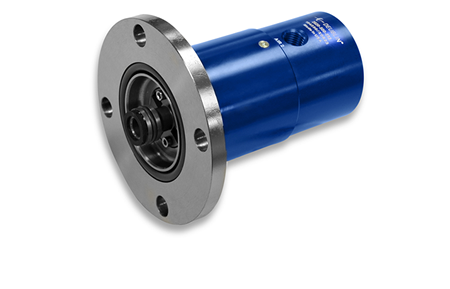

2620系列

当传输两种类型的介质时,Deublin的多通道2620包含两个独立的通道,并带有平衡的机械密封。密封设计可最大程度地提高操作效率,并延长使用寿命。建议将两通道旋转活接头用于诸如机床主轴,隔膜卡盘或夹紧和松开的应用。

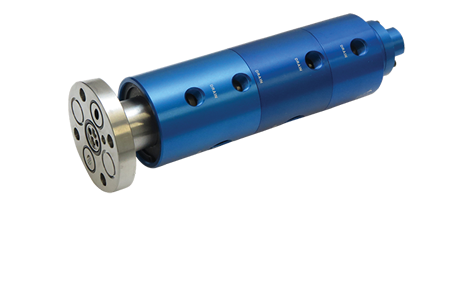

2630系列

多通道旋转接头包含3个独立的通道,用于不同类型的介质,包括冷却剂和干燥空气。平衡的机械密封件与AutoSense?技术集成在一起,可承受高速和高压。2630是DDRT应用程序的强大解决方案。

2650系列

Deublin的多媒体机床旋转接头具有5个独立通道,并具有平衡的机械密封。密封件可承受高速和高压,从而具有更长的免维护寿命。

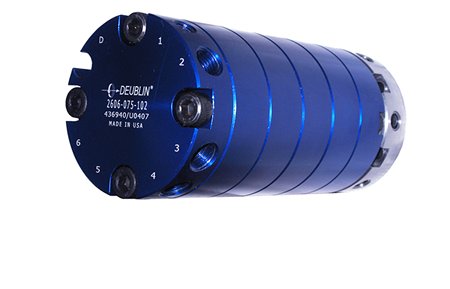

2606系列

数据驱动的旋转工作台需要多个通道来传送不同的介质,以用于空气清洁,主轴清洁等应用。为了处理1000 rpm以上的转速和各种介质,2606配备了平衡的机械密封和封闭式密封技术,从而消除了交叉污染并延长了活接头的使用寿命。

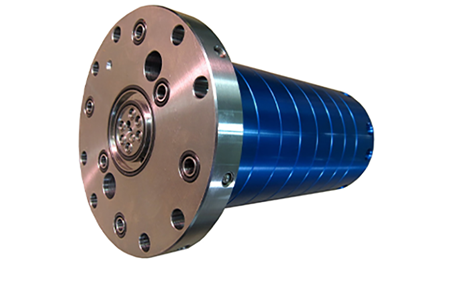

2608系列

DDRT应用程序通过八个通道实现了Deublin的高速旋转活接。8通道联合可处理多达三种不同类型的介质;冷却油,液压油和空气。从Deublin获得针对工件,主轴冷却或空气清洁的最佳解决方案。
