农业与建筑Agriculture and Construction

农业设备和越野机械的耐用解决方案Durable Solutions for Farm Equipment and Off-Road Machinery







Clutches, Brakes, and Variable Speed Drives离合器,制动器和变速驱动器


建筑和农用设备利用Deublin的液压气动旋转接头,为离合器,制动器和变速驱动器提供可靠的性能和作用力。 Construction and farming equipment utilizes Deublin's hydraulic-pneumatic rotary unions for reliable performance and force for clutches, breaks, and variable speed drives.



In-Shaft轴内

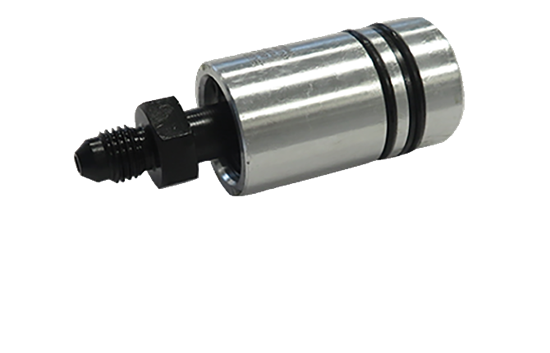

1005-535-094旋转接头

Deublin的轴内液压1005旋转活接头可安装在难以到达的狭小位置,例如在机加工盖板后面。Deublin's in-shaft hydraulic 1005 rotating union can fit in small, difficult-to-reach places such as behind machining cover panels.

End of Shaft轴端

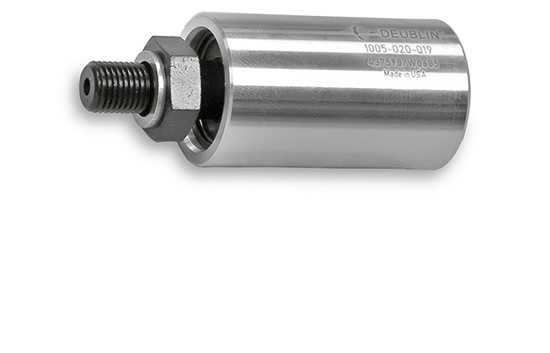

1005-020-019旋转接头

Deublin的通用旋转接头,用于空气和液压油,为重型机械提供了低维护,紧凑的解决方案。Deublin's versatile rotating unions for air and hydraulic oil for a low-maintenance, compact solution in heavy machinery.

Compact In-Shaft紧凑型轴内

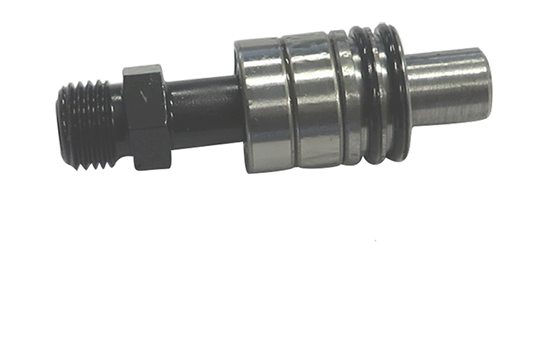

Bore Mounted Rotary Union 8412-700

这种Deublin液压活接头的外径为7/8英寸,可安装在最小的轴上,对于重型设备也很耐用。With a 7/8" outer diameter, this Deublin hydraulic union fits in the smallest shafts and is durable for heavy equipment.

Threaded Mount螺纹安装

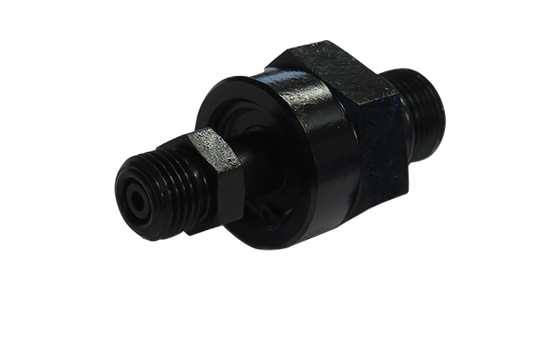

936-275旋转接头

Deublin液压接头具有行业标准的SAE螺纹和端面密封。Deublin hydraulic unions are available with industry-standard SAE threads and face seals.






采矿与建筑Mining & Construction

采矿机械和建筑设备依靠旋转接头处理恶劣的工作环境,以确保安全和高性能。 Mining machinery and construction equipment rely on rotary unions to handle tough working environments to ensure safety and high performance.

Infrastructure基础设施

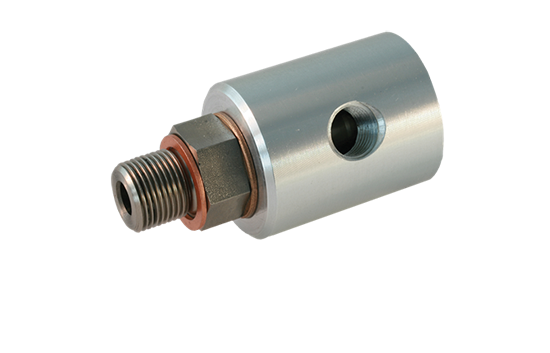

17-025-039旋转接头

Deublin为具有低RPM要求的建筑设备(例如铺路)提供坚固的联合解决方案。Deublin provides rugged union solutions to construction equipment with low RPM requirements, such as paving.

Conveyance输送

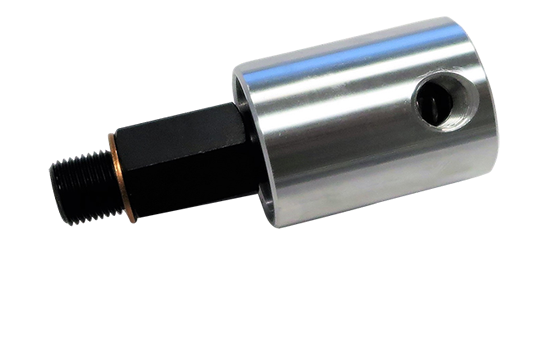

1102-070-078旋转接头

诸如振动给料机和旋转给料机之类的物料处理系统依靠Deublin旋转接头为机器提供空气和液压油。Material handling systems, like vibratory and rotary feeders, depend on Deublin rotary unions to supply air and hydraulic oil to the machine.

Ore Processing矿石加工

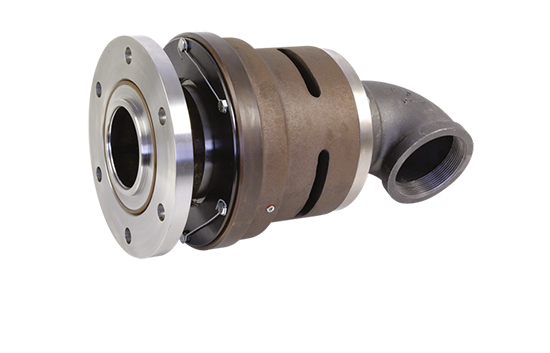

6400-030-330旋转接头

地下水对于矿物加工至关重要,即使在恶劣的环境条件下,Deublin旋转接头也能密封,以提供最浓缩的物质。Groundwater is central to mineral processing, and Deublin rotating unions seal even under tough environmental conditions to provide the most concentrated material.

Specialty专业

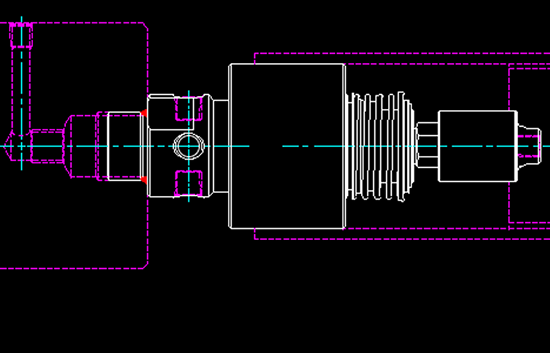

9611-300旋转接头

来自Deublin的专用工会提供了岩石破碎和加工设备的帮助。Special-purpose unions from Deublin help with rock crushing and processing equipment.





Fan Pitch Control 风扇音调控制


配备Deublin活接头的 风扇- 用于地下通风,发动机冷却和工业空气循环-可以改变空气流量,甚至改变空气流量。 Fans – for underground ventilation, engine cooling, and industrial air circulation – can change the volume of air flow and even reverse airflow when equipped with a Deublin union.



Severe-Duty重载

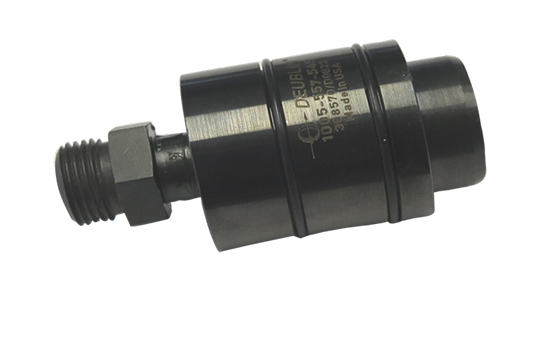

1005-557-545 旋转接头

某些工会模式增加了防止灰尘进入的保护,可用于农业和建筑工地。Certain union models have added protection against dust ingress for use in the farm industry and construction sites.

90° In-Shaft 90°轴内

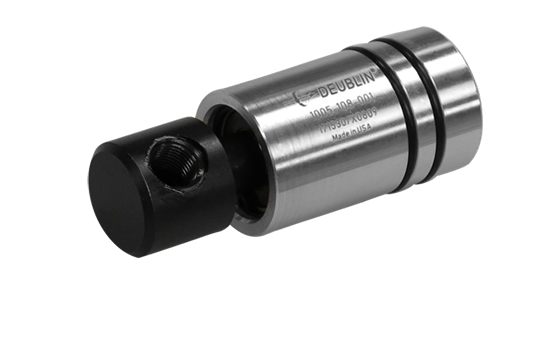

1005-108-001 旋转接头

适应能源需求和环境变化,Deublin的紧凑型轴内设计可处理高达70 bar的液压油,并且易于安装和维护。Adapting to energy demands and environmental changes, Deublin's compact, in-shaft design handles up to 70 bar hydraulic oil and is easy to install and maintain.

Contactless Sealing非接触式密封

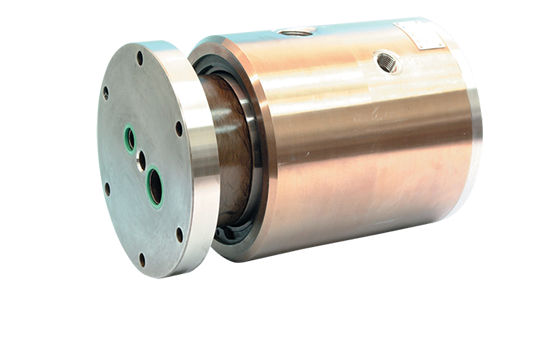

7100-700 旋转接头

最大的工业风扇使用Deublin活接头来实现可靠的长寿命螺距控制。The largest industrial fans use Deublin unions for reliable, long-lived pitch control.

Custom Integration定制整合

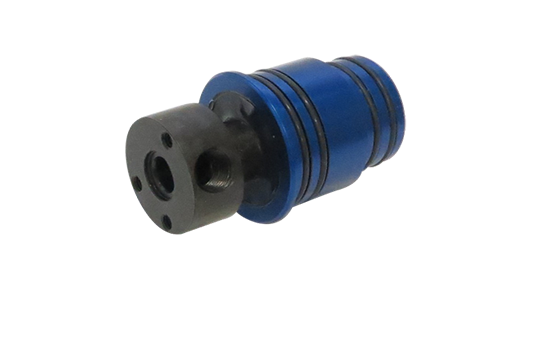

SP0338 旋转接头

重型工业过程应用具有Deublin紧凑的轴内设计,可处理高达70 bar的液压油。Heavy industrial-process applications feature Deublin's compact in-shaft design that can handle up to 70 bar hydraulic oil.



中央轮胎充气Central Tire Inflation


中央轮胎充气系统可以通过改变轮胎与路面之间的接触面积来提高牵引力,并减少道路和轮胎的磨损。Deublin接头允许“行进中”的轮胎压力增加和减少。Central tire inflation systems can improve traction as well as reduce road and tire wear by changing the contact area between tire and road surface. Deublin unions allow "on the go" increase and decrease of tire pressure.

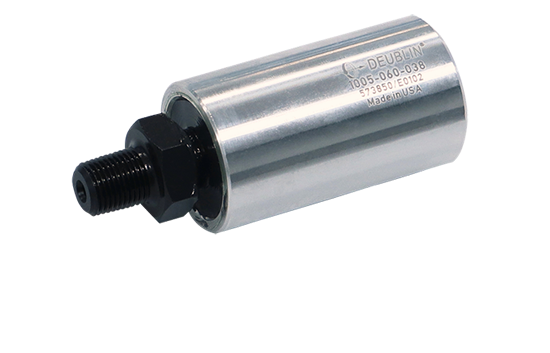

1/8" 旋转接头1005-060-038

具有1/8“流路的Deublin联合管专为空间受限的应用而设计,以控制轮胎充气并改善车辆性能。Deublin's union with a 1/8" flow path is built for space-constrained applications to control tire inflation and improve vehicle performance.

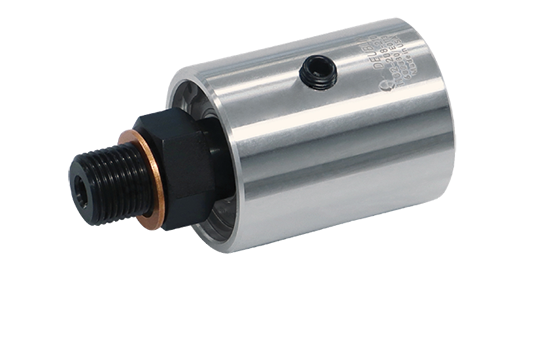

1/4" 旋转接头1102-208-210

大型拖挂车需要快速充气和放气以快速适应地形。Deublin的1/4英寸流路快速填充轮胎,减少了等待时间。Large tractor-trailers require fast tire inflation and deflation to adjust quickly to terrains. Deublin's 1/4" flow path quickly fills the tires reducing wait time.

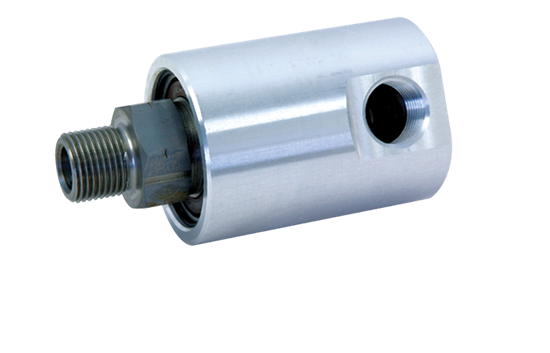

3/8" 尺寸1115 series系列旋转接头

Deublin的3/8“旋转活接头有助于在野外从拖拉机上去除气压,并在道路上驾驶拖拉机时增加气压。Deublin's 3/8" rotary unions assist in removing air pressure from tractors in the field and increasing air pressure when driving the tractor on the road.

Custom Solutions定制解决方案

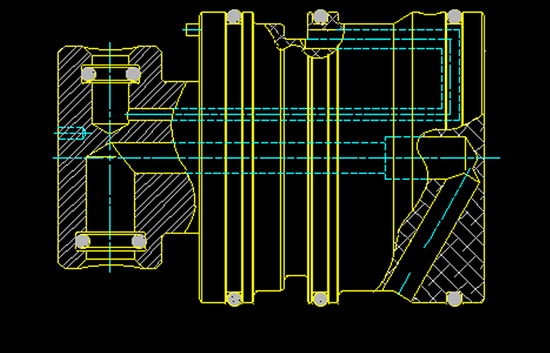

882-400旋转接头

Deublin设计了旋转活接头,以安装在车轴和轮毂内部,以在压力显着下降时输送空气。Deublin designs rotary unions to fit inside axles and hubs to deliver air when there is a significant loss in pressure.
