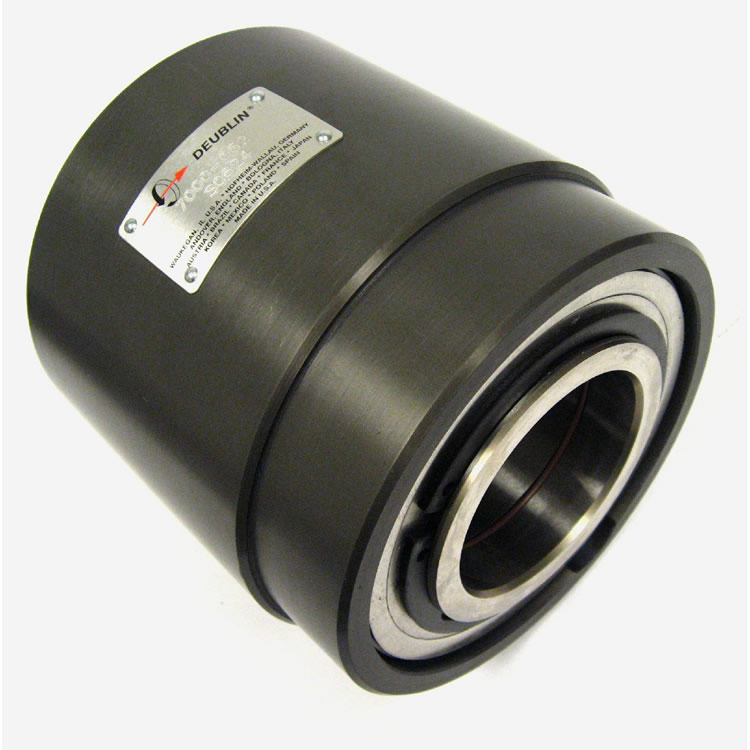

两通道气体旋转接头7000-052，适合55 mm轴 - DEUBLIN Around-The-Shaft Unions for Air Service
Union, 2-channel air, fits 55 mm shaft
Model/Series: 7000 Series for compressed air Rotating Unions

7000-052是转子转轴连接的气体旋转接头。气体压力150PSI,温度250 °F。适用于最大8“的轴，最大转速10000转。

DEUBLIN零件号 供应连接 转子连接 总长度 外壳直径 最大压力和介质 速度
7000-052 1/8“ -27 NPT 转轴 4.505“ 4.724英寸
150 PSI空气

DEUBLIN PART NUMBER SUPPLY CONNECTION ROTOR CONNECTION OVERALL LENGTH HOUSING DIAMETER MAXIMUM PRESSURE AND MEDIA SPEED
7000-052 1/8"-27 NPT Around-Shaft 4.505" 4.724"
150 PSI Air

- 单通道或多通道配置
Single or multi-passage configurations
- 可以将“受控泄漏”放空或引导到储层
"Controlled leakage" can be vented or channeled to reservoir
- 适用于最大8“的轴
Available for shafts up to 8"
- 能够处理高速和高压
Capable of handling high speed and pressure
- 为特定应用定制设计
Custom designed for specific application

DEUBLIN Around-The-Shaft Unions for Air Service

Operating Specifications

介质：Air空气
转子连接Rotor Connection：转轴Around-Shaft
Housing Connection：1/8“ -27 NPT
Air Pressure压力：150 psi
Air Temperature：250 °F
