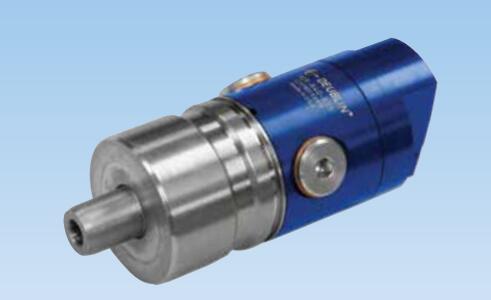

Deublin杜博林1109系列脱开壳体安装冷却液干运转应用旋接器
Deublin 1109 Series Pop-Off Bore-Mounted Rotating Unions for Coolant Service with Dry Running
性能特点：
- 单通道,冷却液或MQL
- 脱开M技术可实现没有介质压力下不受限制地干运转
- 拉杆行程可达19mm
- 全流通设计,不产生碎屑及毛刺堵塞
- 壳体安装设计,安装简便
- 配套sOP4级复合式滚珠轴承可保证高速平稳运转
- 采用迷宫式密封及大泄漏口保护滚珠轴承
- 平衡式机械密封,采用碳化硅材料,即使恶劣工作条件仍能延长使用寿命
- 防腐蚀阳极氧化铝及不锈钢部件120

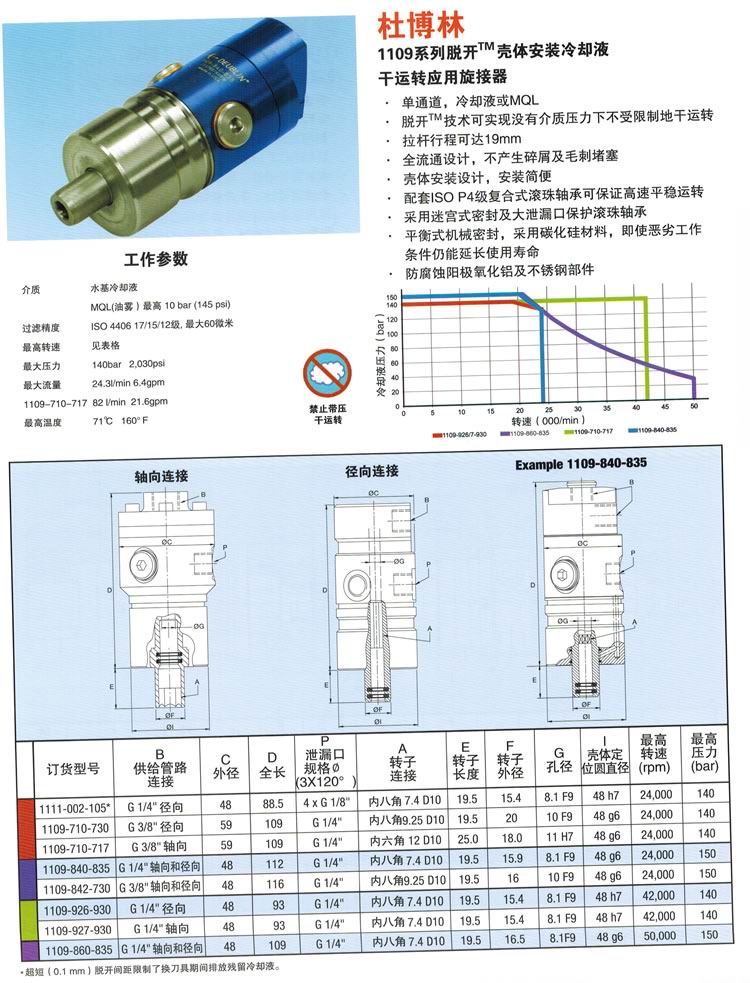

Deublin杜博林1109系列脱开壳体安装冷却液干运转应用旋接器
Deublin 1109 Series Pop-Off Bore-Mounted Rotating Unions for Coolant Service with Dry Running
工作参数：
介质 水基冷却液
MQL(油雾)最高 10bar(145ps)
过滤精度 so440617/15/12级,最大60微米
最高转速 见表格
最大压力 140bar 2,030psi
最大流量 24.3I/min 6. gpm
1109-710-71782|min21.6gpm
最高温度 71℃ 160°F
- 订货型号
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Overall Length |
P Drain Size (? 3 x 120°) |
A Rotor Connection |
E Rotor Length |
F Thread Length |
G Bore Diameter |
H Across Flats |
I Pilot Diameter |
M Pilot Length |
| 1109-021-188 |
G 3/8 Axial |
53 |
129 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1109-010-165 |
3/8 NPT Radial |
53 |
138 |
1/4 NPT |
5/8-18 UNF LH |
34 |
14 |
9 |
15/16" |
0.6555" / 0.6553" |
5 |
| 1109-020-188 |
G 3/8 Radial |
53 |
135 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1109-040-188 |
3/8 PT Radial |
53 |
135 |
1/4 PT |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1109-024-212 |
G 1/4 Axial |
53 |
129 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1109-023-212 |
G 1/4 Radial |
53 |
135 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Housing Length |
P Vent Size (? 3 x 120°) |
A Rotor Connection |
E Rotor Length |
F Rotor Overall Diameter |
G Bore Diameter |
I Pilot Diameter |
Maximum Speed (rpm) |
Max. Pressure (bar) |
| 1111-002-105* |
G 1/4 Radial |
48 |
88.5 |
4 x G 1/8 |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
24,000 |
140 |
| 1109-710-730 |
G 3/8 Radial |
59 |
109 |
G 1/4 |
Octagon 9.25 D10 |
19.5 |
20 |
10 F9 |
48 g6 |
24,000 |
140 |
| 1109-710-717 |
G 3/8 Axial |
59 |
109 |
G 1/4 |
Hexagon 12 D10 |
25 |
18 |
11 H7 |
48 g6 |
24,000 |
140 |
| 1109-840-835 |
G 1/4 Axial & Radial |
48 |
112 |
G 1/4 |
Octagon 7.4 D10 |
19.5 |
15.9 |
8.1 F9 |
48 g6 |
24,000 |
150 |
| 1109-842-730 |
G 3/8 Axial & Radial |
48 |
116 |
G 1/4 |
Octagon 9.25 D10 |
19.5 |
16 |
10 F9 |
48 g6 |
24,000 |
150 |
| 1109-926-930 |
G 1/4 Radial |
48 |
93 |
G 1/4 |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
42,000 |
140 |
| 1109-927-930 |
G 1/4 Axial |
48 |
93 |
G 1/4 |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
42,000 |
140 |
订货型号 供给管路|外径全长 规连接
1111-002-105 *G1/4"径向 48 88.5|4x
1109-710-730 G3/8"径向 59 109
1109-710-717 |G3/8"轴向
1109-840-835 G1/4"轴向和径向4812
1109-842-730 G3/8"轴向和径向48
1109-926-930 G1/4"径向 48 93 G
1109-927-930 G1/4"轴向 93 G
1109-860-835 | G1/4"轴向和径向48 109 G
型号1109-947-835
*超短(0.1mm)脱开间距限制了换刀具期间排放残留冷却液。
|
|
