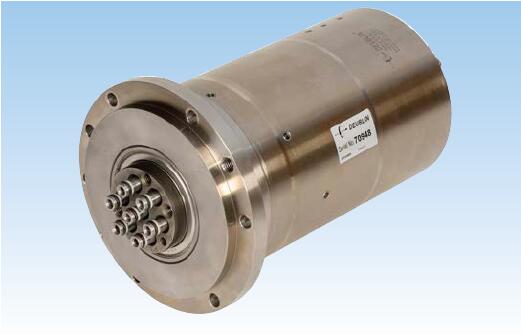

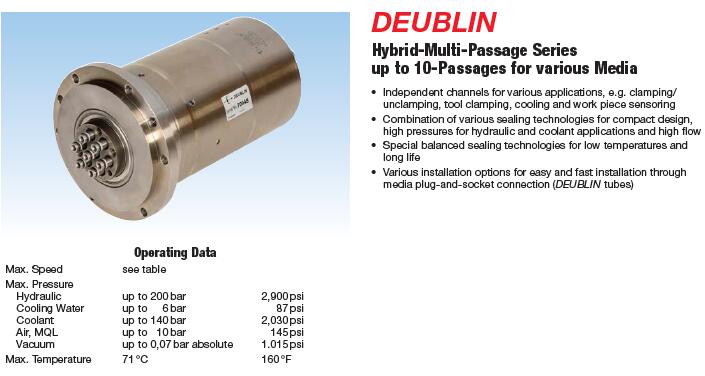

美国Deublin混合多通道系列,最多10个通道,适用于各种介质
DEUBLIN Hybrid Multi Passage Series up to 10-Passages for various Media



- 各种应用的独立通道,例如夹紧 / 松开、刀具夹紧、冷却和工件传感器
Independent channels for various applications, e.g. clamping/ unclamping, tool clamping, cooling and work piece sensoring

- 各种密封技术的组合,用于紧凑设计、液压和冷却剂应用的高压以及高流量
Combination of various sealing technologies for compact design, high pressures for hydraulic and coolant applications and high flow

- 低温长寿命专用平衡密封技术
Special balanced sealing technologies for low temperatures and long life

- 通过媒体插头和插座连接(DEUBLIN管)轻松快速安装的各种安装选项
Various installation options for easy and fast installation throughmedia plug-and-socket connection (DEUBLIN tubes)


Deublin Hybrid-Multi-Passage Series up to 10-Passages for various Media

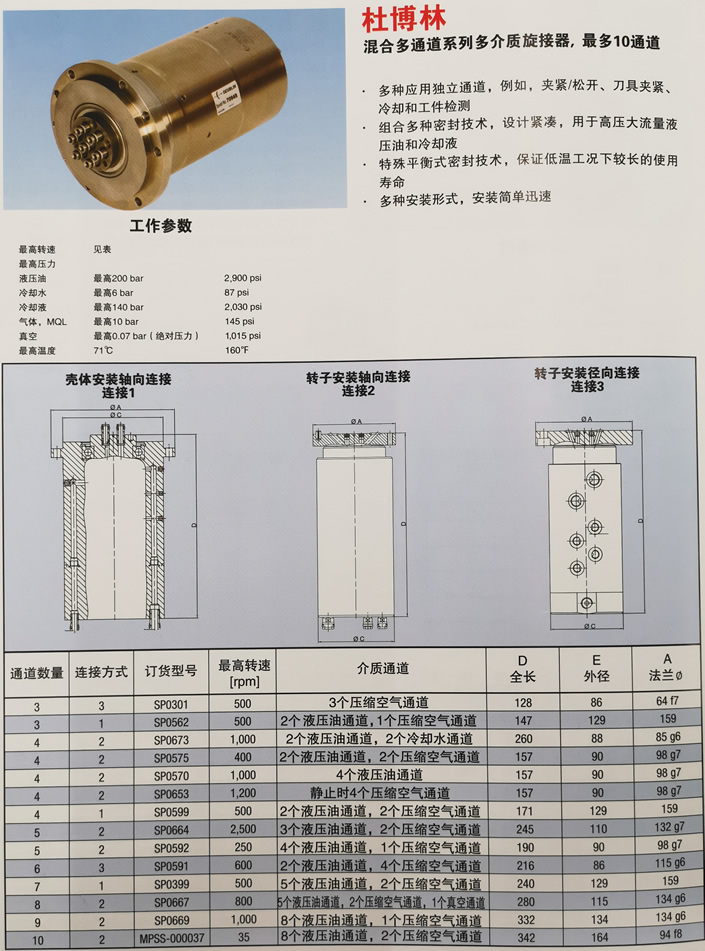

Deublin混合多通道系列,最多10个通道,适用于各种介质
产品技术资料下载

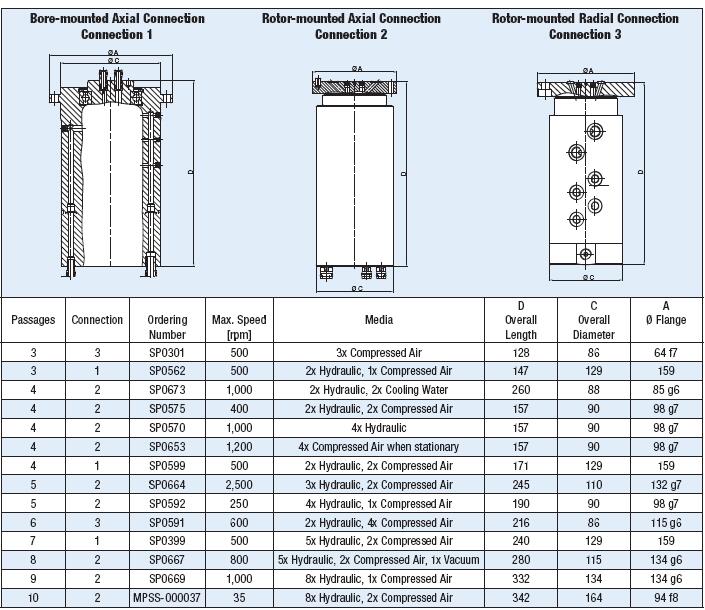

规格参数:



3 3 SP0301 500 3x Compressed Air 128 86 64 f7
3 1 SP0562 500 2x Hydraulic, 1x Compressed Air 147 129 159
4 2 SP0673 1,000 2x Hydraulic, 2x Cooling Water 260 88 85 g6
4 2 SP0575 400 2x Hydraulic, 2x Compressed Air 157 90 98 g7
4 2 SP0570 1,000 4x Hydraulic 157 90 98 g7
4 2 SP0653 1,200 4x Compressed Air when stationary 157 90 98 g7
4 1 SP0599 500 2x Hydraulic, 2x Compressed Air 171 129 159
5 2 SP0664 2,500 3x Hydraulic, 2x Compressed Air 245 110 132 g7
5 2 SP0592 250 4x Hydraulic, 1x Compressed Air 190 90 98 g7
6 3 SP0591 600 2x Hydraulic, 4x Compressed Air 216 86 115 g6
7 1 SP0399 500 5x Hydraulic, 2x Compressed Air 240 129 159
8 2 SP0667 800 5x Hydraulic, 2x Compressed Air, 1x Vacuum 280 115 134 g6
9 2 SP0669 1,000 8x Hydraulic, 1x Compressed Air 332 134 134 g6
10 2 MPSS-000037 35 8x Hydraulic, 2x Compressed Air 342 164 94 f8
